Detailed Specifications

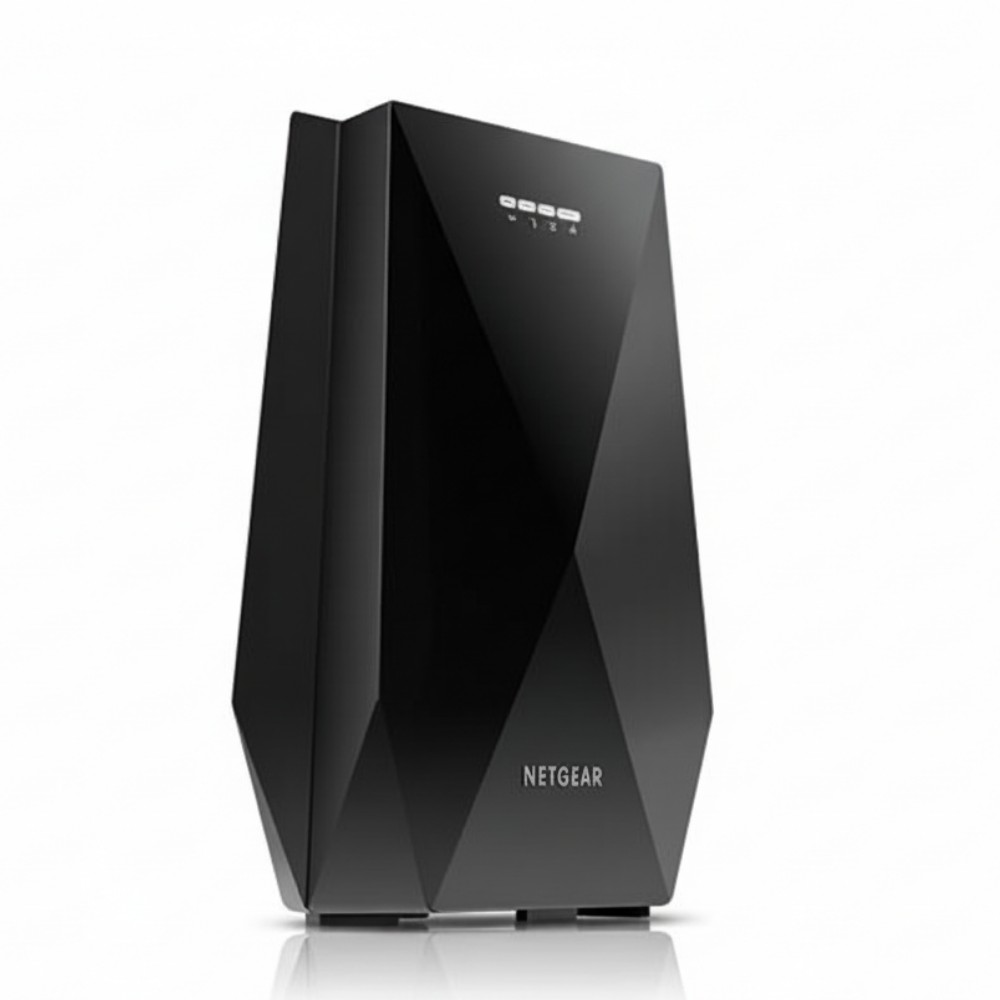

NETGEAR EX7700-100CNS - Nighthawk X6 AC2200 Mesh Extender
Overview
The NETGEAR EX7700-100CNS is a tri-band mesh WiFi range extender used to broaden the reach of 2.4 GHz and 5 GHz wireless networks. It offers dedicated backhaul on one 5 GHz band to preserve throughput for client devices. The device fits into home or small-office deployments where the router's coverage is insufficient. It supports seamless roaming (One WiFi Name) and is configured via the Nighthawk app or web interface.
Key Features
Tri-band AC2200 with FastLane3 dedicated backhaul
Two Gigabit Ethernet ports for wired endpoints
Support for One WiFi Name seamless roaming
MU-MIMO for simultaneous multi-device performance
| Attribute | Specification |
|---|
| Brand | NETGEAR |
| Part Number | EX7700-100CNS (Nighthawk X6 AC2200) |
| Product Type | Tri-band Mesh WiFi Extender |
| Wireless Standard | IEEE 802.11ac (WiFi 5) |
| Frequency Bands | 2.4 GHz (1×1), 5 GHz (2×2 + 2×2) |
| Maximum Wireless Speed | 2,200 Mbps combined (400 + 866 + 866 Mbps) |
| Ethernet Ports | 2 × 10/100/1000 Mbps RJ-45 |
| Coverage Area (typical) | ~2,000-2,300 sq ft (≈ 185-215 m²) |
| Device Support | Up to 45 concurrent devices |
| Security | WPA / WPA2-PSK, WEP |
| Dimensions (W × D × H) | 7.85 × 6.07 × 2.14 in (≈ 199 × 154 × 54 mm) |
| Weight | 1.17 lb (≈ 0.53 kg) |
| Operating Temperature | 0 °C to 40 °C |
| Setup Methods | - Nighthawk app, WPS, Web GUI
|
