Detailed Specifications
NETGEAR RBE773-100CNS - Tri-Band WiFi 7 Mesh System
Overview

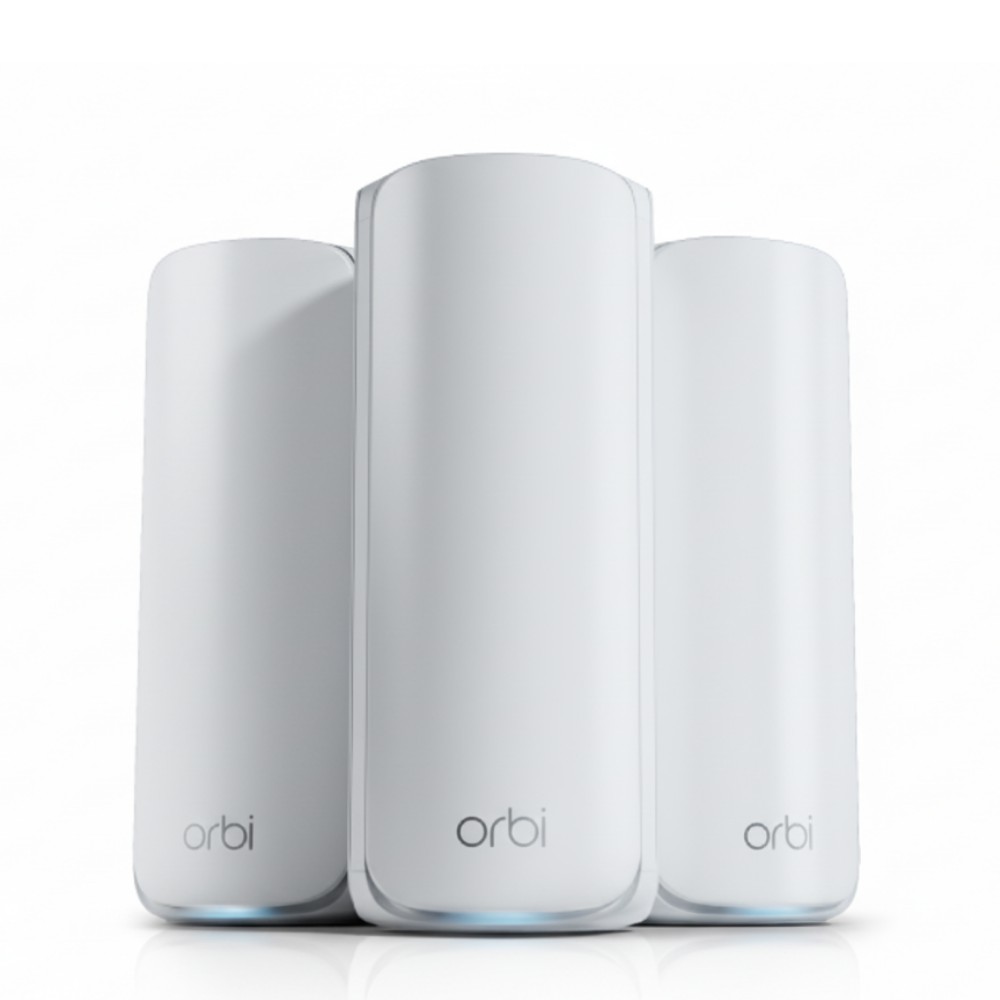

The NETGEAR RBE773-100CNS is a three-unit Orbi mesh WiFi 7 system (one router + two satellites) designed to deliver seamless high-speed wireless across larger homes. It supports IEEE 802.11be tri-band operation (2.4 GHz, 5 GHz, 6 GHz) with multi-link for combined throughput of up to 11 Gbps. The system is intended to cover up to ~8,000 ft² (under ideal conditions). It integrates with the Orbi mobile app for setup, network management, firmware updates, and security features.
Key Features
BE11000 class: 5,760 + 4,320 + 688 Mbps
Multi-link operation combining 5 GHz + 6 GHz
Multi-gig Ethernet ports (2.5 GbE)
Coverage up to ~8,000 ft² with three units
Technical Specifications
| Specification | Value |
|---|
| Brand | NETGEAR |
| Part Number | RBE773-100CNS |
| Product Type | Mesh WiFi 7 System (Router + 2 Satellites) |
| WiFi Standard | IEEE 802.11be (WiFi 7) |
| Aggregated Maximum Throughput | 11,000 Mbps (5,760 + 4,320 + 688) |
| Frequency Bands | 2.4 GHz, 5 GHz, 6 GHz |
| Router Ethernet Ports | 1 × Multi-Gig WAN + 3 × Multi-Gig LAN (2.5 GbE) |
| Satellite Ethernet Ports | 2 × Multi-Gig LAN (2.5 GbE each) |
| Processor (Router) | Quad-core 1.5 GHz |
| Memory (Router) | 4 GB flash / 2 GB RAM |
| Backhaul | Shared 5 GHz + 6 GHz (multi-link) |
| Coverage (system) | Up to 8,000 ft² |
| Antennas | Internal for router & satellites |
| Security | WPA3 |
| Dimensions (each unit) | 251.2 × 134.2 × 100.4 mm |
| Weight (each unit) | 0.916 kg |
