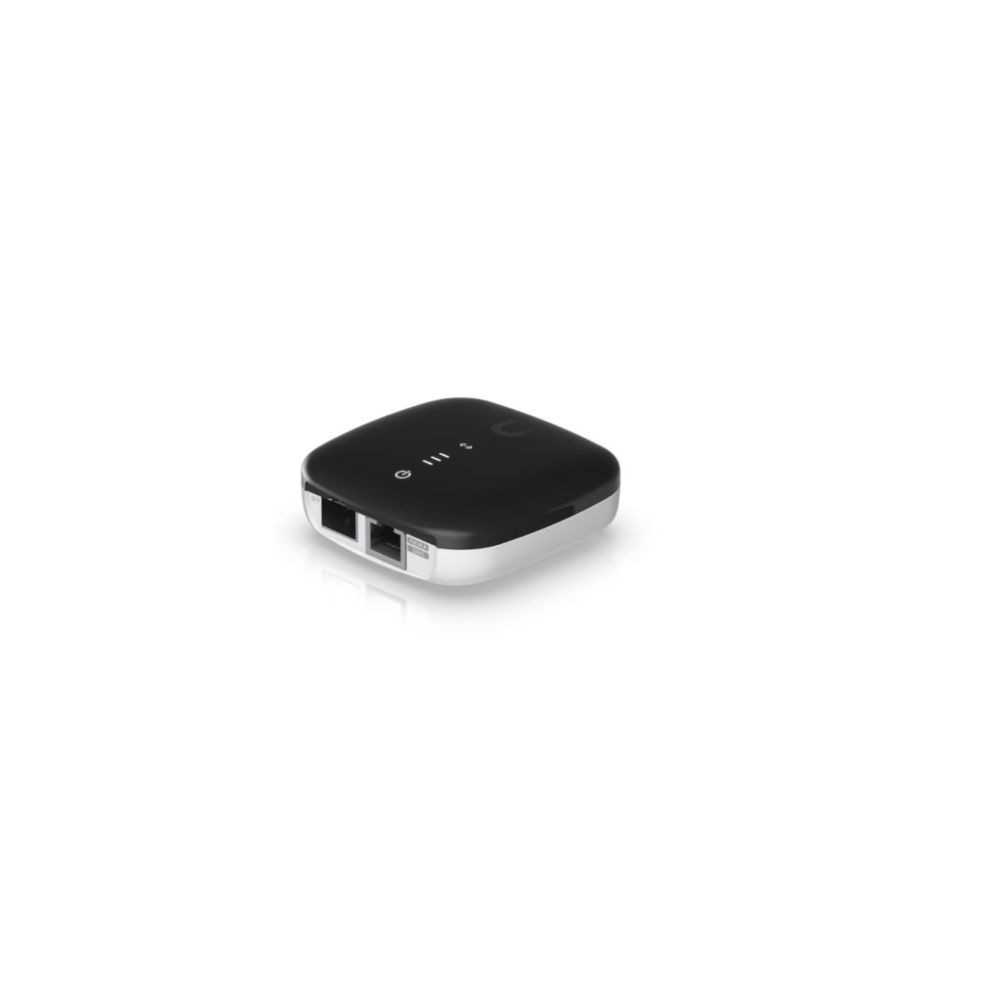

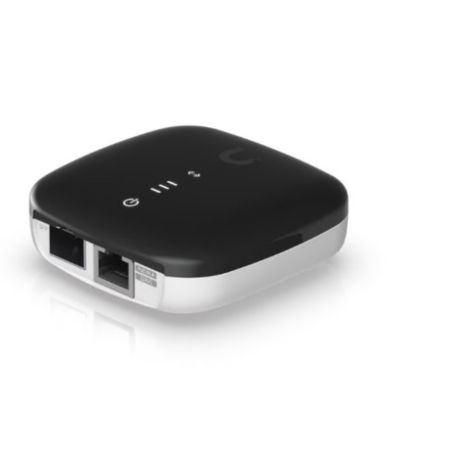

Ubiquiti UACC-AE UFiber Active Ethernet Fiber-to-Ethernet Media Converter
Overview
The Ubiquiti UACC-AE is a fiber-to-copper media converter that bridges the gap between fiber optic uplinks and standard copper Ethernet equipment. It allows devices without SFP ports—such as wireless radios, access points, and SOHO network gear—to connect to fiber infrastructure at speeds up to 1 Gbps [citation:1][citation:7].
The converter is designed for indoor deployment and features a compact form factor that can be discreetly integrated into home or office environments. A wall-mount bracket is included for flexible installation [citation:7][citation:9].
Fiber-to-Ethernet Conversion
The UACC-AE provides one 1 Gbps SFP port for fiber connectivity and one Gigabit Ethernet RJ45 port for copper network devices [citation:1][citation:8]. It supports all UFiber SFP and SFP+ modules at a maximum speed of 1 Gbps, enabling data transport over long distances while reducing electromagnetic interference compared to copper cabling [citation:7].
The device supports 10/100/1000 Mbps Ethernet speeds on the RJ45 port, ensuring compatibility with a wide range of network equipment [citation:7][citation:9].
Power and Deployment
The UACC-AE can be powered through either 24V passive PoE or standard IEEE 802.3af active PoE [citation:6][citation:7]. When connected to a PoE switch or injector, the converter draws power directly from the Ethernet connection, eliminating the need for a separate power supply at the installation point. The supported voltage range is 16–57V, providing flexibility across different PoE sources [citation:1][citation:16].
Key Features
- Converts fiber uplinks to copper Ethernet at speeds up to 1 Gbps [citation:1]
- Supports all UFiber SFP and SFP+ modules with maximum 1 Gbps throughput [citation:7]
- Dual power options: 24V passive PoE or 802.3af active PoE [citation:6]
- Compact 76.5 × 76.5 × 26.8 mm UV-stabilized polycarbonate enclosure [citation:1]
- Wall-mount bracket included for flexible installation [citation:9]
Applications
The UACC-AE is suited for ISP deployments where fiber is delivered to customer premises and existing network equipment lacks SFP ports. It enables fiber-to-Ethernet conversion for wireless equipment, allowing fiber connectivity to any PoE device [citation:1].
Typical use cases include connecting SOHO routers or access points to fiber backbones, extending network reach beyond 100-meter copper limitations, and integrating fiber uplinks into existing copper-based networks without replacing hardware [citation:7].
DC Supplies Product Note
The UACC-AE is a media converter only—SFP modules and power supplies are not included and must be purchased separately [citation:6][citation:9]. The unit requires either a PoE switch or PoE injector to provide power. When using 24V passive PoE, verify that your power source matches the pinout configuration (Pins 4, 5+; 7, 8-) to avoid compatibility issues [citation:8][citation:16].
Specifications
| Brand | Ubiquiti |
| Part Number / MPN | UACC-AE |
| Product Type | Fiber-to-Ethernet Media Converter |
| Networking Interface | (1) 1 Gbps SFP Port, (1) GbE RJ45 Port [citation:1] |
| Data Throughput | Up to 1 Gbps [citation:5] |
| Power Method | 802.3af PoE (Pins 1, 2+; 3, 6-) or 24V Passive PoE (Pins 4, 5+; 7, 8-) [citation:8] |
| Supported Voltage Range | 16–57V [citation:1] |
| Max. Power Consumption | 1.5W [citation:1] |
| LEDs | Status, Ethernet [citation:1] |
| Dimensions | 76.5 × 76.5 × 26.8 mm (3 × 3 × 1") [citation:1] |
| Weight | 70 g (2.4 oz) [citation:1] |
| Enclosure Material | UV-stabilized polycarbonate [citation:1] |
| Operating Temperature | -40 to 60°C (-40 to 140°F) [citation:1] |
| Operating Humidity | 10 to 90% noncondensing [citation:1] |
| ESD/EMP Protection | ±12kV Contact/Air [citation:9] |
| Certifications | CE, FCC, IC [citation:1] |
| NDAA Compliant | Yes [citation:1] |
| EAN | 817882024860 [citation:5] |
FAQs
Does the UACC-AE include an SFP module or power supply?
No. SFP modules and power supplies are not included. The converter requires an SFP module for fiber connectivity and a PoE source (switch or injector) for power [citation:6][citation:9].
Can I power the UACC-AE with a standard PoE switch?
Yes. The device supports both 802.3af active PoE and 24V passive PoE. A standard PoE switch can provide power over the Ethernet connection [citation:6][citation:7].
What SFP modules are compatible?
All UFiber SFP and SFP+ modules are supported at a maximum speed of 1 Gbps. The SFP port accepts standard 1G SFP modules [citation:7].
Can the UACC-AE be mounted on a wall?
Yes. A wall-mount bracket is included with the unit for flexible installation [citation:9].
