Detailed Specifications

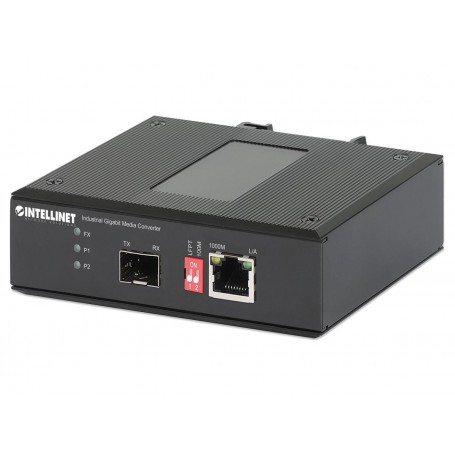

INTELLINET 508971 - Industrial Gigabit Media Converter
Overview
The INTELLINET 508971 is an unmanaged industrial Gigabit Ethernet media converter designed to seamlessly bridge copper RJ45 network cabling to optical fiber connections in harsh operating environments.Equipped with one 10/100/1000 Mbps RJ45 port and one SFP transceiver slot, it enables transparent network expansion between long-distance workgroups, building-to-building links, or IoT/Industry 4.0 infrastructure without requiring additional core routers.
Housed in an IP40-rated slim-type metal enclosure, the converter operates reliably across extreme temperatures ranging from -40°C to 85°C (-40°F to 185°F).It features dual redundant DC power inputs with a terminal block connector, standard DIN-rail mounting capability, and heavy-duty shock, freefall, and vibration resistance.
Designed for harsh commercial, outdoor cabinet, and industrial automation environments.It is incompatible with managed network topologies requiring Layer 2/3 traffic control, integrated Power over Ethernet (PoE) sourcing, or environments lacking a compatible external 12-56 VDC industrial power supply.
Key Features
Converts 10/100/1000Base-TX copper signals to 1000Base-X fiber via SFP slot.
IP40-rated hardened metal casing built for extreme industrial conditions.
Supports wide operating temperature range from -40°C to 85°C (-40°F to 185°F).
Dual redundant DC power inputs (12-56V) with terminal block interface.
Standard DIN-rail mountable with fanless design for silent, reliable operation.
Specifications
| Spec Field | Verified Specification |
| Brand | INTELLINET |
| Part Number | 508971 |
| Product Type | Industrial Gigabit Media Converter |
| Copper RJ45 Port | 1 x 10/100/1000 Mbps Auto-MDIX (up to 100 m / 300 ft) |
| Fiber Optical Port | 1 x 1000Base-X SFP Slot (Module not included) |
| Transmission Distance | Up to 120 km / 75 miles (dependent on SFP module used) |
| Power Inputs | Redundant Dual DC Inputs (12.0 - 56.0 V DC) via Terminal Block |
| MAC Address Table | 8k Entries (Auto-Learning and Auto-Aging) |
| Packet Buffer Memory | 1 MByte |
| Jumbo Frame Support | Up to 10 kBytes |
| Housing & Ingress Protection | IP40 Slim Metal Enclosure, Fanless |
| Mounting Options | DIN-Rail (IEC/EN 60715 top hat) |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Industrial Ratings | Shock (IEC 60068-2-27), Freefall (IEC 60068-2-32), Vibration (IEC 60068-2-6) |
| Compliance & Certifications | FCC, CE, UKCA, RoHS, REACH, NDAA |
