Detailed Specifications

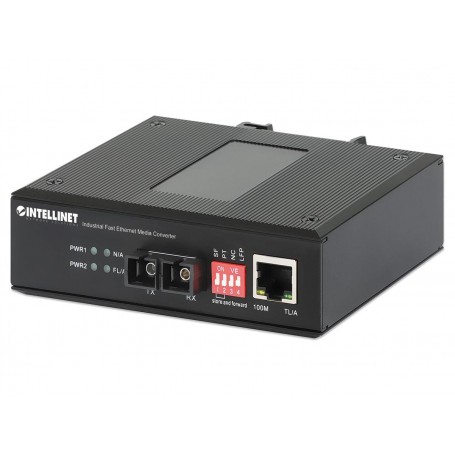

Intellinet 508964 Industrial Fast Ethernet Media Converter
Overview
Intellinet 508964 is an industrial Fast Ethernet media converter designed to extend Ethernet networks by converting copper-based 10/100Base-TX connections to 100Base-FX multimode fiber. It is used in industrial networks, edge deployments, automation systems, and environments requiring longer-distance fiber connectivity.
The converter provides one RJ45 copper port and one SC multimode fiber port, supporting up to 100 m copper transmission and up to 2 km fiber transmission. It enables network expansion between remote equipment, buildings, and industrial locations without adding additional routing hardware.
Built with an IP40-rated metal housing, DIN-rail mounting capability, redundant 12-56 VDC power inputs, and industrial temperature support from -40°C to 85°C, the unit is designed for harsh deployment environments.
Suitable for industrial Ethernet and fiber conversion applications requiring Fast Ethernet speeds. It is not intended for Gigabit Ethernet deployments or applications requiring higher fiber bandwidth.
Key Features
- Converts 10/100 Ethernet copper to multimode fiber
- Supports SC fiber links up to 2 km distance
- IP40 metal housing supports industrial environments
- DIN-rail mounting enables cabinet deployment
- Redundant DC inputs improve power reliability
Specifications
| Specification | Details |
|---|
| Brand | Intellinet |
| Part Number | 508964 |
| Product Type | Industrial Fast Ethernet Media Converter |
| Copper Interface | 1 x RJ45 10/100Base-TX |
| Fiber Interface | 1 x SC 100Base-FX Multimode |
| Fiber Distance | Up to 2 km |
| Copper Distance | Up to 100 m |
| Fiber Wavelength | 1310 nm |
| Fiber Type | Multimode 62.5/125 µm or 50/125 µm |
| Power Input | 12-56 VDC |
| Mounting | DIN-rail mount |
| Housing Protection | IP40 metal enclosure |
| Operating Temperature | -40°C to 85°C |
| MAC Address Table | 2K entries |
| Buffer Memory | 1 MB |
