Detailed Specifications

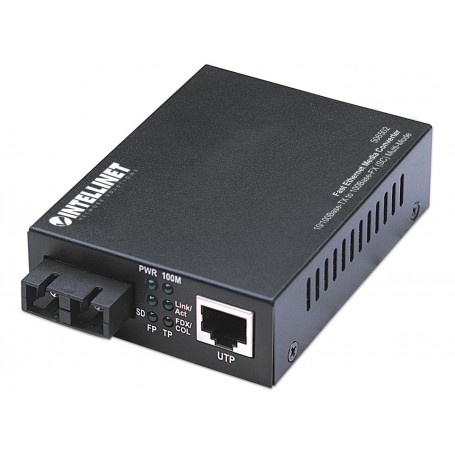

INTELLINET 506502 - Fast Ethernet Media Converter
Overview :
The INTELLINET 506502 Fast Ethernet Media Converter integrates copper-based Fast Ethernet infrastructure with fiber-optic network links. Designed for network engineers, IT infrastructure specialists, and system integrators, it enables seamless network distance expansion while maintaining established copper switches and routers.
Equipped with one 10/100Base-TX RJ45 copper port and one 100Base-FX multi-mode SC duplex fiber port, this unit converts electrical signals to optical signals across a 1310 nm wavelength. It delivers full 100 Mbps throughput over multi-mode optical cable up to 2 km (1.24 miles), bypassing the standard 100-meter limit of RJ45 copper runs. The copper port features auto-negotiation and Auto MDI/MDI-X configuration to eliminate crossover cable requirements.
Housed in a compact metal enclosure, the converter operates as a standalone desktop or wall-mounted device and can also be integrated into a 14-slot rack-mountable chassis (model 507356) for organized high-density deployments. It is ideal for inter-building connectivity, campus links, industrial edge spaces, and extending network drops to remote workgroups. Do not use for Single-Mode fiber connections, Gigabit 1000Base-T circuits, or Power over Ethernet (PoE) delivery.
Key Features :
Converts 10/100Base-TX copper to 100Base-FX fiber.
Extends Fast Ethernet connections up to 2 km via SC.
Supports multi-mode 62.5/125 and 50/125 µm optical cable.
Operates standalone or fits 14-slot rack mount chassis.
Auto MDI/MDI-X support simplifies copper connections.
Specifications :
| Attribute | Specification |
| Brand | INTELLINET |
| Part Number | 506502 |
| Product Type | Fast Ethernet Media Converter |
| Data Rate | 100 Mbps |
| Copper Port | 1x 10/100Base-TX RJ45 (Auto MDI/MDI-X) |
| Fiber Port | 1x 100Base-FX Multi-Mode SC Duplex |
| Optical Wavelength | 1310 nm |
| Fiber Transmission Distance | Up to 2 km (1.24 mi) |
| Supported Cable Types | 62.5/125 µm and 50/125 µm Multi-Mode Fiber |
| Power Input | External power adapter, 5 V DC, 1 A |
| Power Consumption | 2.5 Watts (Maximum) |
| Housing Material | Metal Enclosure |
| Form Factor | Desktop / Wall-mount / Chassis-compatible |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Standards Compliance | IEEE 802.3, IEEE 802.3u, NDAA |
