Detailed Specifications

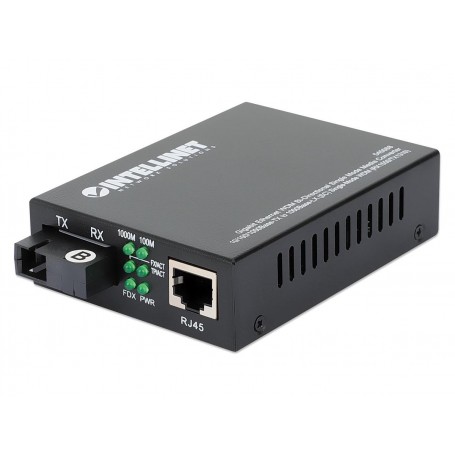

Intellinet 545068 - Gigabit Ethernet WDM Media Converter
Overview:
The Intellinet 545068 is a Gigabit Ethernet WDM (Wavelength Division Multiplexing) media converter that converts 10/100/1000Base-TX copper to 1000Base-LX fiber over a single strand of single-mode fiber . It is used by network engineers to extend Gigabit Ethernet networks up to 20 kilometers (12.4 miles) without installing a second fiber cable .
The converter uses WDM technology to transmit and receive on separate wavelengths (RX: 1550nm, TX: 1310nm) over a single fiber strand, effectively doubling existing fiber capacity or enabling use of simplex cables . It is transparent to network performance while adding copper-to-fiber media support.
Deployment is flexible as a standalone desktop/wall-mount unit or in a 14-slot media converter chassis (model 507356) . This unit is not suitable for multi-mode fiber and must be paired with matching WDM converter model 545075 at the other end of the link, which uses opposite transmit/receive wavelengths .
Key Features:
10/100/1000Base-TX to 1000Base-LX conversion over single fiber
SC single-mode fiber port supports up to 20 km distance
WDM technology with RX 1550nm / TX 1310nm wavelengths
Auto MDI/MDI-X RJ45 port for plug-and-play copper connectivity
Standalone, wall-mount, or rack-mountable in 14-slot chassis
Specifications:
| Specification | Value |
|---|
| Brand | Intellinet |
| Part Number | 545068 |
| Product Type | Gigabit Ethernet Media Converter |
| Copper Port | 1 x RJ45 10/100/1000Base-TX (Cat5e or better) |
| Fiber Port | 1 x SC, 1000Base-LX single-mode |
| Fiber Type | Single-mode (8.3/125, 8.7/125, 8/125, 10/125 µm) |
| Wavelengths | RX: 1550 nm, TX: 1310 nm |
| Max Fiber Distance | 20 km (12.4 mi.) |
| Max Copper Distance | 100 m (328 ft.) |
| Data Rate | 10/100/1000 Mbps (auto-negotiation) |
| Standards | IEEE 802.3, 802.3ab, 802.3u, 802.3z |
| Power | External 5 VDC adapter |
| Power Consumption | 5 W (max) |
| Jumbo Frames | Up to 9 kBytes |
| Operating Temp. | 0°C to 50°C |
| MTBF | 100,000 hours |
| Certifications | FCC Class A, CE, NDAA-compliant, RoHS |
