Detailed Specifications

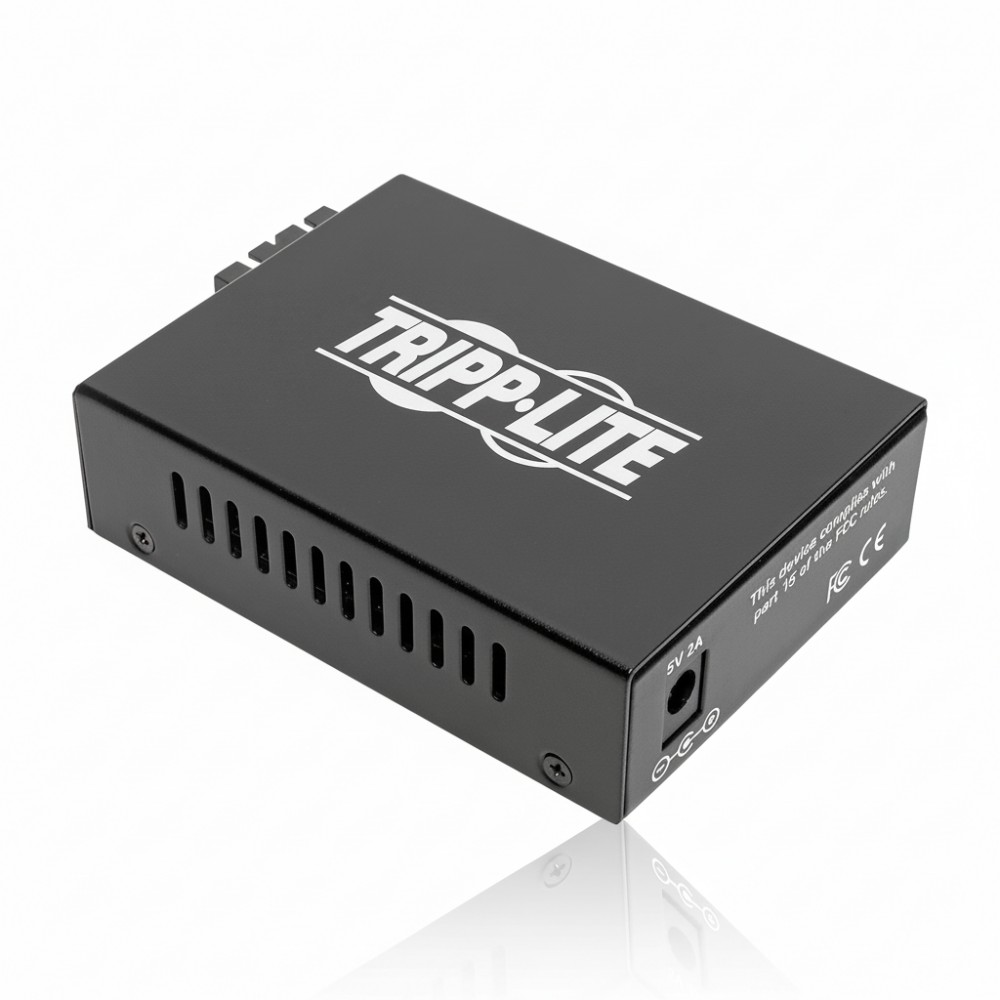

Eaton Tripp Lite N785-INT-SC-SM - Media Converter, Single-mode
Overview :
The Eaton Tripp Lite N785-INT-SC-SM is a media converter that enables networks to convert 10/100/1000 Mbps copper Ethernet to single-mode fiber and extend the link up to 20 km. It supports a single-mode SC fiber interface operating at 1310 nm wavelength and is used where long-distance campus or data-center links must traverse building to building or remote locations. The unit is suited for deployment in edge, campus or data-center environments and uses an international power supply for global use.
Key Features :
Converts 10/100/1000 Mbps RJ-45 copper to SC single-mode fiber link
Supports up to 20 km (12.4 mi) extension over 1310 nm single-mode fiber
Auto-MDI/MDI-X on RJ-45 and auto-speed/duplex detection
International AC adapter with multi-plug support (NA/UK/EU/AU)
Specifications
| Specification | Detail |
|---|
| Brand | Eaton (Tripp Lite) |
| Part Number | N785-INT-SC-SM |
| Product Type | Media converter - fiber to Ethernet |
| Copper Ethernet Port | 1 × RJ-45 female, 10/100/1000 Mbps |
| Fiber Port | 1 × SC female, single-mode |
| Wavelength | 1310 nm |
| Maximum Link Distance | Up to 20 km (12.4 mi) over single-mode fiber |
| Power Supply Input | 100-240 V AC, 50/60 Hz (international adapter) |
| Power Supply Output | 5 V DC, 2 A |
| Duplex/Speed Support | Auto-sensing full/half-duplex and 10/100/1000 speeds |
| Auto-MDI/MDI-X | Yes |
| LED Indicators | Six LEDs for link and status monitoring |
| Operating Temperature | 0 °C to 50 °C |
| Connectors Included | AC adapter with NA/UK/EU/AU plugs |
| Compliance | RoHS compliant |
