Detailed Specifications

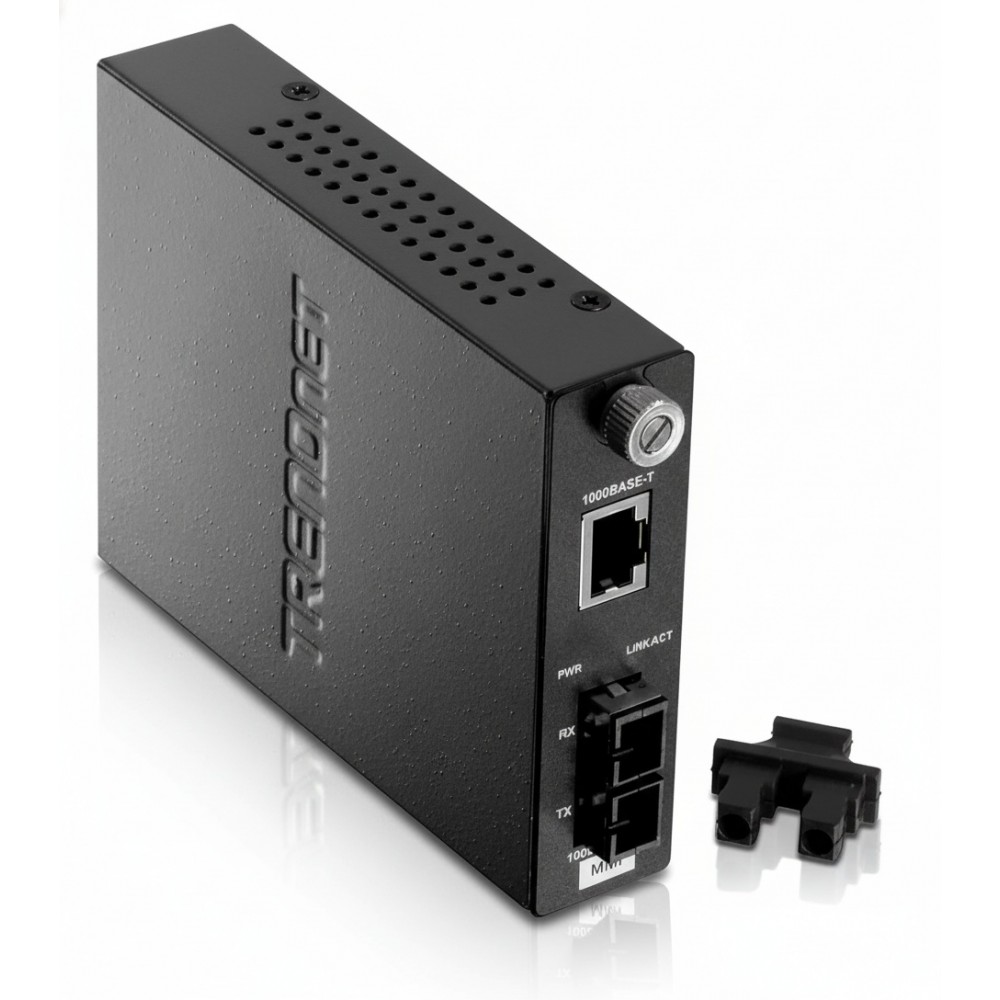

TRENDnet TFC-1000S20 - 1 Gb/s Fiber Converter
Overview :
The TRENDnet TFC-1000S20 is a fiber media converter that bridges copper and single-mode fiber networks. It's designed for technical environments where you need to extend gigabit Ethernet over long distances. On the copper side, it uses a 1000Base-T RJ-45 port with full-duplex operation, while the fiber side uses a 1000Base-LX SC-type connector supporting up to 20 km of single-mode link. The device supports port-level SNMP management, including settings for link-loss behavior and duplex mode via a dip switch or optional chassis. You can mount it on a wall or use it inside a 16-slot 19″ rack chassis (TFC-1600), which is useful for dense media-converter deployments. Its compact size and low power make it suitable for data-center edge, campus extension, or remote sites where fiber reach is critical.
Key Features
Converts 1 Gb copper to SMF up to 20 km
Supports SNMP and link-loss configuration
SC-type single-mode fiber port
Dip-switch for auto-negotiation & LLR
Wall-mountable or chassis deployable
Specification :
| Specification | Value |
|---|
| Brand | TRENDnet |
| Part Number | TFC-1000S20 |
| Product Type | Gigabit Fiber Media Converter |
| Supported Standards | IEEE 802.3ab (1000Base-T), IEEE 802.3z (1000Base-LX) |
| Ports | 1 × RJ-45 (1000Base-T), 1 × SC (1000Base-LX) |
| Maximum Data Rate | 2000 Mbps (full-duplex) |
| Fiber Type / Mode | Single-mode (SMF) |
| Maximum Link Distance | Up to 20,000 m / 20 km (single-mode) |
| Wavelength | 1310 nm |
| Optical Power Budget | ~11.5 dB |
| LED Indicators | Power, Link/Activity, Full-Duplex, Speed |
| Power Supply | External adapter (100-240 V AC) |
| Power Consumption | 2.7 W (typical) |
| Dimensions (W × D × H) | 4.7 × 3.46 × 0.98 in (120 × 88 × 25 mm) |
| Weight | 0.78 lb (354 g) |
| Operating Temperature | 0 °C to 40 °C (32-104 °F) |
| Storage Temperature | -25 °C to 70 °C (-13-158 °F) |
| Certifications | FCC, CE |
| Chassis Support | Optional 16-slot 19″ chassis: TFC-1600 |
