Detailed Specifications

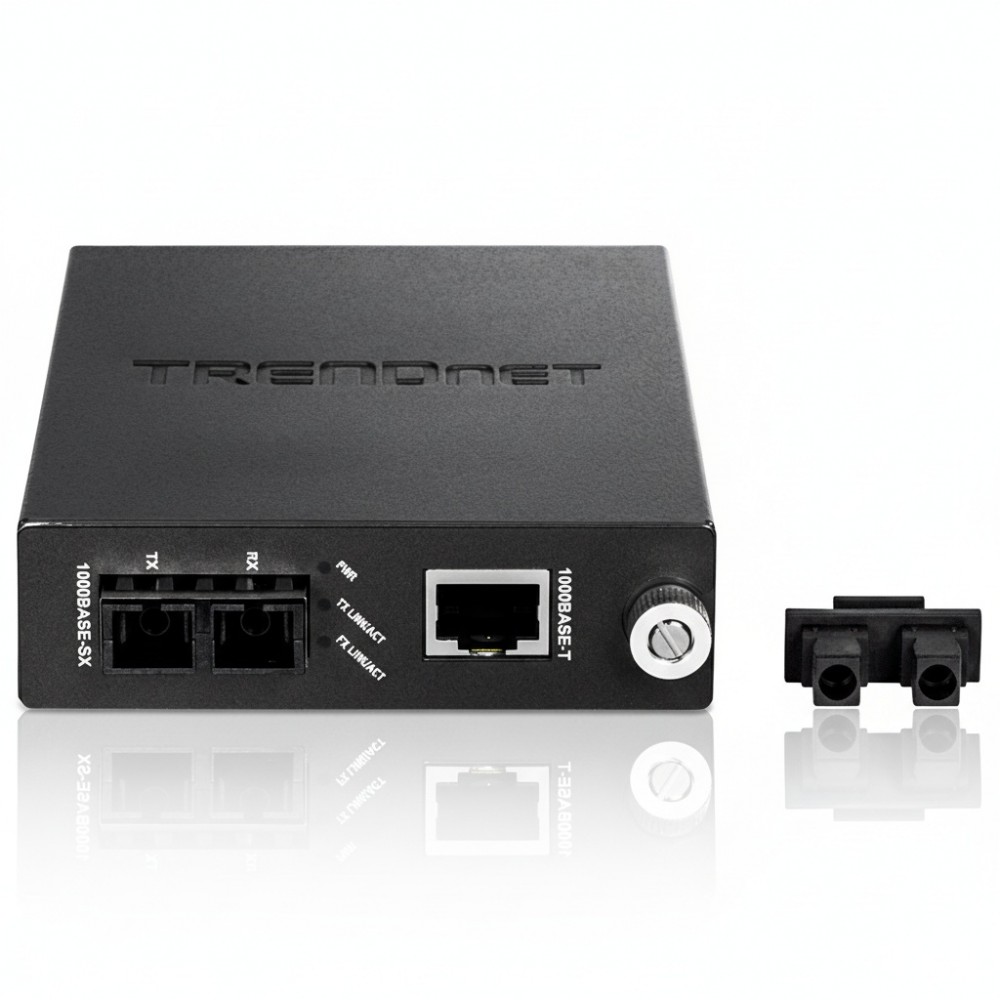

TRENDnet TFC-1000MSC - Media Converter / Fiber-to-Copper
Overview :
The TRENDnet TFC-1000MSC is a compact media converter designed for environments where Gigabit copper (RJ-45) needs to be linked with multi-mode fiber (SC). It enables network engineers to extend Gigabit Ethernet connections up to 550 meters over 50/125 µm multi-mode fiber, making it useful for campus wiring, telecom closets, or small-data-center interconnects. It can operate as a standalone unit or be mounted into a 16-slot TRENDnet TFC-1600 chassis, giving flexibility in deployment. The converter supports SNMP when used in the chassis, allowing for remote monitoring of port status, link-up / link-down, and link-loss behavior (LLCF / LLR). Its wall-mountable metal housing and LED diagnostics for power, copper link, fiber link, and activity simplify installation and troubleshooting.
Key Features
Gigabit copper and SC multi-mode fiber port
2 Gbps internal switching capacity
Supports SNMP via TFC-1600MM / chassis
Link-Loss Carry-Forward (LLCF) and LLR support
Wall-mountable metal converter unit
Specification :
| Specification | Value |
|---|
| Brand | TRENDnet |
| Part Number | TFC-1000MSC |
| Product Type | Gigabit Media Converter |
| Standard Compliance | IEEE 802.3ab (1000Base-T), IEEE 802.3z (1000Base-SX), IEEE 802.3x |
| Data Transfer Rate | 2000 Mbps (full-duplex) |
| Ports | 1 × 1000Base-T (RJ-45), 1 × 1000Base-SX SC (multi-mode) |
| Network Media | Cat-5e/6 (up to 100 m), 50/125 µm multi-mode fiber (up to 550 m) |
| Wavelength | 850 nm |
| Optical Output Power | -9.5 dBm (min) to -4 dBm (max) |
| Optical Input Power | -18 dBm (sensitivity min) to 0 dBm (max) |
| Power Budget | 8.5 dBm |
| Power Input | 100-240 V AC → 5 V DC, 1 A adapter |
| Power Consumption | ~2.7 W (max) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Storage Temperature | -25 °C to 70 °C (-13 °F to 158 °F) |
| Humidity | Up to 90% non-condensing |
| Dimensions | 4.72 × 3.46 × 0.98 in (120 × 88 × 25 mm) |
| Weight | 0.78 lb (354 g) |
| Warranty | 3-year limited |
