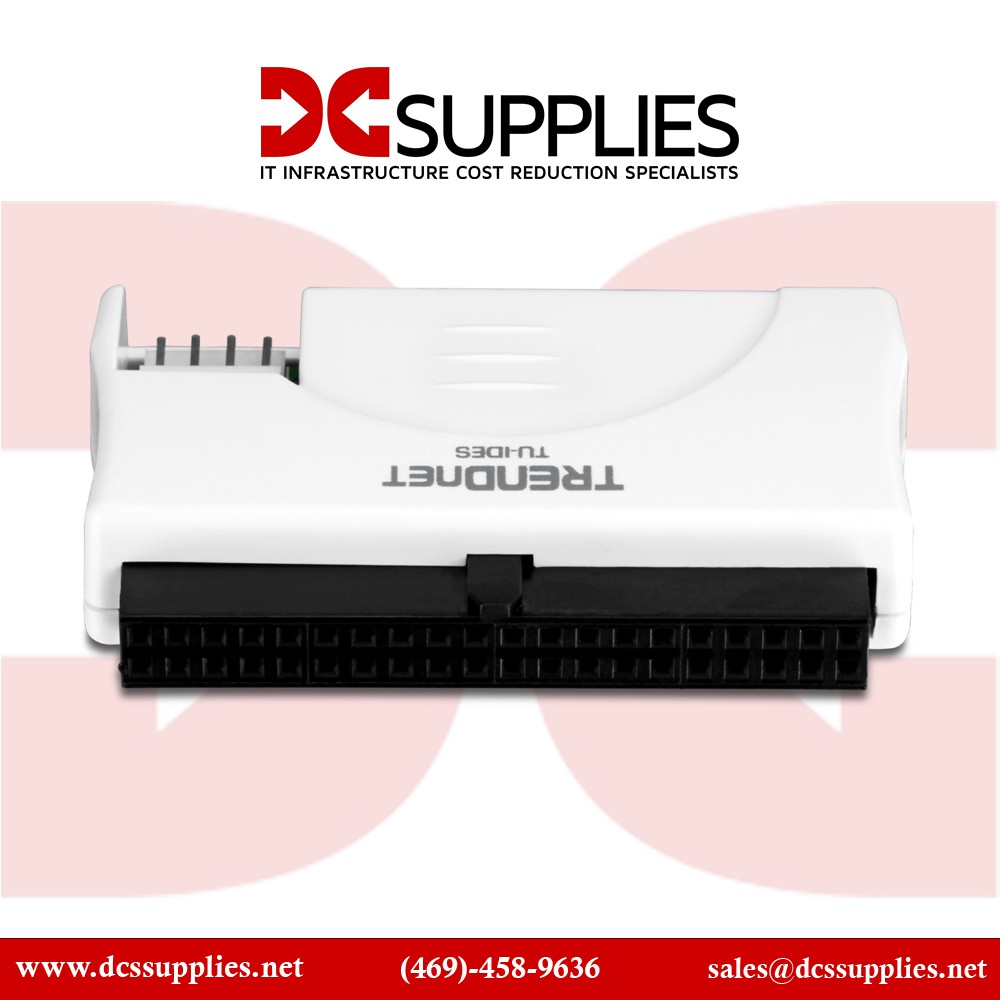

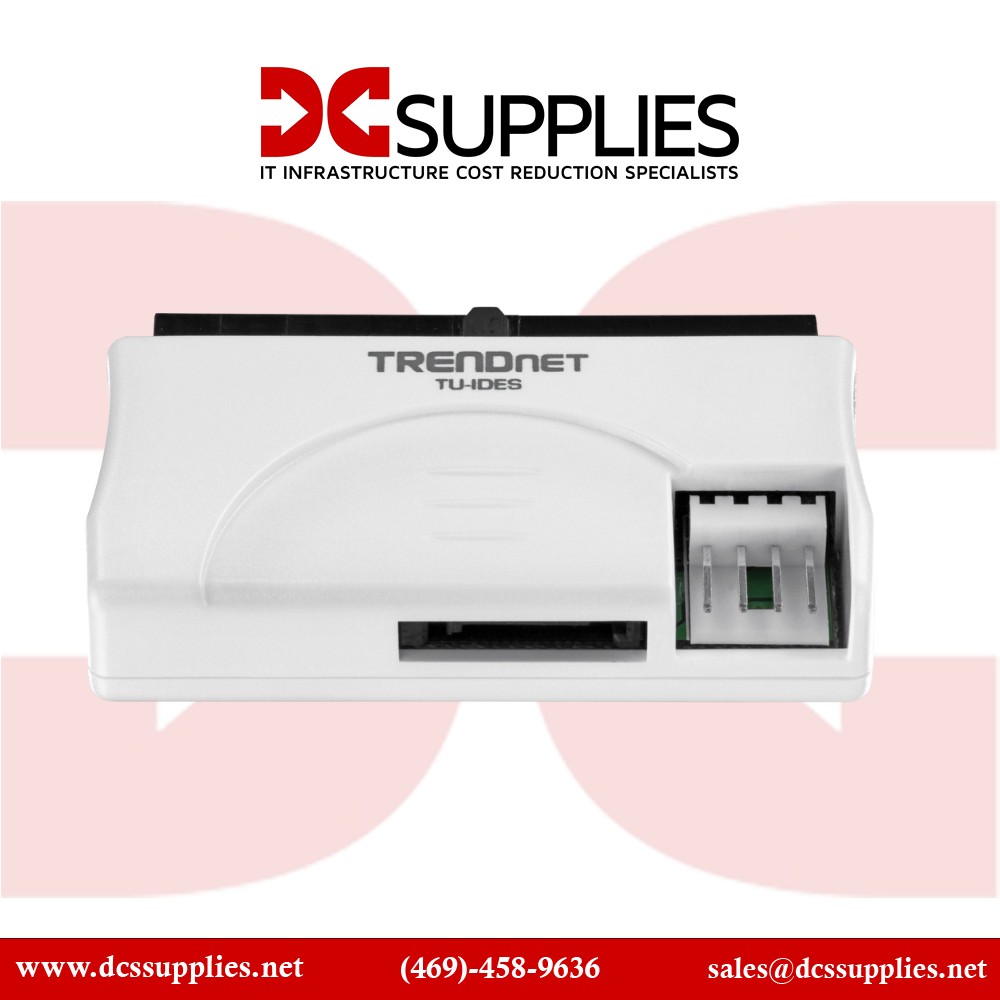

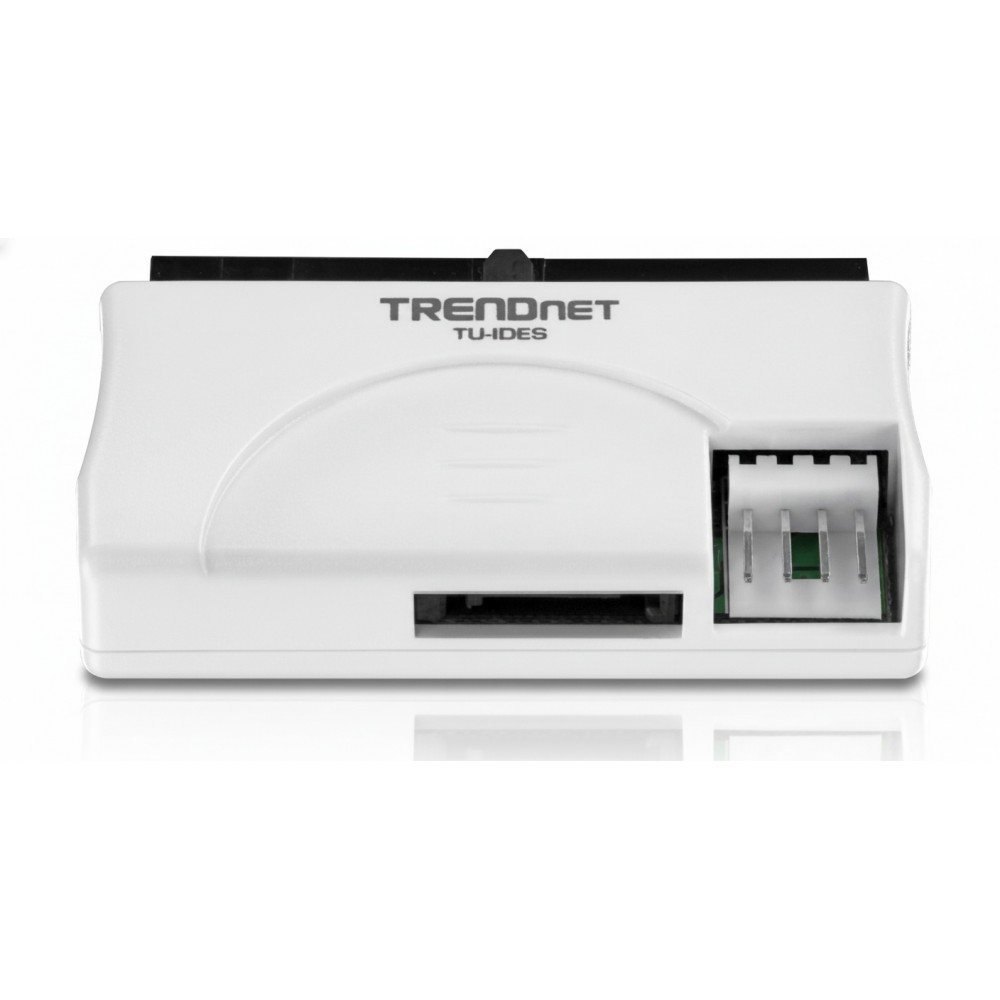

TRENDnet TU-IDES IDE Device to Serial ATA Converter View larger

TRENDnet TU-IDES IDE Device to Serial ATA Converter

New

IDE to SATA adapter for legacy drives
×




  • New

Detailed Specifications

TRENDnet TU-IDES IDE to Serial ATA Converter Adapter

Overview :

The TRENDnet TU-IDES is a specialized hardware adapter designed to bridge the technology gap between legacy storage devices and modern computer systems. Its primary purpose is to allow older IDE (also known as PATA) devices, such as hard disk drives, CD-ROMs, and DVD drives, to connect seamlessly to a contemporary motherboard that uses the Serial ATA (SATA) interface. This component is essential for technicians, system builders, and IT professionals who need to access, recover, or continue using valuable data from older but still functional hardware without costly system-wide upgrades. At its core, the converter leverages a straightforward yet effective design that translates the parallel ATA signal to a serial one. The device supports the Serial ATA 1.0 specification and is fully hot-pluggable, enabling users to connect or disconnect drives without needing to power down the entire system. This functionality is particularly beneficial in a workshop or data recovery environment. Compatibility is extensive, with support for a wide range of transfer modes, including PIO modes 0-4 and Ultra DMA modes 0-7, ensuring that nearly any IDE device will be recognized and operate correctly. Engineered for simplicity and reliability, the TU-IDES is a pure plug-and-play solution that requires no software or driver installation. Its compact form factor allows for easy installation inside a desktop computer chassis. Deployment is simple: the adapter connects directly to the 40-pin ribbon cable of the IDE device, receives power via a standard Y power cable, and links to the motherboard with a standard SATA data cable. This makes it an ideal tool for system migrations, data transfers, and extending the operational life of legacy IT assets.

Key Features

  • Connect legacy IDE devices to modern SATA motherboards.
  • Plug-and-play installation requires no drivers.
  • Utilizes Serial ATA 1.0 and hot-pluggable technology.
  • Supports PIO modes 0-4 and Ultra DMA modes 0-7.
  • Master/slave hard drive emulation for compatibility.

Specifications

SpecificationValue
Brand TRENDnet
Part Number TU-IDES
Product Type IDE to Serial ATA Converter
Standards Serial ATA 1.0, ATA 133/100/66/33
Input Interface 7-pin SATA, 4-pin Power
Output Interface 40-pin IDE
Supported Modes PIO 0-4, UDMA 0-7
LBA Support 48-bit
Hot-Pluggable Yes
Height 0.4 in.
Width 2.3 in.
Depth 1.4 in.
