Detailed Specifications

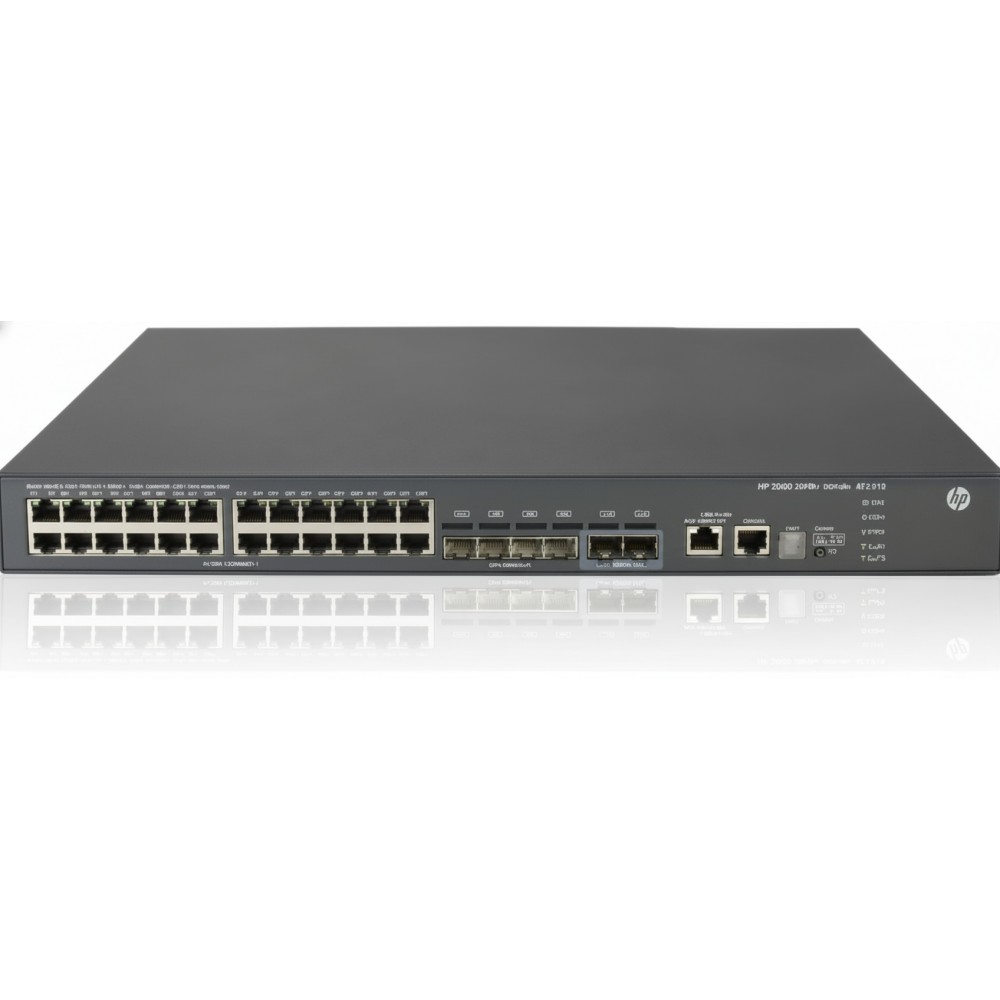

HPE JG541A FlexNetwork 5500-24G-PoE+ Layer-3 Switch
Overview
The HPE JG541A is a high-density PoE+ switch in the FlexNetwork 5500 HI series, providing 24 Gigabit RJ-45 PoE+ access ports. It offers modular flexibility with two interface slots, four fixed Gigabit SFP ports, and two 10 Gb SFP+ ports. The switch is suitable for enterprise campus or data-center edge environments that require resilient PoE deployment and scalable uplinks. It supports Layer-3 routing, high switching capacity, and redundant power for reliable, converged networks.
Key Features
24 × PoE+ 10/100/1000Base-T RJ-45 ports
4 × fixed Gigabit SFP + 2 × 10-Gb SFP+ uplinks
Two modular interface card slots for future expansion
Layer-3 routing (OSPF, BGP, VRRP, static, etc.)
High throughput with 176 Gb/s forwarding capacity
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | JG541A |
| Product Type | Managed Layer-3 Switch |
| Access Ports | 24 × 10/100/1000 RJ-45 PoE+ |
| Uplink Ports | 4 × 1 Gb SFP + 2 × 10 Gb SFP+ |
| Interface Slots | 2 modular expansion slots |
| Switching Capacity | 176 Gb/s |
| Forwarding Rate | 130.9 Mpps |
| MAC Address Table | 32,000 entries |
| IPv4 Routing Table | ~12,000 entries |
| IPv6 Routing Table | ~6,000 entries |
| Memory | 1 GB SDRAM, 512 MB flash |
| Packet Buffer | 3 MB |
| PoE Budget | Up to 740 W (with dual PSUs) |
| Power Supply Slots | 2, 1 required minimum |
| Operating Temperature | 0 °C to 45 °C |
| Enclosure / Form Factor | 1U, rack-mount |
| Dimensions (H×W×D) | Approx. 1.72 × 17.32 × 18.11 in |
| Weight | ~22.05 lb |
