Detailed Specifications
HPE JG225A FlexFabric 5800AF-48G Layer-3 Switch
Overview

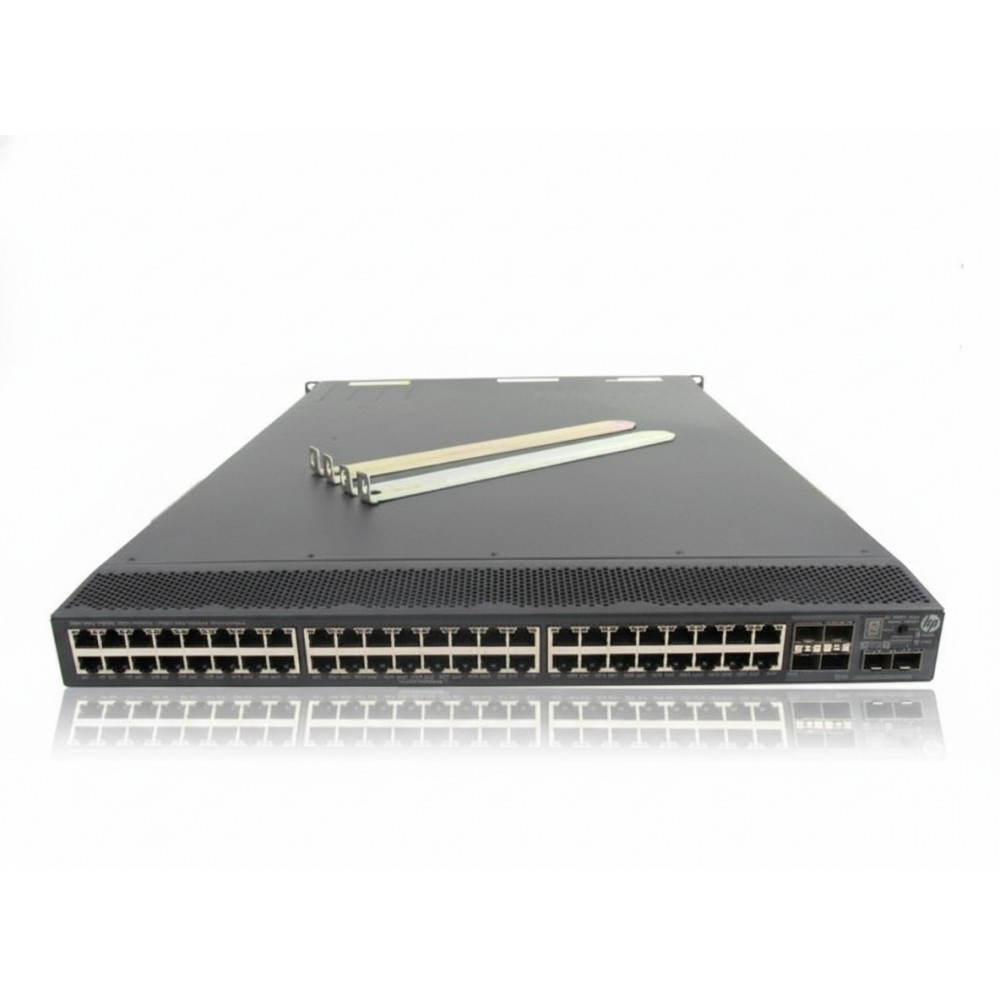

The HPE JG225A is a 1-RU Layer-3 switch offering 48 autosensing 10/100/1000Base-T ports plus six fixed 10 Gb SFP+ uplinks. It is designed for core or aggregation deployments in Ethernet fabrics where both high-density Gigabit access and 10 Gb backbone are needed. The switch supports advanced Layer-3 routing protocols, full dual-stack IPv4/IPv6, and high-availability options such as redundant power and fan modules. It integrates with HPE's FlexFabric architecture and offers flexible cooling (front-to-back or back-to-front) suited for data center environments.
Key Features
48 × 1 Gb RJ-45 autosensing ports for dense access
6 × 10 Gb SFP+ uplink ports for high-speed aggregation
Layer-3 routing: OSPF, BGP, RIP, PIM and more
Redundant, hot-swappable AC or DC power supplies and fans
Front-to-back or back-to-front airflow for optimized thermal design
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | JG225A |
| Product Type | FlexFabric 5800AF-48G Layer-3 Switch |
| Access Ports | 48 × 10/100/1000Base-T RJ-45 |
| Uplink Ports | 6 × 1/10 Gb SFP+ |
| Switching Capacity | 216 Gbps |
| Forwarding Rate | ~161 Mpps |
| MAC Address Table | Up to 32,000 entries |
| Latency | < 5 µs |
| Memory (DRAM) | 512 MB |
| Flash Memory | 512 MB |
| Power Supply Slots | 2 (supports redundant) |
| Fan Tray Slots | 2 |
| Operating Temperature | 0 °C to 45 °C |
| Airflow Options | Front-to-back / Back-to-front |
| Management Ports | 1 × RJ-45 serial console, 1 × RJ-45 management, 1 × USB 2.0 |
| Routing Protocols | OSPF, BGP-4, RIP, PIM, VRRP, policy-based routing |
| Management Protocols | SNMP v1/v2c/v3, RMON, sFlow, Web GUI, CLI |
| Standards Compliance | RFCs for IPv6, IEEE 802.1Q, 802.3ad, 802.1x |
