Detailed Specifications

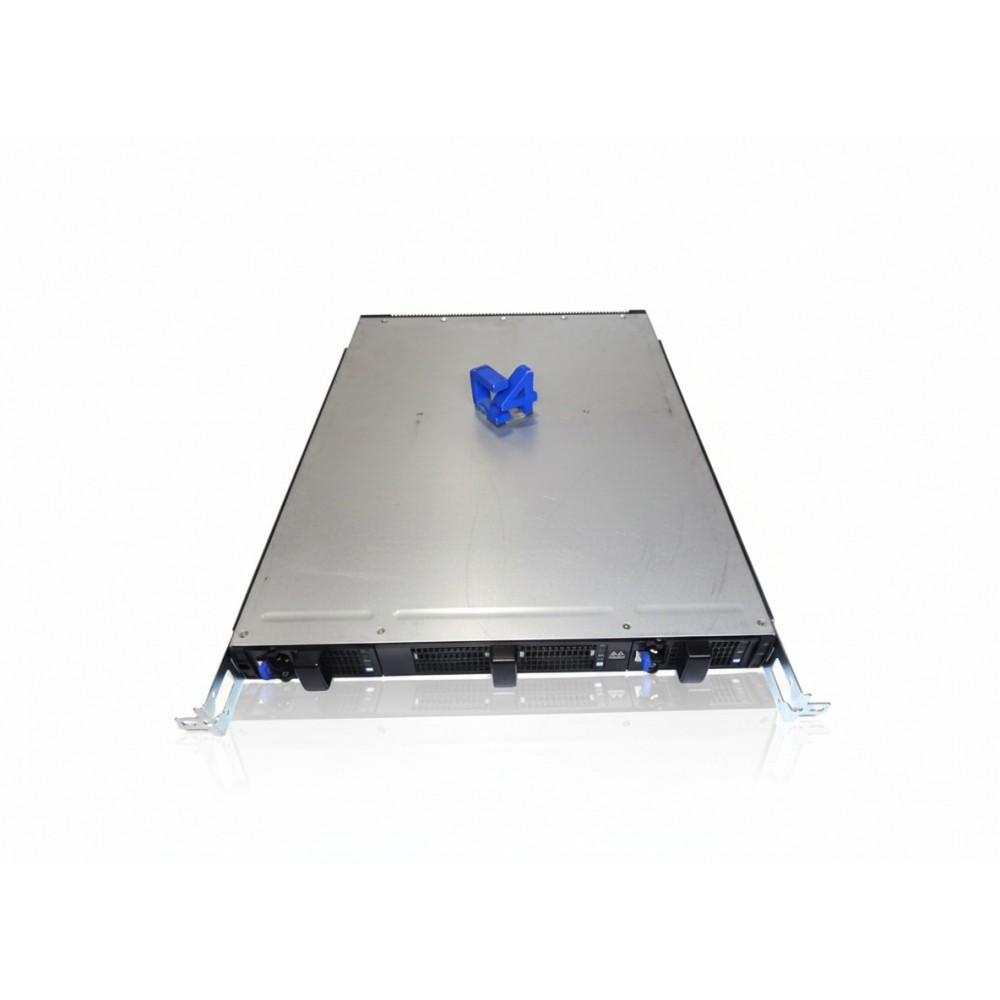

HPE 674865-001 Mellanox SX6036 36-Port FDR Infiniband Switch
Overview
The HPE 674865-001 is a 1U, rack-mountable managed Infiniband switch with 36 FDR QSFP ports. It provides high-throughput, low-latency connectivity for HPC, cluster computing, and storage fabric environments. The switch supports advanced Infiniband features such as subnet management, traffic management, and topology configuration, fitting seamlessly into scalable data-center fabrics. Its design enables dense interconnects while maintaining energy efficiency, making it ideal for scientific, financial, and virtualization workloads.
Key Features
36 QSFP ports supporting Fourteen Data Rate (FDR) Infiniband
Non-blocking switching architecture with up to ~4 Tb/s aggregate bandwidth
Supports FDR and FDR10 speeds, including Forward Error Correction (FEC)
Subnet manager, topology configuration, and QoS capabilities
Redundant dual power supplies and 1U chassis for data-center integration
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE (Mellanox) |
| Part Number | 674865-001 |
| Product Type | Managed Infiniband Switch |
| Number of Ports | 36 × QSFP |
| Infiniband Speed | FDR (Fourteen Data Rate), FDR10 |
| Aggregate Bandwidth | Up to ~4 Tb/s |
| Switching Architecture | Non-blocking |
| Management Interfaces | RJ-45 console, Out-of-band Ethernet port, USB |
| Power Supplies | Dual redundant hot-swap power supplies |
| Form Factor | 1U rack-mount chassis |
| Cooling | Front-to-back airflow with redundant fans |
| Supported Features | Subnet management, traffic shaping, topology config, QoS |
| Compliance | RoHS, WEEE |
| Application | HPC, cluster fabrics, storage back-ends, low-latency compute networks |
