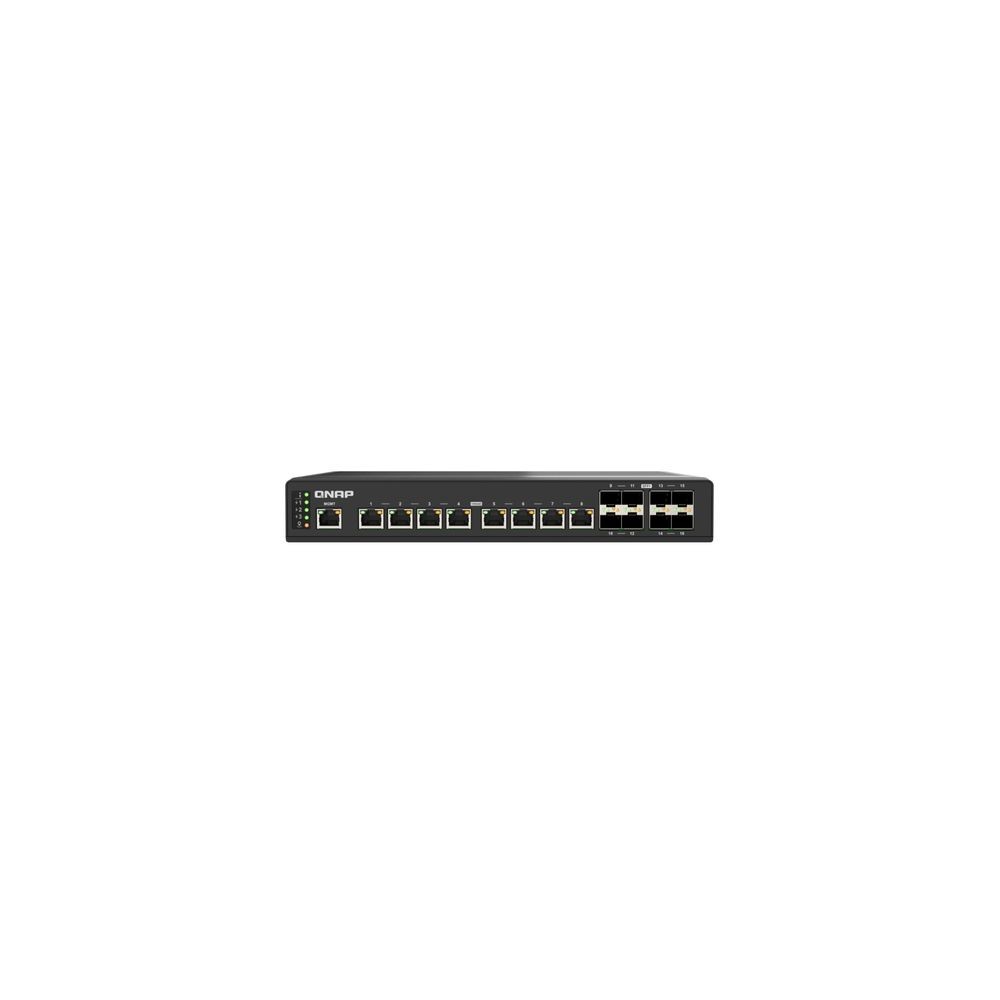

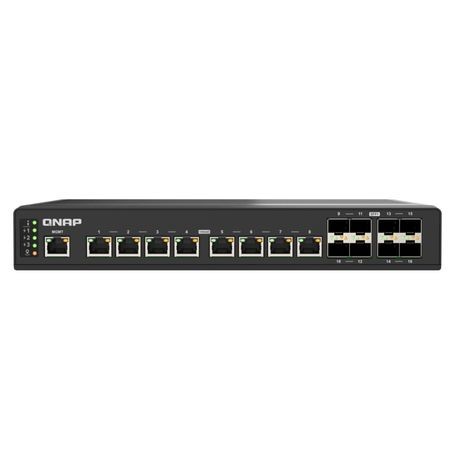

The QNAP QSW-IM3216-8S8T-US is an industrial-grade, full 10GbE Layer 2 managed switch designed for rugged environments and smart city infrastructure. It features a fanless design and high-durability components to operate reliably in high-temperature or high-vibration settings. Data center and industrial engineers deploy this switch to bridge high-speed edge devices with core networks, utilizing its 16-port high-bandwidth density.
Technical capability is centered on its dual-media flexibility, offering eight 10GbE SFP+ fiber ports and eight 10GbE RJ45 copper ports. This configuration allows for long-distance fiber uplinks and high-speed local copper connections simultaneously. It supports advanced L2 management features through the QNAP Switch System (QSS), including VLAN, LACP, and IGMP Snooping, providing granular control over network traffic and security.
Deployment is optimized for industrial racks or outdoor enclosures where traditional active cooling is not feasible. Its redundant DC power input ensures system resilience in manufacturing plants or transportation hubs. The switch complies with industrial-grade standards for surge protection and electromagnetic compatibility. It is not intended for standard climate-controlled office environments where lower-cost, fan-cooled switches would suffice.
Fanless industrial design operates reliably in harsh environments
16-port 10GbE density provides massive throughput for edge data
Redundant DC power inputs minimize downtime in critical operations
User-friendly QSS interface simplifies complex L2 network management
Wide operating temperature range ensures stability in uncooled areas
| Feature | Specification |
| Brand | QNAP |
| Part Number | QSW-IM3216-8S8T-US |
| Product Type | Industrial Managed Switch |
| Total Ports | 16 |
| 10GbE SFP+ Ports | 8 |
| 10GbE RJ45 Ports | 8 |
| Management Type | Layer 2 Managed |
| Switching Capacity | 320 Gbps |
| Input Power | Dual DC 9V-54V |
| Enclosure | IP20 Rated Metal |
| Cooling | Fanless / Passive |
| Mounting | Rackmount (1U) |
