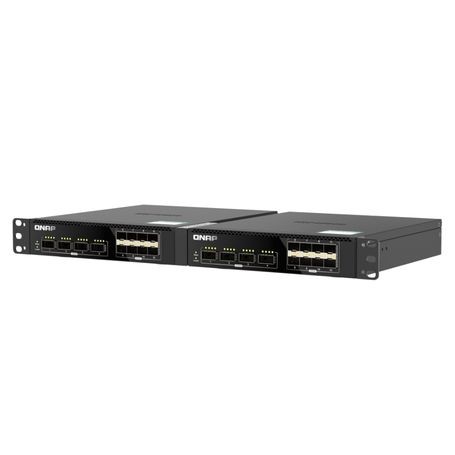

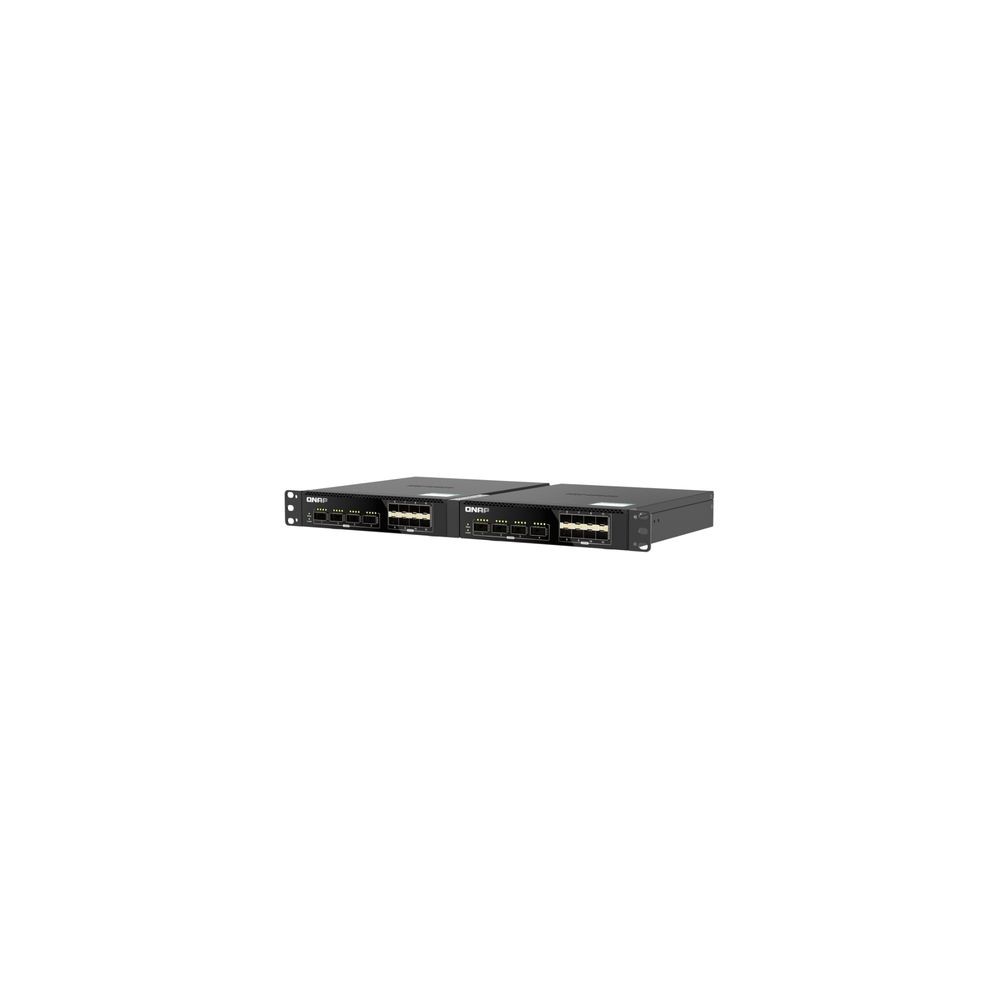

QNAP QSW-M7308R-4X-US 12-Port 100GbE/25GbE L3 Lite Managed Switch View larger

QNAP QSW-M7308R-4X-US 12-Port 100GbE/25GbE L3 Lite Managed Switch

QSW-M7308R-4X-US

New

In Stock

12-Port Half-Width Rackmount Switch with 4 x 100GbE and 8 x 25GbE

×




$1,309.85

Detailed Specifications

QNAP QSW-M7308R-4X-US - 100GbE Managed Switch

Overview

The QNAP QSW-M7308R-4X-US is a high-density, cost-optimized 100GbE L3 Lite managed switch designed for enterprise backbone networks and high-performance computing.Featuring four 100GbE QSFP28 ports and eight 25GbE SFP28 ports, it offers a massive 1200Gbps switching capacity.This half-width rackmount unit is specifically engineered to eliminate bandwidth bottlenecks in server rooms, facilitating ultra-fast data transmission for AI training clusters, 4K/8K video editing, and large-scale virtualization.

Technically, the switch is powered by a Marvell Armada CPU and Prestera switch chip, supporting advanced Layer 2 and L3 Lite features including static routing, MC-LAG for high availability, and RDMA-ready lossless Ethernet. The 100GbE ports are backward compatible with 40GbE and support breakout cables to further expand connectivity to 25GbE sub-ports.This solves the problem of high-speed infrastructure scaling in space-constrained environments, as two units can be mounted side-by-side in a single 1U rack space.

Deployment is intended for medium-to-large enterprise IT environments requiring a reliable, low-latency backbone.It features the user-friendly QSS Pro management interface and supports AMIZcloud for centralized remote monitoring across multiple sites.With Precision Time Protocol (PTP) support, it is also optimized for AVoIP applications, ensuring synchronized, high-quality audiovisual transmission.

Do not use this switch in environments with poor airflow, as the high-speed 100GbE transceivers generate significant heat and rely on the internal PWM fans for stability. Ensure all connected DAC cables or transceivers are compatible with QSFP28/SFP28 standards to maintain rated 100G/25G throughput and avoid link errors.

Key Features

  • 100GbE/25GbE Connectivity: Four 100GbE QSFP28 and eight 25GbE SFP28 ports for elite throughput.

  • L3 Lite Management: Supports IPv4/IPv6 static routing, DHCP server, and advanced VLAN settings.

  • Lossless Ethernet: RDMA-ready with PFC and ECN support for low-latency AI and HPC workloads.

  • MC-LAG Redundancy: Provides high availability and uninterrupted switching via multi-chassis link aggregation.

    1U half-width form factor allows two switches to be installed in a single 1U rack space.

Specifications

AttributeDetails
BrandQNAP
Part NumberQSW-M7308R-4X-US
Product TypeL3 Lite Managed Switch
Total Ports12
100GbE QSFP28 Ports4
25GbE SFP28 Ports8
Switching Capacity1200 Gbps
Throughput600 Gbps (Non-blocking)
Management Port1 x 1GbE RJ45
Console Port1 x RJ45
MAC Address Table32K
Power SupplyInternal AC (100-240V)
Max Power Consumption55.15W
Form Factor1U Half-width Rackmount
