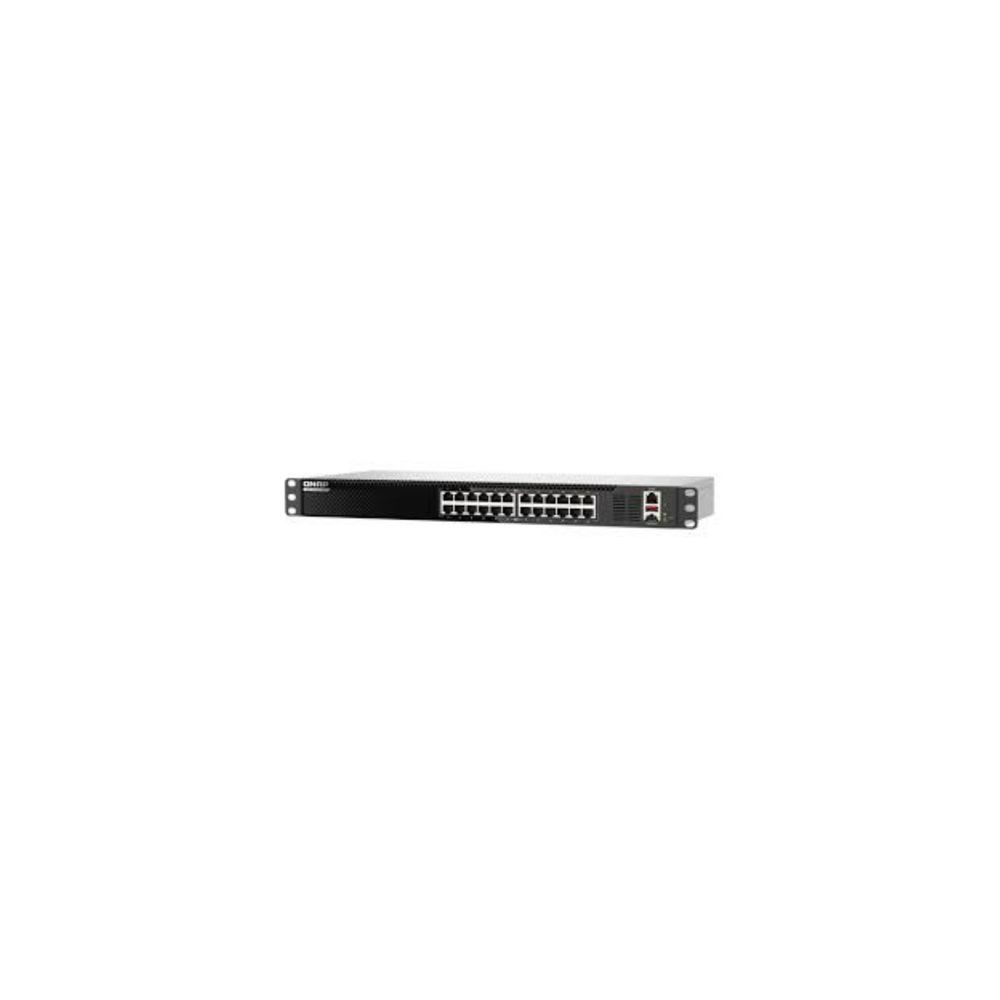

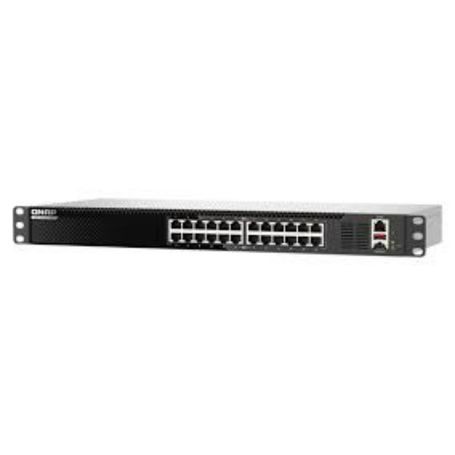

The QNAP QSW-M3224-24T-US is a high-density 24-port 10GbE Layer 3 Lite managed switch designed for enterprise networks, data centers, virtualization clusters, and high-throughput storage environments.
It provides 24 × 10GbE RJ45 ports supportingF NBASE-T (10G/5G/2.5G/1G/100M), enabling flexible connectivity for mixed-speed enterprise infrastructures without requiring SFP+ transceivers.
With a switching capacity of 480Gbps and non-blocking throughput of 240Gbps, it supports low-latency, full-bandwidth communication across all ports, making it suitable for high-performance NAS, AI workloads, video editing pipelines, and virtualization clusters.
The switch includes Layer 3 Lite functionality, such as static routing, DHCP server, VLAN segmentation, and QoS controls, enabling segmented and manageable enterprise networks without requiring a full L3 core switch.
Advanced features like MC-LAG (multi-chassis link aggregation) provide high availability and redundancy, ensuring uninterrupted network operation in production environments.
Deployment is focused on data center access layers, storage backbones, and high-density workstation environments where 10GbE connectivity is standard.
| Specification | Details |
|---|---|
| Brand | QNAP |
| Part Number | QSW-M3224-24T-US |
| Product Type | Managed Network Switch |
| Ports | 24 × 10GbE RJ45 (10G/5G/2.5G/1G/100M) |
| Switching Capacity | 480Gbps |
| Throughput | 240Gbps non-blocking |
| Management Type | Layer 3 Lite Web Managed |
| Management Port | 1 × 1GbE RJ45 |
| VLAN Support | Yes (IEEE 802.1Q) |
| Routing | Static routing (L3 Lite) |
| Redundancy | MC-LAG support |
| Power Supply | Internal AC PSU |
| Max Power Consumption | 116.9W |
| Form Factor | 1U Rackmount |
| Console | USB-C |
| Use Case | Enterprise / Data center / NAS networking |
