Netgear GSM4212UX-100NAS M4250 Gigabit Compliant Ethernet Switch View larger

Netgear GSM4212UX-100NAS M4250-10G2XF-PoE++ Managed AV Switch

New

In Stock

10-Port Multi-Gig 720W PoE++ AV Switch
×




$1,099.00

  • New

Detailed Specifications

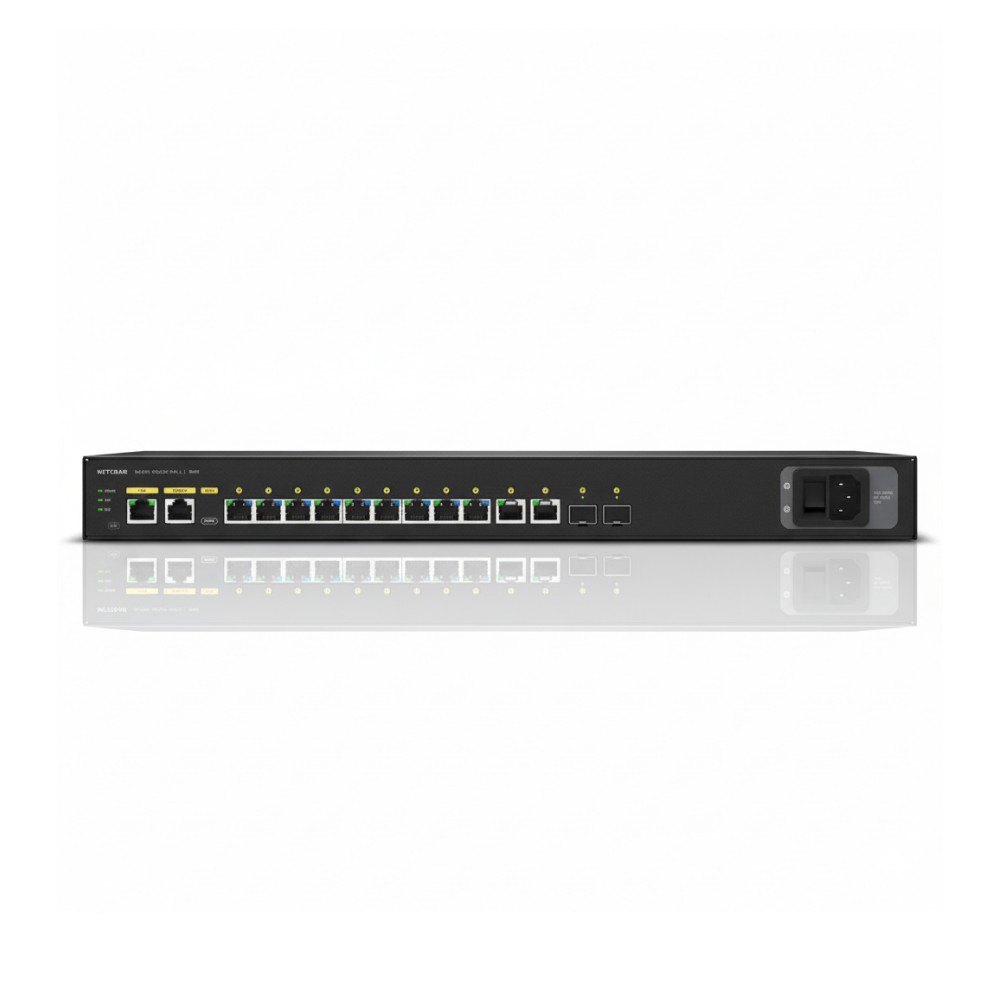

Netgear GSM4212UX-100NAS M4250-10G2XF-PoE++ Managed AV Switch

Overview

The Netgear GSM4212UX-100NAS, part of the specialized M4250 AV Line, is a high-performance managed switch engineered specifically for the rigorous demands of professional Audio and Video over IP (AVoIP) environments. Unlike standard enterprise switches that require extensive manual tuning for media traffic, this unit features a dedicated AV-oriented web interface. This interface simplifies the deployment of complex protocols such as Dante, Q-SYS, and AVB, bridging the gap between traditional IT infrastructure and broadcast-grade AV requirements.

Equipped with eight 2.5G Multi-Gigabit ports supporting 802.3bt PoE++ (up to 90W per port) and a substantial 720W internal power budget, the GSM4212UX is designed to power high-draw edge devices like 4K PTZ cameras and large-scale LED controllers. For high-bandwidth backhaul, it provides two 10G Multi-Gigabit copper ports and two 10G SFP+ fiber uplinks, ensuring non-blocking performance for uncompressed video streams. Whether deployed in a corporate boardroom, a house of worship, or a live event rack, the GSM4212UX offers Layer 2/Layer 3 Lite management and Netgear IGMP Plus to automate multicast configurations, providing the stability required for mission-critical media delivery.

Key Features

- 8x 2.5G PoE++ ports with a massive 720W power budget.
- Dedicated AV UI for simplified Dante and AVoIP setup.
- Two 10G SFP+ fiber ports for high-speed core uplinks.
- Netgear IGMP Plus for automated multicast configuration.

Specifications

Brand Netgear
Part Number GSM4212UX-100NAS
Product Type Managed AV Switch
Total Ports 12 (8x 2.5G, 2x 10G Copper, 2x 10G SFP+)
PoE Support 8x PoE++ 802.3bt (Up to 90W per port)
PoE Budget 720W Internal Power Supply
Switching Capacity 120 Gbps
Throughput 89.28 Mpps
Management Web UI, AV UI, CLI, SNMP, Netgear Insight
Form Factor 1U Rackmount (Half-width)
Dimensions 220 x 350 x 43.2 mm
Weight 2.85 kg
Operating Temp 0° to 50° C
Acoustics 34dB @ 25°C

Frequently Asked Questions

Does this switch support AVB (Audio Video Bridging)?

Yes, the GSM4212UX supports AVB. Note that AVB functionality may require an optional electronic license depending on your specific hardware revision and regional requirements.

Can the fans be adjusted for noise-sensitive environments?

The M4250 series features software-controlled fans that adjust based on internal temperature and PoE load. It includes a "Fan Off" mode for low-load scenarios to ensure silent operation in studios or boardrooms.

Is this switch compatible with Dante audio networks?

Yes, it is specifically optimized for Dante. The AV-specific management interface includes pre-configured profiles that apply the necessary QoS and IGMP settings for Dante traffic with a single click.
