Detailed Specifications

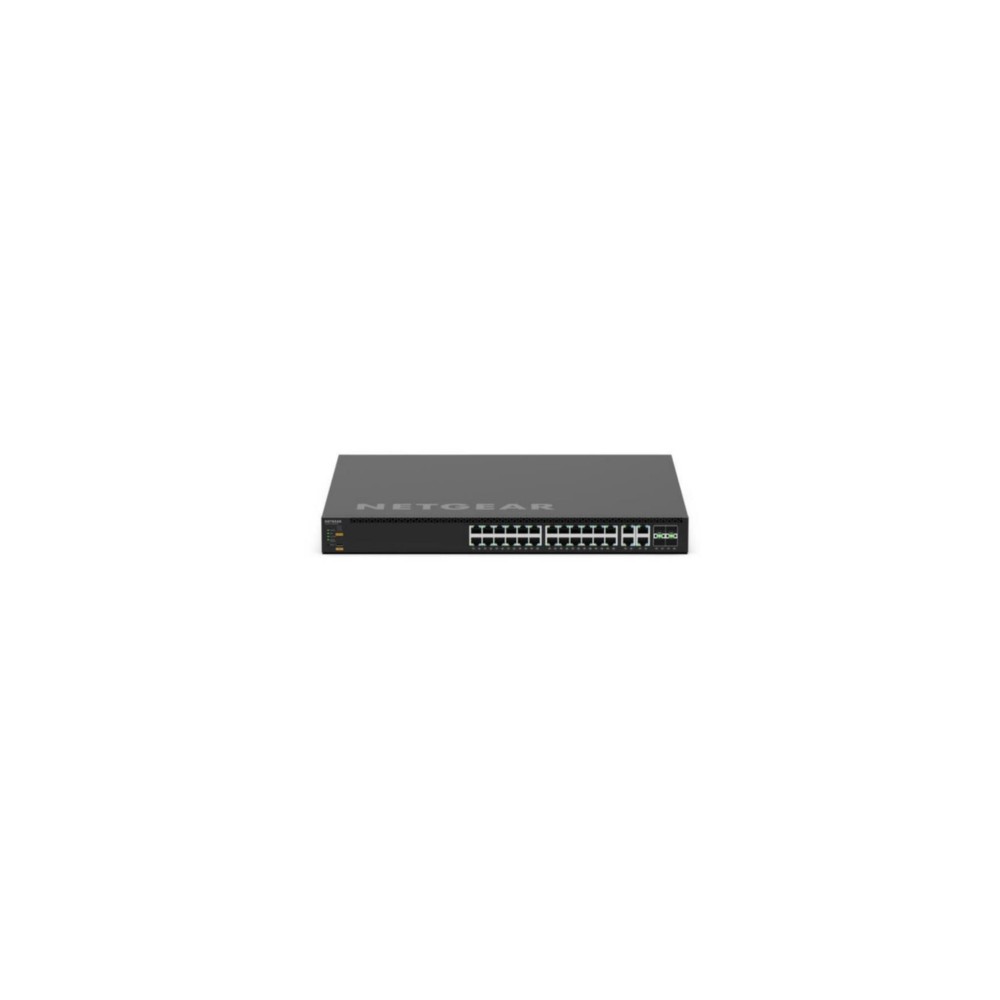

NETGEAR MSM4332-TAANES 24-Port 2.5G PoE AV Managed Switch with 25G Uplinks
Overview :
The NETGEAR MSM4332 is a fully managed, high-performance switch from the AV Line M4350 series, purpose-built for audio/video over IP (AV over IP) installations . It is engineered for AV professionals and system integrators deploying multicast AV applications, addressing the need for guaranteed, low-latency media delivery with simplified configuration . The switch features 24 x 2.5G PoE++ ports and 4 x 10G/Multi-Gig PoE++ ports, plus 4 x 25G SFP28 uplinks, providing a substantial 522W base PoE budget (expandable to 2,520W) . Its Layer 3 capabilities, enhanced IGMP Plus' for instant multicast, and AV-optimized user interface make it suitable for core, access, or edge deployment in venues, broadcast, and enterprise environments . This switch is not recommended for standard IT networks without AV-over-IP requirements, where its specialized features and cost may be excessive.
Key Features :
24x 2.5G and 4x 10G/Multi-Gig PoE++ ports (802.3bt Type 3)
4x 25GBASE-X SFP28 uplinks for high-bandwidth core connectivity
Groundbreaking AV GUI with pre-configured profiles for major AV protocols
NETGEAR IGMP Plus' for out-of-the-box multicast functionality
Modular PSU slots for 1+1 redundancy and PoE budget expansion up to 2,520W
Specifications :
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | MSM4332-TAANES |
| Product Type | Fully Managed AV over IP Switch |
| Total Ports | 32 |
| PoE+ Ports | 24 x 2.5G PoE++ (60W per port), 4 x 10G PoE++ (60W per port) |
| Uplink Ports | 4 x 25G SFP28 |
| PoE Budget (Base) | 522W |
| PoE Budget (Max) | 2,520W (with modular PSUs) |
| Switching Capacity | 400 Gbps |
| Forwarding Rate | 297.6 Mpps |
| MAC Address Table | 16K entries |
| Packet Buffer | 32 Mb |
| Jumbo Frame Support | Up to 12KB |
| Layer Services | Layer 3 (Static, Policy-based, Dynamic routing) |
| CPU | 1.8 GHz Cortex A57 Quad-Core |
| Memory | 4 GB DDR4 |
| Management | NETGEAR AV OS, Engage Controller, Web GUI, CLI |
| AVB Support | Yes |
| Acoustic Noise (Quiet Mode) | 34.8 dBA @ 25°C |
| Power Consumption (Without PoE) | 123.4W |
