Detailed Specifications

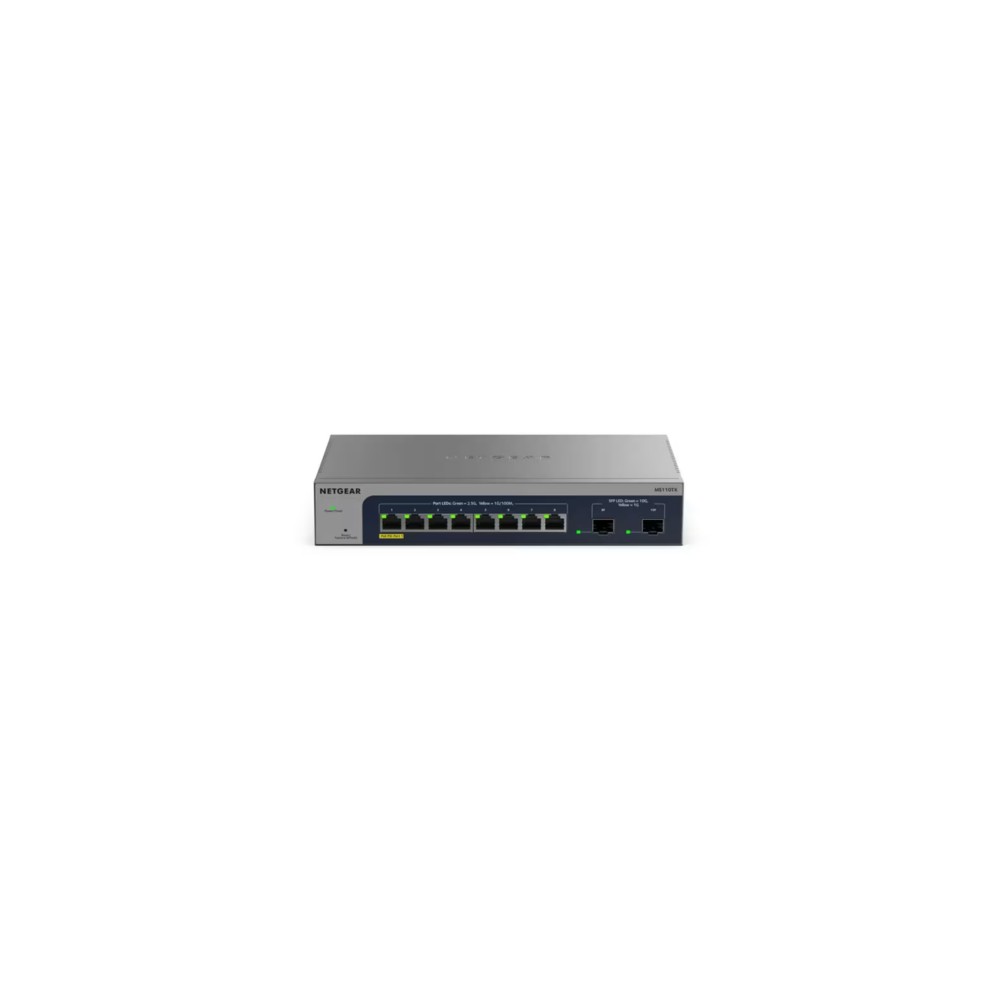

NETGEAR MS110TX-100NAS 8-Port 2.5G Multi-Gigabit Smart Switch
Overview :
The NETGEAR MS110TX is an 8-port smart managed switch designed for businesses requiring high-speed connectivity for Wi-Fi 6 access points, high-performance workstations, and network-attached storage . It eliminates the bandwidth bottleneck between access ports and the core network by delivering 2.5Gbps speeds across all eight copper ports . The switch is ideal for deployment in classrooms, conference rooms, retail stores, and open office environments . This switch is not suitable for applications requiring Power over Ethernet (PoE), as it does not support PoE×users requiring PoE should consider the MS110TXUP model .
Key Features :
8x 2.5G copper ports eliminate Wi-Fi 6 network bottlenecks
2x 10G SFP+ uplink ports connect to core/routers at high bandwidth
Fanless silent design enables deployment in noise-sensitive areas
NETGEAR Insight cloud management for remote configuration and monitoring
Lite L3 feature set includes static routing, VLANs, QoS, and ACLs
Specifications :
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | MS110TX-100NAS |
| Product Type | Smart Managed Switch |
| Copper Ports | 8 x 1G/2.5G Ethernet |
| Uplink Ports | 2 x 10G SFP+ |
| Total Ports | 10 |
| PoE Support | None (non-PoE model) |
| MAC Table Size | 16K entries |
| Packet Buffer | 1.5 MB |
| VLANs Supported | 256 |
| Static Routing | Yes (Lite L3 feature set) |
| Management | Insight Cloud, web GUI, CLI, SNMP, SSH, Telnet |
| Mounting | Desktop, wallmount, or rackmount |
| Power Supply | External power adapter (included) |
| Fan | None (fanless) |
| Acoustic Noise | 0 dBA @25°C |
| Operating Temperature | 0° to 40°C |
| MTBF | 1,528,747 hours |
