Detailed Specifications

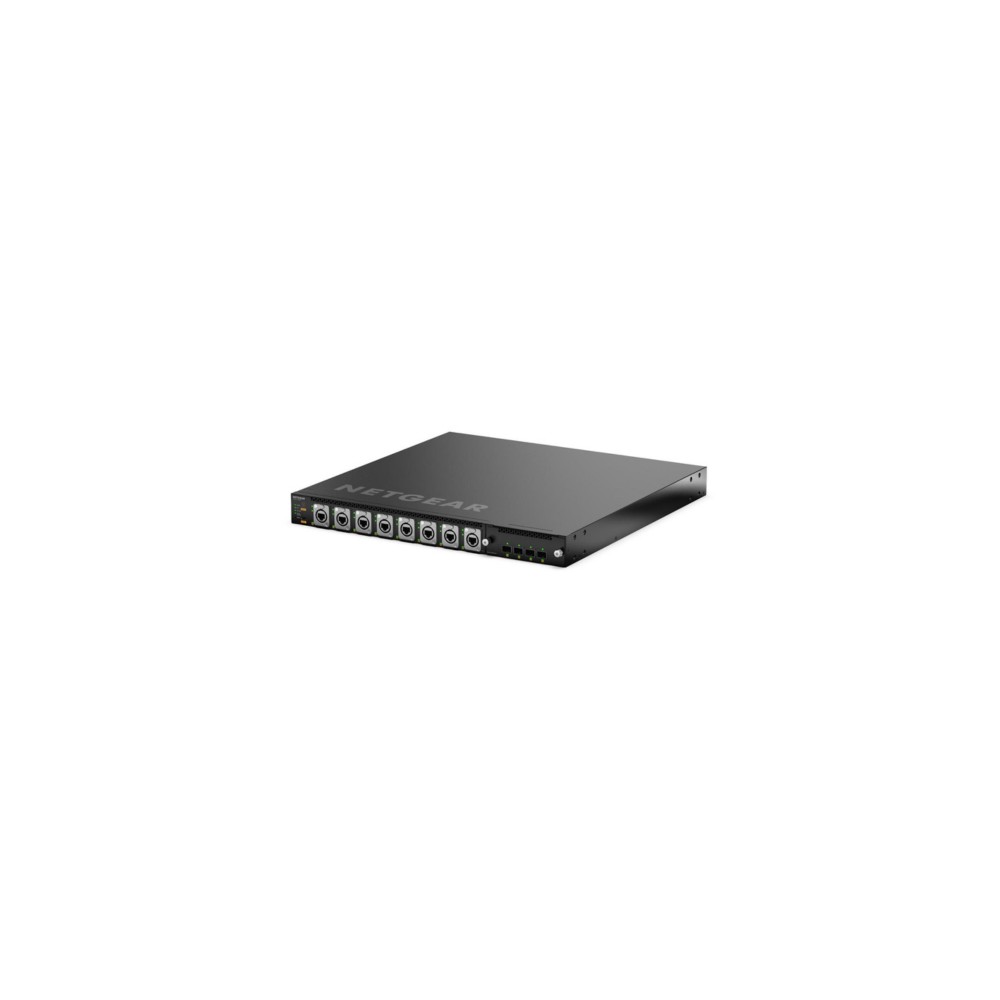

NETGEAR MSM4320-TAANES M4350-16M4V Fully Managed Switch
Overview :
The NETGEAR MSM4320-TAANES is the TAA-compliant SKU of the M4350-16M4V fully managed switch. It provides 16 × 2.5G PoE++ ports, including eight Neutrik etherCON ports, plus four 25G SFP28 uplinks. NETGEAR identifies MSM4320-TAANES as the TAA SKU for North America, the UK, and EU.
The switch provides a 530W base PoE budget and can reach 1,130W when redundant PoE capacity is retained. Two internal 800W power supplies provide 1+1 power architecture. The supplied APM414V interface card provides four standard 25G SFP28 ports.
The platform is designed for professional AV-over-IP, enterprise edge, and high-bandwidth managed-network deployments. It supports Virtual Chassis stacking, Layer 3 routing, NETGEAR IGMP Plus, AVB, AV User Interface, and Engage Controller. Optional interface cards can provide 10G copper or opticalCON fiber connectivity.
Key Features :
- Sixteen 2.5G PoE++ ports support high-power AV endpoints
- Eight Neutrik etherCON ports support professional AV cabling
- Four 25G SFP28 uplinks provide high-speed aggregation
- Dual 800W PSUs provide redundant power architecture
- Virtual Chassis supports resilient managed-network deployments
Specifications :
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | MSM4320-TAANES |
| Product Type | Fully Managed PoE++ Switch |
| Series / Model | M4350-16M4V |
| PoE Ports | 16 × 2.5G PoE++ |
| Neutrik Ports | 8 × etherCON |
| SFP28 Uplinks | 4 × 25G |
| Base PoE Budget | 530W |
| Maximum PoE Budget | Up to 1,130W |
| Internal Power Supplies | 2 × 800W |
| Jumbo Frame Support | Up to 12KB |
| Stacking | Virtual Chassis |
| Routing | Static, policy-based, dynamic |
| AV Features | IGMP Plus, AVB, AV User Interface |
| Form Factor | 1U rack-mountable |
