Detailed Specifications

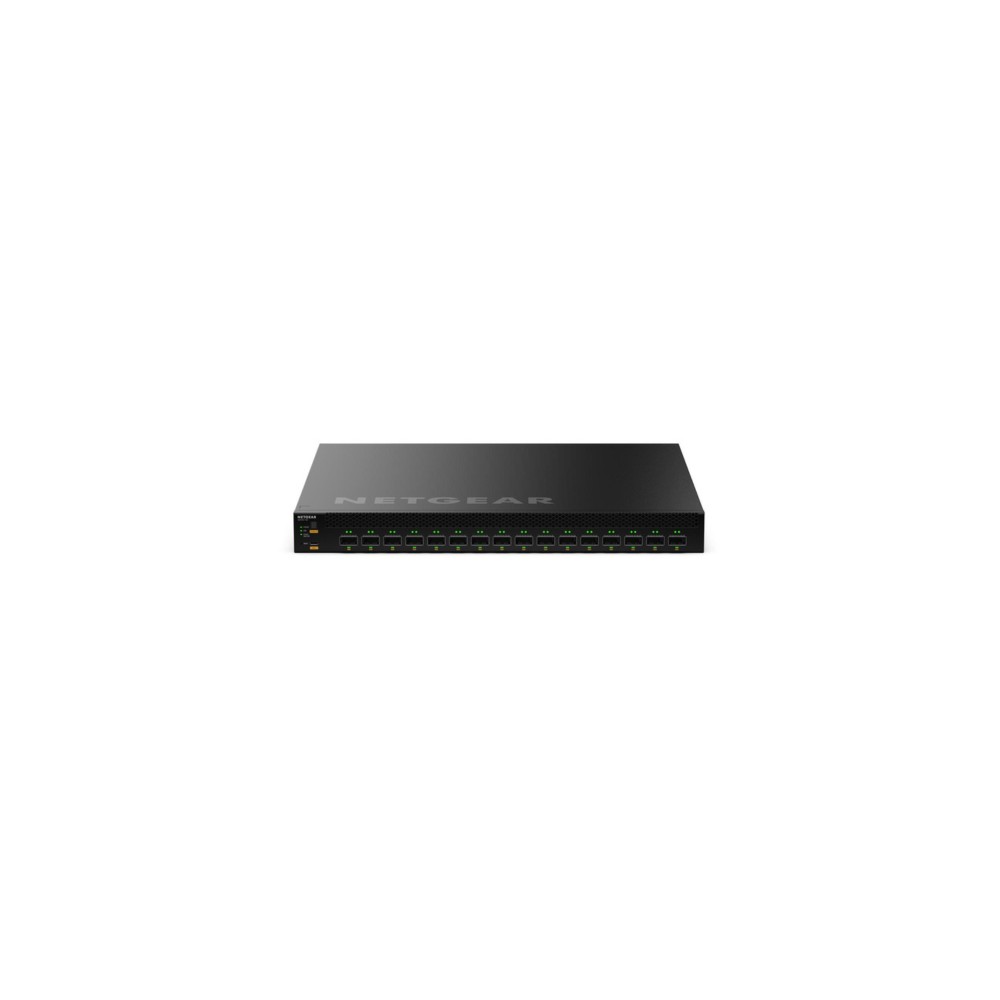

NETGEAR CSM4316-100NES M4350-16C Fully Managed Switch
Overview :
The NETGEAR CSM4316-100NES is the North America, UK, and EU SKU of the M4350-16C fully managed switch. It provides 16 × 100GBASE-X QSFP28 ports for high-bandwidth enterprise core, data-center, aggregation, and professional AV-over-IP deployments. NETGEAR's ordering documentation explicitly identifies CSM4316-100NES for these markets.
The switch has a 420W internal power supply and one modular PSU slot supporting 1+1 redundancy. Compatible modular power supplies include APS600Wv3, APS1200Wv2, and APS2000Wv2. Virtual Chassis stacking provides non-stop forwarding and hitless failover, while Layer 3 functionality supports static, policy-based, and dynamic routing.
The platform supports NETGEAR IGMP Plus, AV OS, Engage Controller, AVB, and SMPTE ST 2110 timing functions. It is intended for high-speed managed networks and is not a PoE switch, so endpoint power must be provided separately.
Key Features :
- Sixteen 100G QSFP28 ports provide dense high-speed connectivity
- 420W internal PSU supports demanding network operation
- Modular PSU slot enables 1+1 power supply redundancy
- Virtual Chassis supports resilient switch-stack deployments
- Layer 3 routing supports advanced enterprise network designs
Specifications :
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | CSM4316-100NES |
| Product Type | Fully Managed Switch |
| Series / Model | M4350-16C |
| Ethernet Interfaces | 16 × 100GBASE-X QSFP28 |
| Primary Port Speed | 100Gbps |
| PoE Support | None |
| Internal Power Supply | 420W |
| Modular PSU Slot | 1; supports 1+1 redundancy |
| Compatible Modular PSUs | APS600Wv3 / APS1200Wv2 / APS2000Wv2 |
| Jumbo Frame Support | Up to 12KB |
| Routing | Static, policy-based, dynamic |
| Stacking | Virtual Chassis |
| AV Features | IGMP Plus, AV OS, Engage Controller |
| Form Factor | 1U rack-mountable |
