Detailed Specifications

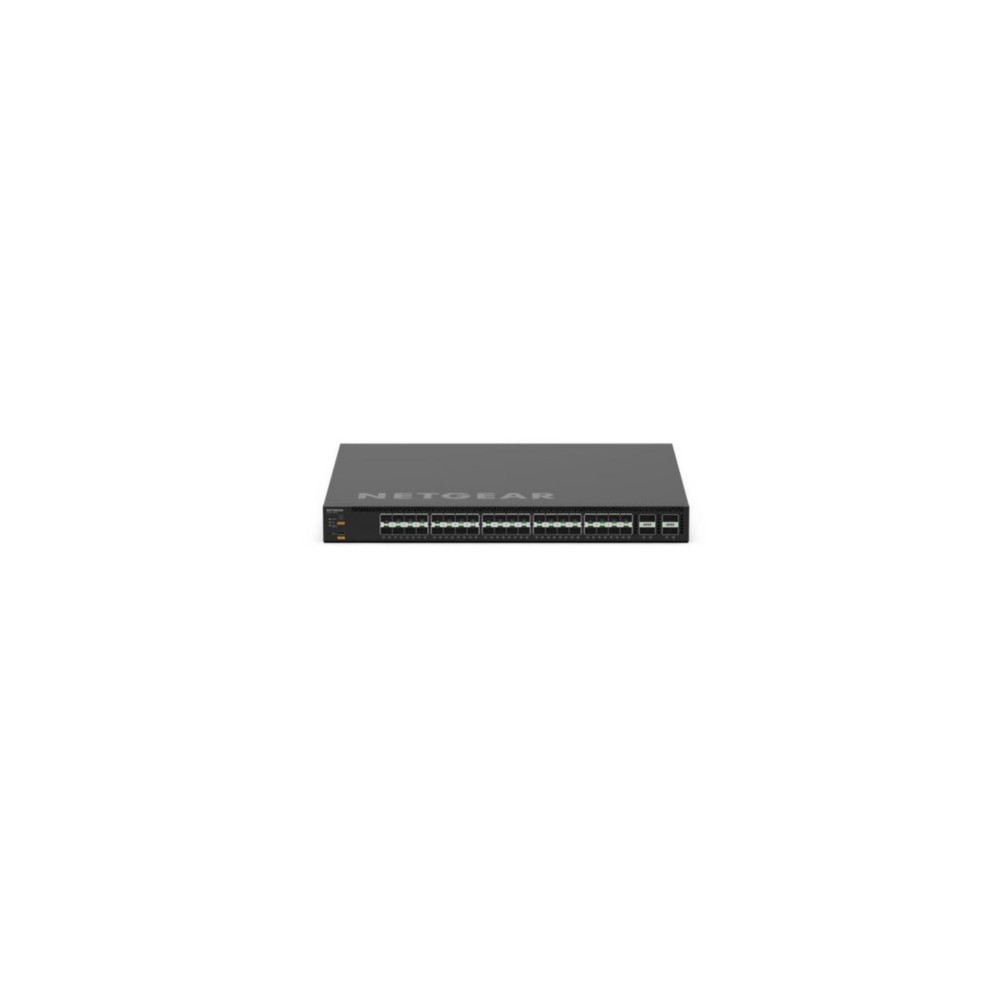

NETGEAR XSM4344FC-100NES M4350-40F4C Fully Managed Switch
Overview :
The NETGEAR XSM4344FC-100NES is the North America/Europe SKU of the M4350-40F4C fully managed switch. It provides 40 × 10GBASE-X SFP+ ports and four 100GBASE-X QSFP28 uplinks for high-density enterprise, data-center, and professional AV-over-IP networks. NETGEAR's ordering documentation specifically identifies XSM4344FC-100NES for North America and Europe.
The switch includes a 420W internal power supply and one modular PSU slot for 1+1 power redundancy. It supports Virtual Chassis stacking with non-stop forwarding and hitless failover, plus Layer 3 static, policy-based, and dynamic routing.
The platform is suited to high-bandwidth core, aggregation, and AV-over-IP deployments requiring 10GbE access and 100GbE uplinks. It is not a PoE switch, and the 10G SFP+ ports support 1GbE or 10GbE operation rather than intermediate speeds.
Key Features :
- 40 SFP+ ports provide dense 10GbE network connectivity
- Four QSFP28 ports deliver 100GbE high-speed uplinks
- Virtual Chassis supports resilient switch stacking deployments
- Layer 3 routing enables advanced network architectures
- 1+1 PSU design supports redundant power infrastructure
Specifications :
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | XSM4344FC-100NES |
| Product Type | Fully Managed Switch |
| Series / Model | M4350-40F4C |
| Total Ports | 44 |
| SFP+ Interfaces | 40 × 10GBASE-X |
| QSFP28 Interfaces | 4 × 100GBASE-X |
| Supported SFP+ Speeds | 1GbE / 10GbE |
| Internal Power Supply | 420W |
| Modular PSU Slot | 1; supports 1+1 redundancy |
| Jumbo Frame Support | Up to 12KB |
| Routing | Static, policy-based, dynamic |
| Stacking | Virtual Chassis |
| AV Features | IGMP Plus, AV OS, Engage Controller |
| Form Factor | 1U rack-mountable |
