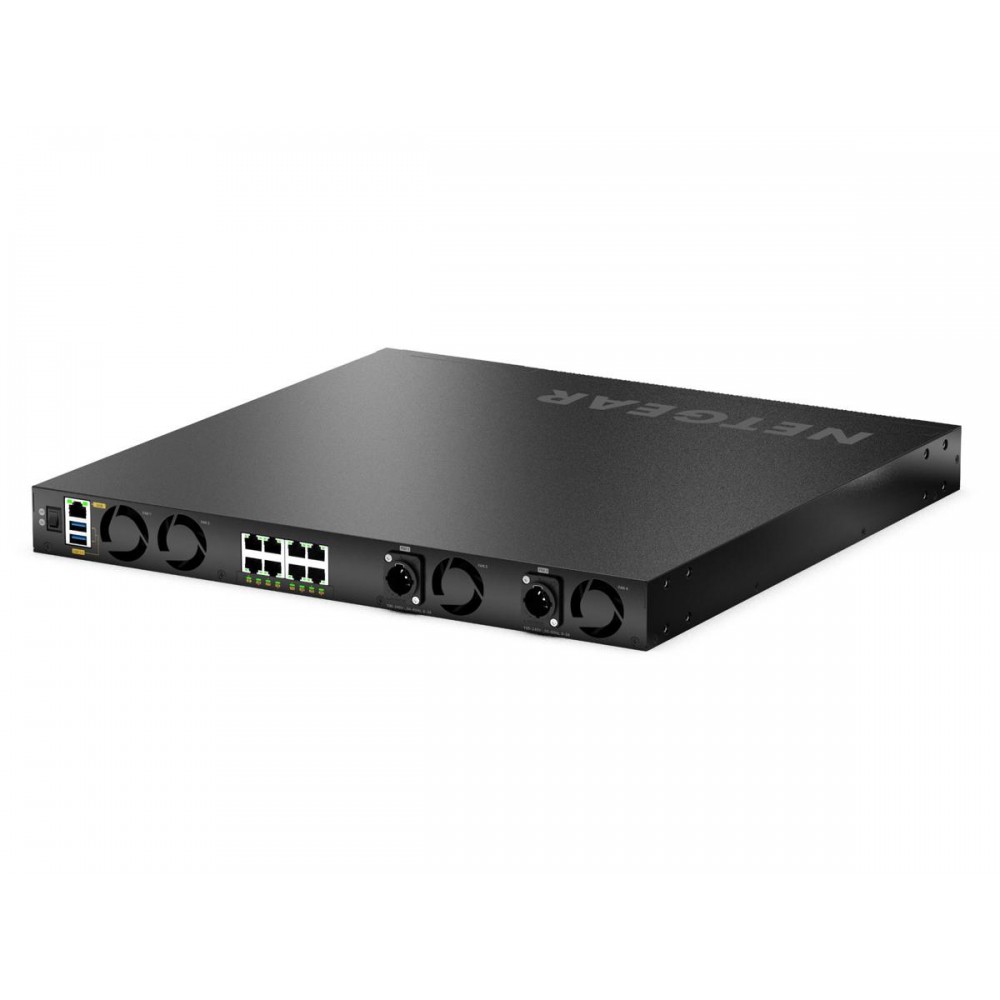

NETGEAR MSM4320-100NES – Managed Ethernet Switch

Overview :

The NETGEAR MSM4320-100NES (M4350-16M4V) is an enterprise-class, fully managed Layer 3 switch purpose-built for demanding AV-over-IP applications, high-density wireless APs, and broadcast media environments. Utilized by systems integrators, live event engineers, and IT infrastructure managers, it solves complex IP multicast deployment challenges with zero-configuration IGMP Plus and dedicated Pro AV profiles.

Featuring 16 x 2.5GbE RJ45 ports (including 8 ruggedized Neutrik etherCON locking connectors) with Ultra60/PoE++ capability, alongside an interchangeable module supplying 4 x 25GbE SFP28 uplink slots. Dual internal 800W power supplies deliver a baseline 530W PoE budget with 1+1 redundancy, scaleable up to a maximum 1,130W total power budget.

Designed for 1U rackmount or tabletop deployment in production environments, broadcast trucks, and enterprise staging environments. Optimized for protocols including SMPTE ST 2110, Dante, NDI, and AES67. Do not use in unmanaged SMB networks or environments requiring full-width short-depth chassis under 16 inches.

Key Features :

• 16 x 2.5G ports with 8 ruggedized Neutrik etherCON locking connectors

• 4 x 25G SFP28 uplinks for ultra-high-bandwidth backbone aggregation

• 90W PoE++ support per port with up to 1,130W dynamic power budget

• Built-in NETGEAR IGMP Plus for automated zero-touch IP multicasting

• Redundant dual internal 800W power supplies for uninterrupted operation

Specifications :
