Detailed Specifications

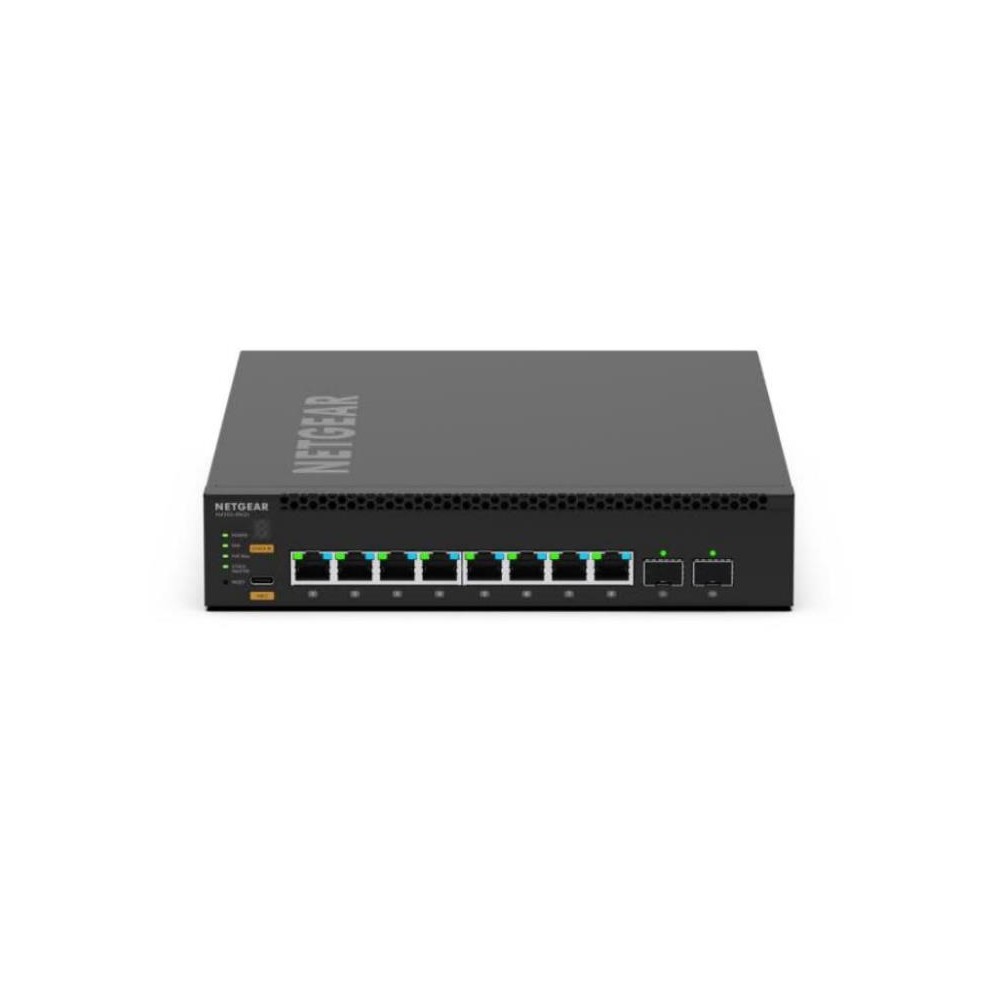

NETGEAR MSM4310-TAANES - Managed Switch
Overview :
The NETGEAR MSM4310-TAANES (M4350-8M2V) is a TAA-compliant, half-width 1U Layer 3 managed switch engineered for AV-over-IP and high-density IT environments.It provides high-bandwidth multicast routing and reliable power delivery for enterprise network administrators, federal agencies, and systems integrators.
Featuring eight 2.5GBASE-T RJ45 PoE++ ports (up to 60W per port) and two 25G SFP28 fiber uplinks, it processes dense multi-gigabit edge traffic with 140 Gbps switching capacity.Pre-configured NETGEAR IGMP Plus and Engage Controller profiles simplify Dante, NDI, and ST 2110 audio/video traffic management out of the box.
Designed for space-constrained rack mounts, AV equipment racks, edge closets, and federal facilities requiring Trade Agreements Act compliance.Supports Virtual Chassis stacking with Non-Stop Forwarding (NSF) for high-availability deployments.
Do not deploy as an outdoor unmanaged switch, or in environments requiring high-port-density 10G copper access without SFP transceivers.
Key Features :
TAA compliant status fits federal, defense, and government procurement.
Eight 2.5G PoE++ ports supply up to 60W per port for powered AV endpoints.
Dual 25G SFP28 slots ensure non-blocking high-speed uplink aggregation.
Pre-configured AV UI profiles accelerate Dante, NDI, and ST 2110 setups.
Half-width 1U form factor fits two units side-by-side in one rack space.
Specifications :
| Property | Specification |
| Brand | NETGEAR |
| Part Number | MSM4310-TAANES |
| Product Type | Managed Switch |
| Switching Capacity | 140 Gbps |
| Forwarding Rate | 104.16 Mpps |
| Access Ports | 8x 2.5GBASE-T RJ45 Ports |
| Uplink Ports | 2x 25G SFP28 Ports |
| PoE Output | IEEE 802.3bt PoE++ (up to 60W per port) |
| Base PoE Budget | 119W (expandable up to 551W via external PSUs) |
| Processor & Memory | Quad-core 1.8 GHz ARM Cortex A57, 4GB DDR4 RAM |
| Form Factor | 1U Half-width Rackmount |
| Layer Support | Layer 3 (Static, Dynamic, and Policy-Based Routing) |
| High Availability | Virtual Chassis Stacking with NSF Hitless Failover |
| Compliance | TAA Compliant |
| Noise Level | 32.1 dB (Quiet Mode @ 25°C) |
