NETGEAR MSM4310-100NES - Fully Managed Switch
Overview :

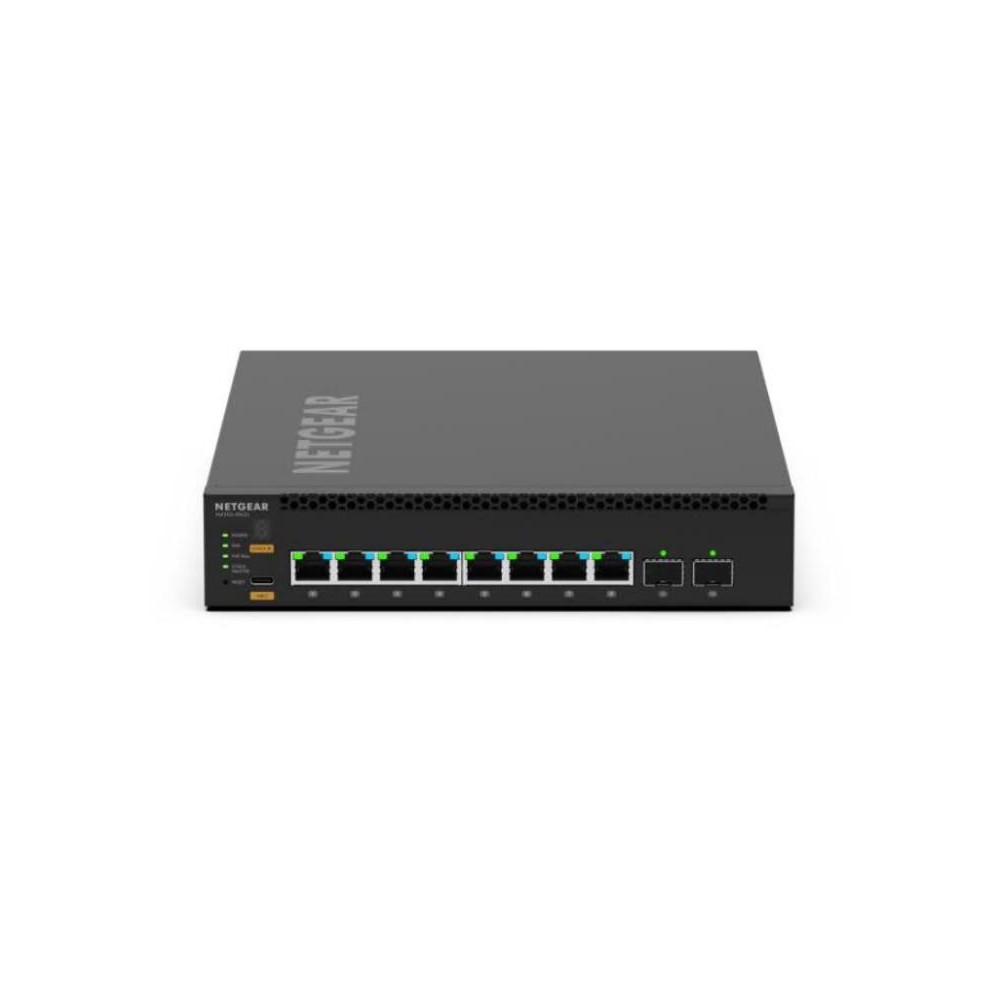

The NETGEAR MSM4310-100NES (M4350-8M2V) is an enterprise-grade, half-width 1U Layer 3 managed switch engineered for high-density AV-over-IP, edge computing, and multi-gigabit access networks.Infrastructure teams deploy this unit to supply multi-gigabit connectivity and scalable Power over Ethernet to IP endpoints, access points, and broadcast appliances.
Featuring eight 2.5G BASE-T RJ45 ports with 802.3bt PoE++ output alongside two 25GBASE-X SFP28 optical uplinks, the system delivers 140 Gbps switching bandwidth.Out of the box, the system operates with a 119W PoE budget via an external APS254W power supply, expandable up to 551W via additional power modules.
Designed for standard 19-inch equipment racks, the half-width enclosure enables dual-unit side-by-side mounting within 1U of space.The switch runs NETGEAR AV OS with pre-configured multicast profiles (IGMP Plus, PTP v2, AES67) for rapid zero-touch deployment. Do not deploy where non-PoE unmanaged switches or simple L2 unmanaged environments are sufficient, or where raw high-density 10G copper ports are required without SFP28 adapters.
Key Features :
Delivers 802.3bt PoE++ up to 60W per port for powered devices.
Includes two 25G SFP28 optical ports for ultra-low latency core uplinks.
Half-width 1U chassis allows dual switch mounting in single rack slot.
Expandable PoE power budget scales from 119W base up to 551W maximum.
Pre-configured NETGEAR IGMP Plus enables instant AV-over-IP multicasting.
Specifications :
| Parameter | Specification |
| Brand | NETGEAR |
| Part Number | MSM4310-100NES |
| Product Type | Managed Switch |
| Downlink Interfaces | 8 x 2.5GbE RJ45 IEEE 802.3bt PoE++ (up to 60W per port) |
| Uplink Interfaces | 2 x 25GbE SFP28 optical slots |
| Switching Capacity | 140 Gbps |
| Forwarding Rate | 104.16 Mpps |
| PoE Budget | 119W (Base) / Up to 551W (Expanded) |
| Processor & Memory | Quad-Core 1.8GHz ARM Cortex-A57 / 4GB DDR4 |
| Form Factor | 1U Half-Width Rack-mountable |
| Forwarding Architecture | Layer 3 Dynamic, Static, Policy-Based Routing |
| Jumbo Frames | Up to 12,000 Bytes |
| Management Protocol | NETGEAR AV OS, Engage Controller, CLI, Web GUI, SNMP v1/v2c/v3 |
| Power Consumption | Max Power Draw: 682W (with full PoE) / Idle: 61.2W |
| Noise Level | 32.1 dB (Quiet Mode at 25°C) |
