Detailed Specifications

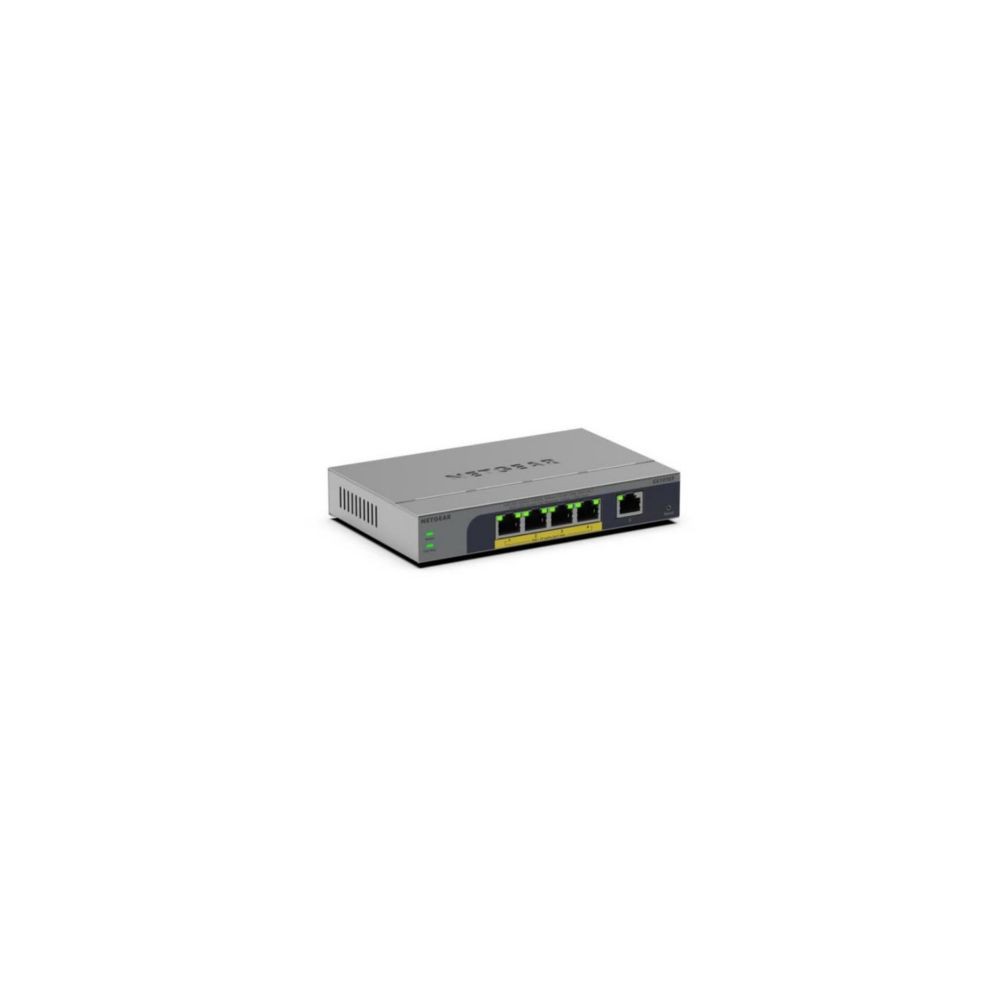

NETGEAR GS105EP-100NAS Easy Smart PoE Switch
Overview :
The NETGEAR GS105EP-100NAS is a 5-port Gigabit Ethernet Easy Smart managed switch with four PoE+ ports. It is designed for small business networks, surveillance systems, VoIP deployments, and wireless access points where local PoE delivery and basic network management are required.
All five ports support 10/100/1000BASE-T connectivity, while four ports provide IEEE 802.3at PoE+ with up to 30 W per port. The total PoE budget is up to 63 W, suitable for powering compatible cameras, access points, and VoIP devices.
Management features include VLAN configuration, QoS, PoE prioritization, per-port PoE power limits, PoE scheduling, loop protection, and broadcast storm control. The fanless enclosure supports desktop or wall-mounted deployment.
The GS105EP is intended for compact edge deployments rather than rack-scale switching. It should not be selected where higher port density, SFP/fiber interfaces, multi-gigabit Ethernet, or advanced enterprise switching features are required.
Key Features :
- Five Gigabit ports support compact edge network deployments
- Four PoE+ ports provide up to 30 W per port
- 63 W PoE budget powers multiple connected devices
- VLAN and QoS controls support basic traffic management
- Fanless desktop or wall mounting enables quiet deployment
Specifications :
| Specification | Verified Value |
|---|
| Brand | NETGEAR |
| Part Number | GS105EP-100NAS |
| Product Type | Easy Smart PoE+ Managed Switch |
| Ethernet Ports | 5 × RJ-45 Gigabit |
| Ethernet Speed | 10/100/1000BASE-T |
| PoE+ Ports | 4 |
| PoE Standard | IEEE 802.3at |
| PoE Power per Port | Up to 30 W |
| Total PoE Budget | Up to 63 W |
| Switching Capacity | 10 Gb/s |
| Jumbo Frame Support | 9,216 bytes |
| MAC Address Table | 2K |
| Management | Easy Smart managed |
| Form Factor | Desktop / wall mountable |
| Operating Temperature | 0-40°C |
