Detailed Specifications

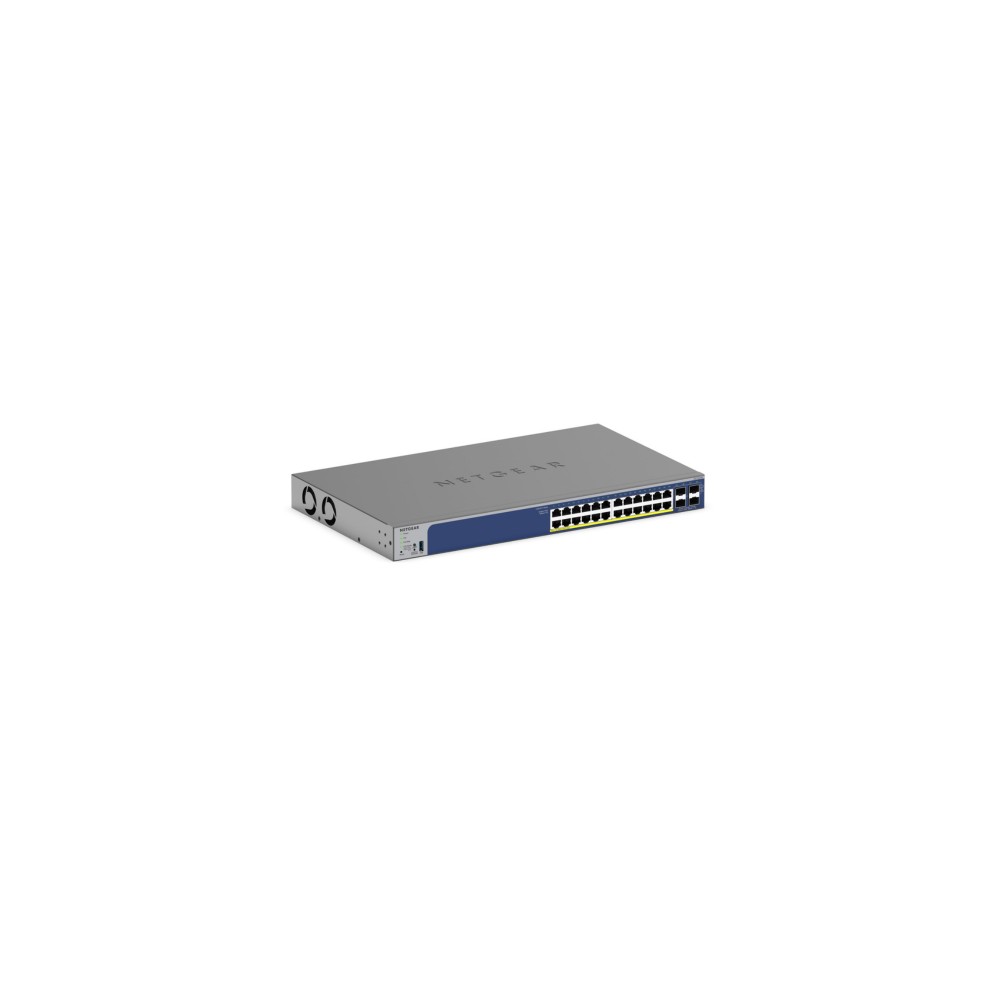

NETGEAR GS728TXUP-300NAS 24-Port Gigabit PoE Smart Switch
Overview :
The NETGEAR GS728TXUP-300NAS is a 24-port Gigabit PoE+ and PoE++ smart switch designed for converged business networks. It provides Ethernet connectivity and power delivery for devices such as access points, IP cameras, and VoIP endpoints.
The switch provides 24 × 10/100/1000BASE-T RJ45 ports, with 16 ports supporting IEEE 802.3at PoE+ and 8 ports supporting IEEE 802.3bt PoE++. The total PoE power budget is 420W. Four additional 1000/10G SFP+ ports provide fiber uplink capability.
It is suitable for rack-mounted network deployments where Gigabit edge connectivity, PoE power, and higher-speed fiber uplinks are required. The unit is a standalone smart switch with optional NETGEAR Insight cloud management.
It should not be selected where stacking is required, as the verified specifications identify the switch as non-stackable.
Key Features :
- 24 Gigabit RJ45 ports support powered edge devices
- Eight PoE++ ports deliver up to 60W per port
- Sixteen PoE+ ports deliver up to 30W per port
- Four SFP+ ports provide 10GbE fiber uplinks
- 420W PoE budget supports dense device deployments
Specifications :
| Specification | Value |
|---|
| Brand | NETGEAR |
| Part Number | GS728TXUP-300NAS |
| Product Type | 24-Port Gigabit PoE++ Smart Switch |
| RJ45 Ports | 24 × 10/100/1000BASE-T |
| PoE+ Ports | 16 × IEEE 802.3at |
| PoE++ Ports | 8 × IEEE 802.3bt |
| Maximum PoE Output | 60W per PoE++ port |
| PoE+ Output | 30W per PoE+ port |
| PoE Power Budget | 420W |
| SFP+ Ports | 4 × 1000/10GBase-X |
| Switching Capacity | 128Gb/s |
| Forwarding Rate | 83.52Mpps |
| MAC Address Table | 16K |
| Form Factor | Rack-mountable |
| Operating Temperature | 0-50°C |
