Teltonika TSF010000001 Flat Ethernet Switch View larger

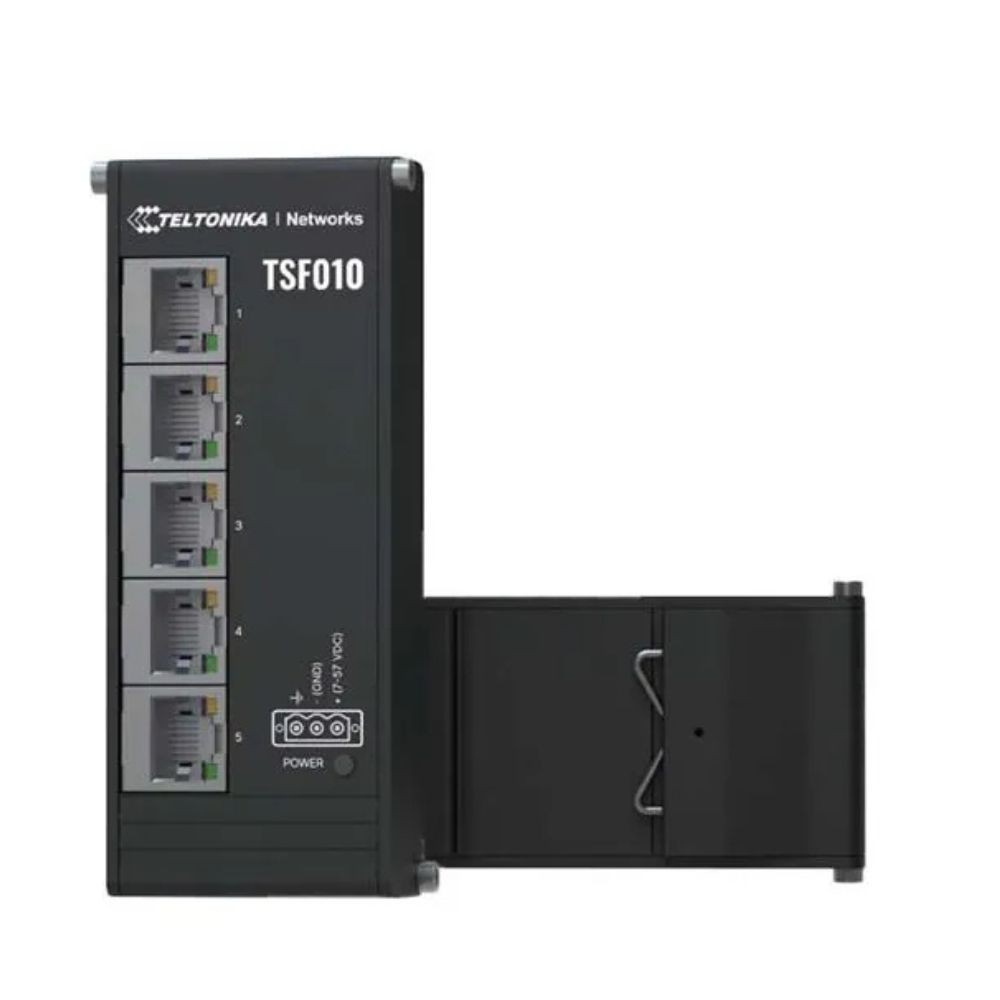

Teltonika TSF010000001 Flat Ethernet Switch

TSF010000001

New

5‑port industrial unmanaged switch

×




Detailed Specifications

Teltonika TSF010000001 Flat Ethernet Switch

Overview

Teltonika TSF010000001 is a compact unmanaged industrial Ethernet switch with five Fast Ethernet ports for connecting multiple devices within a local network. It supports 10/100 Mbps speeds per port with auto‑MDI/MDIX crossover and delivers non‑blocking bandwidth suitable for simple network segments. The unit accepts a wide 7 – 57 V DC input and mounts directly to a DIN rail in cabinets or control panels. It is built for industrial environments with extended temperature tolerance and robust housing.

Key Features

• 5 × 10/100 Mbps RJ45 Ethernet ports
• Wide 7 – 57 V DC power input
• Integrated DIN‑rail mounting
• Compact, flat aluminum housing

Technical Specifications

SpecificationValue
BrandTeltonika
Part NumberTSF010000001
Product TypeIndustrial Unmanaged Ethernet Switch
Ethernet Ports5 × RJ45, 10/100 Mbps
Bandwidth (Non‑blocking)10 Gbps
MAC Address Table2 K entries
Jumbo Frame Support9216 bytes
Input Voltage7 – 57 V DC
Power ConsumptionIdle ~1 W, Max ~1.5 W
Operating Temperature−40 °C to +75 °C
Operating Humidity5 % to 95 % non‑condensing
Ingress ProtectionIP30
Housing MaterialAnodized aluminum
MountingIntegrated DIN rail bracket
