Teltonika TSW030000000 8 Port Industrial Ethernet Switch View larger

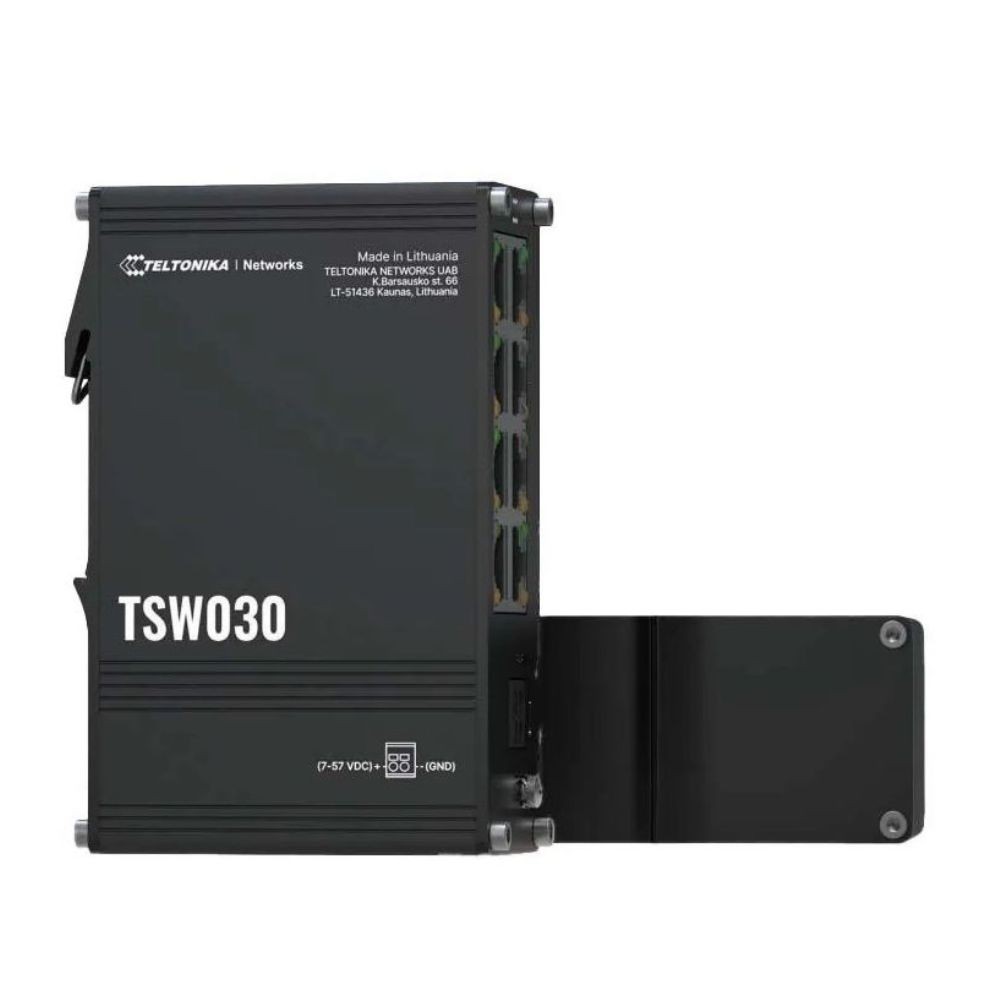

Teltonika TSW030000000 8 Port Industrial Ethernet Switch

TSW030000000

New

8‑Port Industrial Ethernet Switch
×




Detailed Specifications

Teltonika TSW030000000 8 Port Industrial Ethernet Switch

Overview

The Teltonika TSW030000000 is an unmanaged industrial Ethernet switch providing eight 10/100 Mbps RJ45 ports for basic wired networking in industrial and edge environments. It supports wide DC input voltage and integrated DIN‑rail or wall mount options, enabling straightforward installation in cabinets, automation panels, and remote sites. The rugged IP30 enclosure and extended operating temperature range make it suitable for harsh conditions. This switch is suitable where simple, reliable Layer 2 connectivity is needed without configuration overhead.

Key Features

• 8× 10/100 Mbps RJ45 ports
• Wide 7–57 V DC input range
• DIN‑rail and wall mountable
• IP30 rugged industrial housing

Technical Specifications

SpecificationDetails
Brand Teltonika
Part Number TSW030000000
Product Type 8‑Port Industrial Ethernet Switch
Number of Ports 8 × RJ45 10/100 Mbps
Voltage Input 7–57 V DC
Mounting DIN‑rail, wall mount
Ingress Protection IP30
Operating Temp. −40 °C to 75 °C
Connector Type RJ45 copper
Configuration Unmanaged fixed
Weight ~256 g
