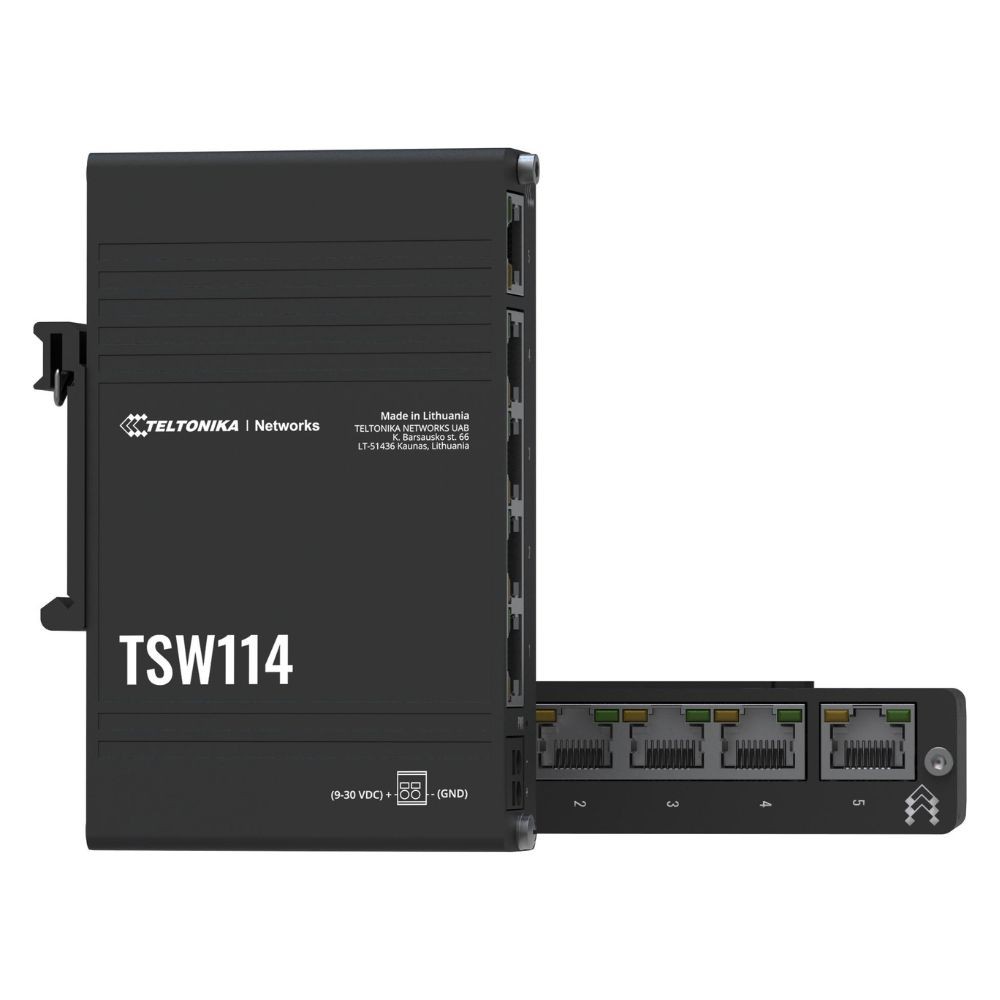

Teltonika TSW114000001 5 Port Gigabit ethernet Switch View larger

Teltonika TSW114000001 5 Port Gigabit ethernet Switch

TSW114000001

New

5-Port Gigabit Industrial Switch

×




Detailed Specifications

Teltonika TSW114000001 5 Port Gigabit ethernet Switch

Overview

Teltonika TSW114000001 is an unmanaged Gigabit Ethernet switch suited for industrial and automation networks requiring basic high-speed wired connectivity. It offers five 10/100/1000 Mbps RJ45 ports and supports DIN-rail mounting for compact installation. The rugged aluminium housing and wide input voltage range make it suitable for harsh environments and edge cabinets. It operates reliably across a broad temperature range for stable network links.

Key Features

• 5× 10/100/1000 Mbps RJ45 ports
• Unmanaged plug-and-play design
• DIN-rail mounting support
• Wide 9-30 V DC input

Technical Specifications

SpecificationDetails
BrandTeltonika
Part NumberTSW114000001
Product Type5-Port Gigabit Industrial Switch
Ethernet Ports5× RJ45 10/100/1000 Mbps
Data Rates10/100/1000 Mbps
MountingDIN rail integrated
Power Input9-30 V DC
HousingAluminium
Operating Temp.−40 °C to 75 °C
MAC Address Table~2000 entries
Jumbo Frame9216 bytes
Dimensions~113.1×27.4×80.5 mm
Weight~180-220 g
Ingress ProtectionIP20
