Detailed Specifications

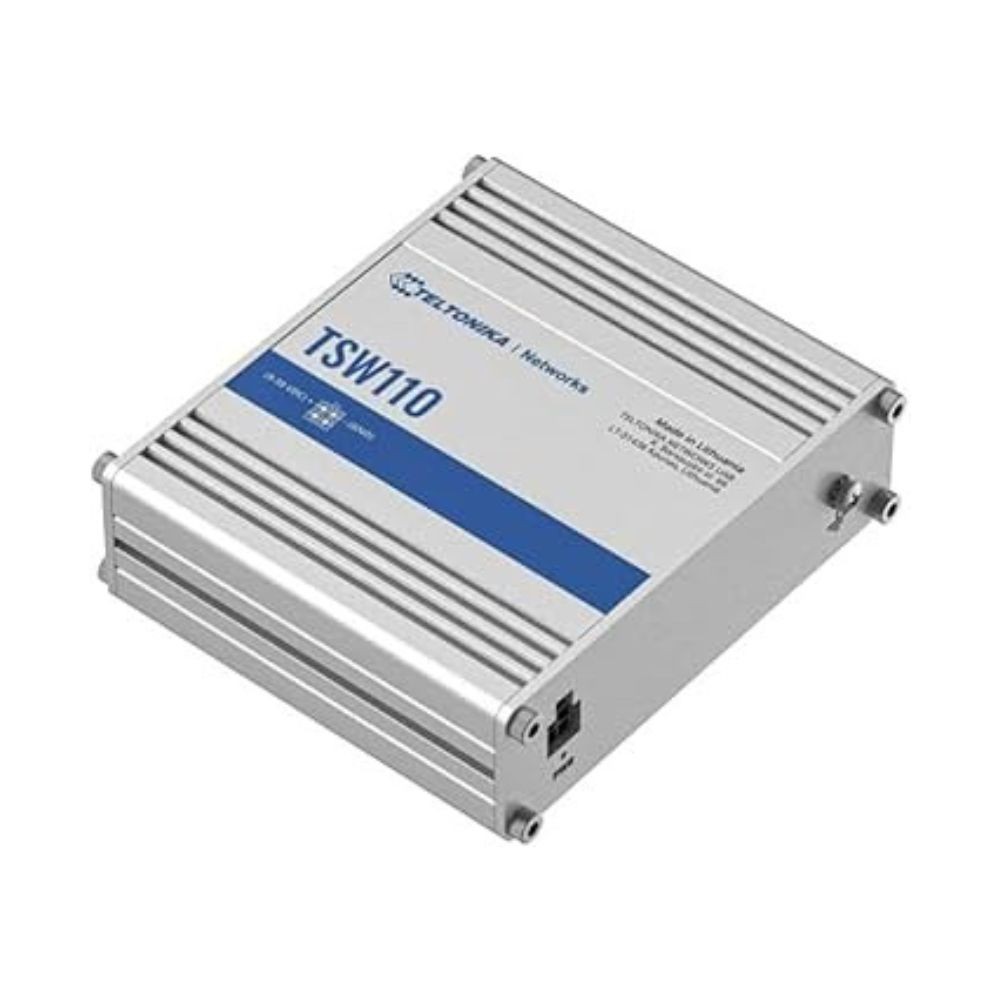

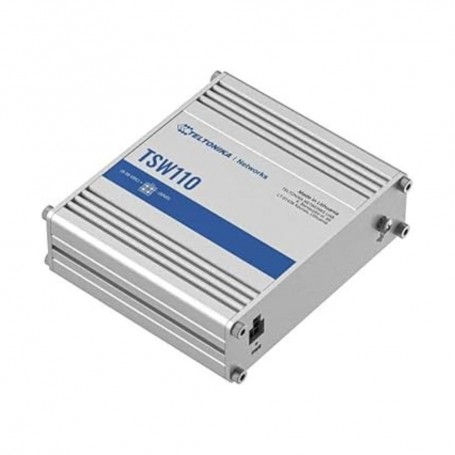

Teltonika TSW110000001 4Port Gigabit Ethernet Switch
Overview
The Teltonika TSW110000001 is an unmanaged industrial Layer 2 Gigabit Ethernet switch designed for straightforward high-speed connectivity between devices in automation, manufacturing, and edge networks. It provides four 10/100/1000 Mbps RJ45 ports with auto MDI/MDIX for plug-and-play linking without manual configuration. The rugged aluminium enclosure and wide input voltage support make it suitable for installation in cabinets and industrial control panels. It operates across a wide temperature range and can be mounted on DIN rails or flat surfaces to integrate into existing infrastructure with minimal footprint.
Key Features
• 4× 10/100/1000 Mbps RJ45 ports
• 8 Gbps switching capacity
• Wide 9-30 V DC input range
• Rugged industrial housing
Technical Specifications
| Specification | Details |
|---|
| Brand | Teltonika |
| Part Number | TSW110000001 |
| Product Type | 4-Port Gigabit Industrial Switch |
| Ethernet Ports | 4× RJ45 10/100/1000 Mbps |
| Switching Capacity | 8 Gbps |
| MAC Address Table | 2048 entries |
| Jumbo Frame | Up to 9216 bytes |
| Power Input | 9-30 V DC |
| PoE Support | Passive PoE on Port 1 (Mode B) |
| Housing | Aluminium |
| Dimensions | 90 × 30 × 78 mm |
| Weight | ~200 g |
| Mounting | DIN rail, surface |
| Operating Temperature | −40 °C to 75 °C |
| Ingress Protection | IP30 |
