Detailed Specifications

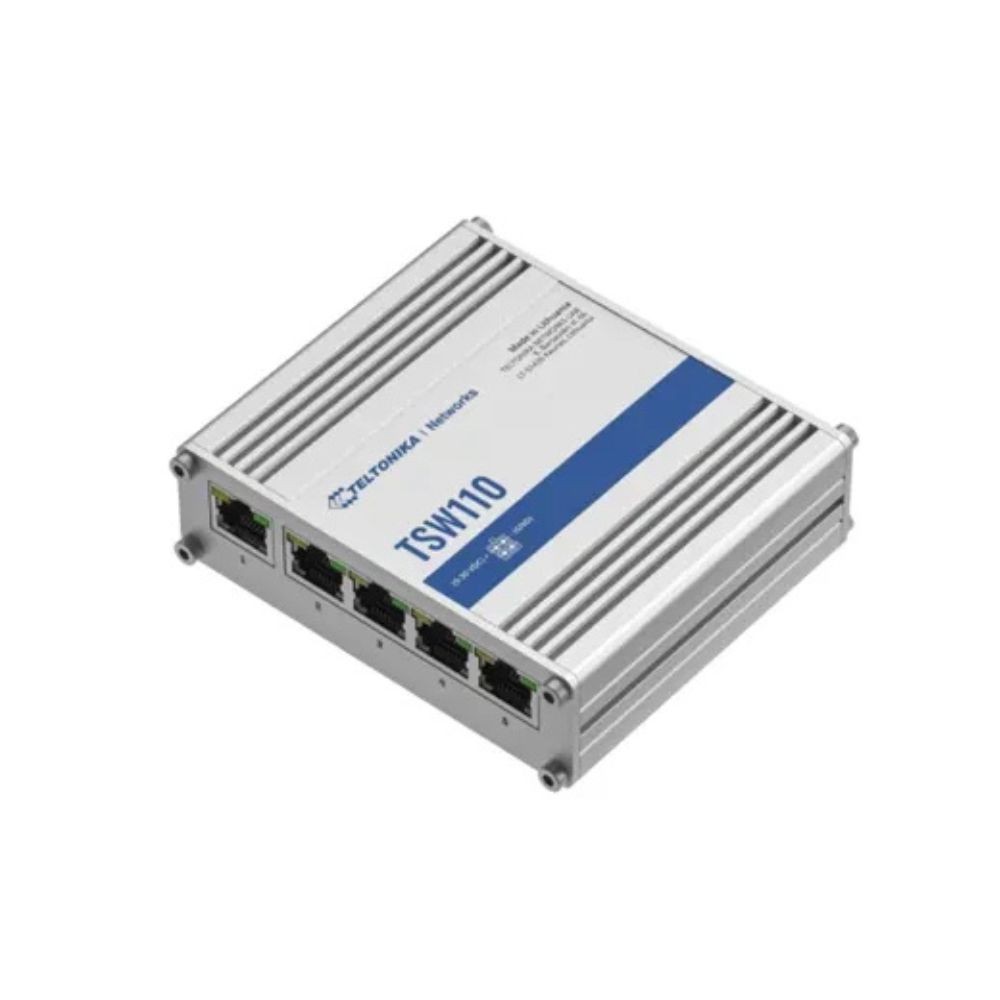

Teltonika TSW110000090 5Port Gigabit Ethernet Switch
Overview
The Teltonika TSW110000090 is a compact unmanaged Layer 2 Gigabit Ethernet switch engineered for industrial and automation networks that need straightforward, high-bandwidth connectivity between devices. It provides five 10/100/1000 Mbps RJ45 ports with auto MDI/MDIX for plug-and-play linking of endpoints without configuration. The rugged aluminium housing and wide power input range support deployments in cabinets, enclosures, and controlled industrial spaces. It operates reliably across −40 °C to 75 °C and can be mounted on DIN rails or surfaces to integrate into existing infrastructure with minimal footprint.
Key Features
• 5× 10/100/1000 Mbps RJ45 ports
• 10 Gbps non-blocking capacity
• Wide 9-30 V DC input range
• Rugged aluminium industrial housing
Technical Specifications
| Specification | Details |
|---|
| Brand | Teltonika |
| Part Number | TSW110000090 |
| Product Type | 5-Port Gigabit Industrial Switch |
| Ethernet Ports | 5× RJ45 10/100/1000 Mbps |
| Switching Capacity | 10 Gbps non-blocking |
| MAC Address Table | 2048 entries |
| Jumbo Frame | Up to 9216 bytes |
| Power Input | 9-30 V DC (4-pin industrial connector) |
| PoE Support | Passive PoE via Port 1 (Mode B) |
| Housing | Aluminium |
| Dimensions | 100 × 30 × 85 mm |
| Weight | 227 g |
| Mounting | DIN rail, surface, wall (kits required) |
| Operating Temp. | −40 °C to 75 °C |
| Ingress Protection | IP30 |
