Detailed Specifications

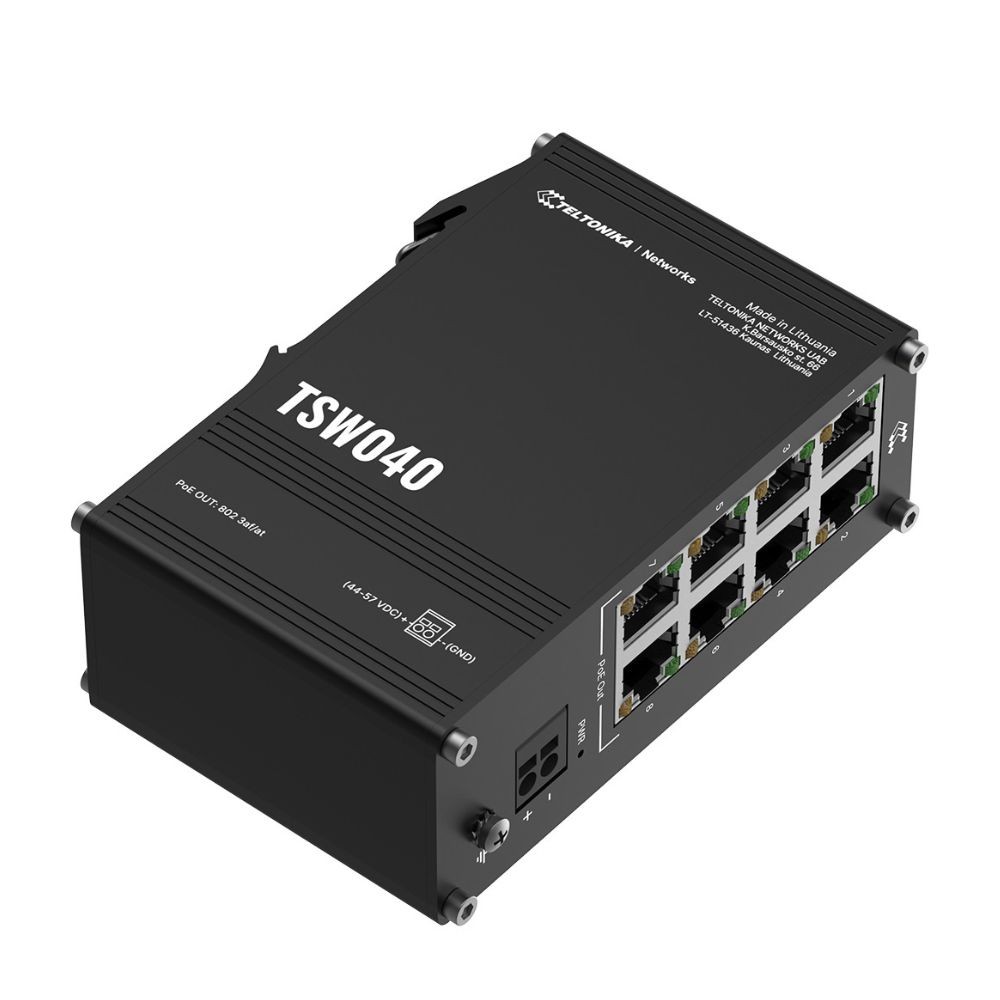

Teltonika TSW040000000 8Port PoE+ Industrial Switch
Overview
The Teltonika TSW040000000 is an unmanaged industrial Ethernet switch with eight PoE+ enabled Fast Ethernet ports for data and power distribution in edge and industrial networks. It delivers up to 30 W per port and a 240 W total PoE budget, supporting IEEE 802.3af/at standards for connected devices such as cameras and access points. It accepts a wide DC input range (7-57 V) and mounts directly on DIN rails, making it suitable for cabinets, enclosures, and automation panels. The compact design with IP30 protection fits harsh temperature environments found in industrial and remote deployments.
Key Features
• 8× 10/100 Mbps PoE+ RJ45 ports
• 240 W total PoE power budget
• 20 Gbps switching capacity
• Wide 7-57 V DC input range
Technical Specifications
| Specification | Details |
|---|
| Brand | Teltonika |
| Part Number | TSW040000000 |
| Product Type | 8-Port PoE+ Industrial Switch |
| Ethernet Ports | 8× RJ45 10/100 Mbps |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| PoE Power per Port | Up to 30 W |
| Total PoE Budget | 240 W |
| Switching Capacity | 20 Gbps |
| MAC Address Table | 2048 entries |
| Networking Standards | IEEE 802.3i/u/ab/az/x |
| DC Input Voltage | 7-57 V DC |
| Mounting | DIN-rail |
| Operating Temperature | −40 °C to 75 °C |
| Ingress Protection | IP30 |
| Weight | 280 g |
