Detailed Specifications

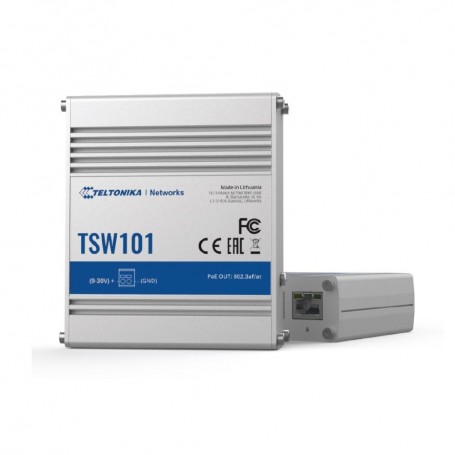

Teltonika TSW101000000 PoE+ Gigabit Ethernet Switch
Overview
The Teltonika TSW101000000 is an unmanaged Ethernet switch designed for engineers integrating power and data distribution in automotive, industrial, or edge network segments. It offers five Gigabit Ethernet ports, four of which supply Power-over-Ethernet (PoE+) to connected devices, reducing the need for separate power wiring. The unit accepts wide DC input voltage and fits compact installations where space and power are constrained. It is suited for connecting PoE-powered devices like cameras, APs, or controllers in vehicles, remote cabinets, and field infrastructures.
Key Features
• Five 10/100/1000 Mbps Ethernet ports
• Four 802.3af/at PoE+ output ports
• 9-30 V DC industrial input
• Rugged aluminum housing IP30
Technical Specifications
| Specification | Details |
|---|
| Brand | Teltonika |
| Part Number | TSW101000000 |
| Product Type | PoE+ Gigabit Ethernet Switch |
| Ethernet Ports | 5× 10/100/1000 Mbps RJ45 |
| PoE Support | 4× PoE+ ports (802.3af/at) |
| PoE Power per Port | Up to 30 W |
| Total PoE Budget | Up to 60 W |
| Switching Capacity | 10 Gbps |
| MAC Address Table | 2000 entries |
| Jumbo Frame Support | Up to 9216 bytes |
| Power Input | 9-30 V DC |
| Housing | Aluminum, IP30 |
| Dimensions | 115 × 32 × 95 mm (4.52 × 1.26 × 3.74 in) |
| Weight | 354 g (0.78 lbs) |
| Operating Temp. | −40 °C to 75 °C |
