Teltonika TSW101000001 PoE+ Gigabit Ethernet Switch View larger

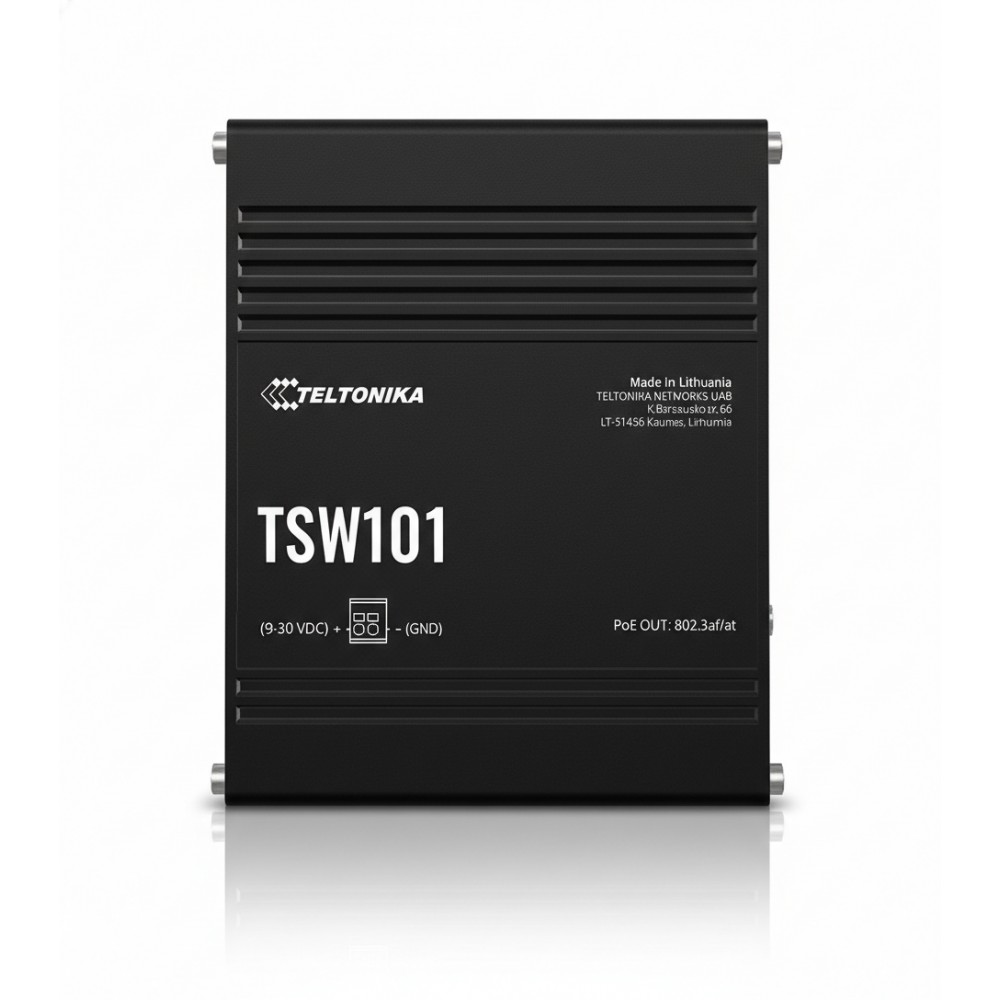

Teltonika TSW101000001 PoE+ Gigabit Ethernet Switch

TSW101000001

New

5-Port Gigabit PoE+ Industrial Switch
×




Detailed Specifications

Teltonika TSW101000001 PoE+ Gigabit Ethernet Switch

Overview

The Teltonika TSW101000001 is a 5-port Gigabit Ethernet switch with integrated Power-over-Ethernet support, designed for engineers and integrators extending wired networks with power and data delivery over the same cable. Industrial-grade and compact, it provides four PoE+ capable ports for powering access points, cameras, and IoT devices while connecting them at Gigabit speeds. It’s suited for industrial automation, vehicle networks, and compact edge network segments where rugged mounting and DC power operation are required. The switch offers plug-and-play simplicity with passive configuration and supports IEEE networking standards for stable performance.

Key Features

• 5× Gigabit RJ45 Ethernet ports
• 4× PoE+ output ports (IEEE 802.3af/at)
• Passive DC 9–30 V power input
• Rugged aluminum housing IP30 rated

Technical Specifications

SpecificationDetails
Brand Teltonika
Part Number TSW101000001
Product Type PoE+ Gigabit Ethernet Switch
Ethernet Ports 5× 10/100/1000 Mbps RJ45
PoE Support 4× PoE+ ports (802.3af/at)
PoE Power Budget 60 W total
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
Switching Capacity 10 Gbps
MAC Address Table 2000 entries
Jumbo Frame Support Up to 9216 bytes
Power Input DC 9–30 V
Housing Aluminum, IP30
Dimensions 115 × 32 × 95 mm (4.53 × 1.26 × 3.74 in)
Weight 384 g (0.85 lbs)
Operating Temp. −40 °C to 75 °C
