Detailed Specifications

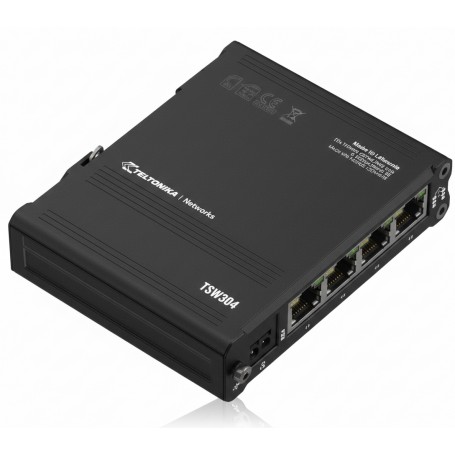

Teltonika TSW304000000 Gigabit Ethernet Switch
Overview
The Teltonika TSW304000000 is an unmanaged Gigabit Ethernet switch designed for engineers and technicians who need basic LAN expansion with both copper and fiber connectivity. It features four 10/100/1000 Mbps RJ45 ports and one 1 Gbps SFP slot for fiber uplink without configuration or management overhead. The plug-and-play design with auto-MDI/MDIX on all RJ45 ports makes it suitable for small offices, branches, industrial segments, or edge networks where simple connectivity is required. The compact industrial form factor supports desktop or DIN-rail mounting for flexible installation.
Key Features
• 4× Gigabit RJ45 ethernet ports
• 1× 1 Gbps SFP fiber uplink
• Unmanaged plug-and-play operation
• Auto-MDI/MDIX on all RJ45 ports
Technical Specifications
| Specification | Details |
|---|
| Brand | Teltonika |
| Part Number | TSW304000000 |
| Product Type | Unmanaged Ethernet Switch |
| RJ45 Ports | 4× 10/100/1000 Mbps |
| SFP Port | 1× 1 Gbps SFP |
| Management | Unmanaged (no configuration) |
| Auto-MDI/MDIX | Yes, on RJ45 ports |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.44 Mpps |
| VLAN Support | Not supported |
| Power Input | 12 V DC, 1 A adapter |
| Mounting | Desktop or DIN-rail |
| Dimensions | 154 × 90 × 35 mm (6.06 × 3.54 × 1.38 in) |
| Weight | ~0.32 kg (0.71 lbs) |
| Operating Temp. | 0 °C to 50 °C |
