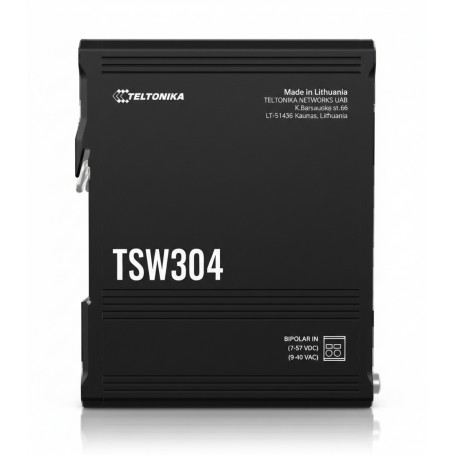

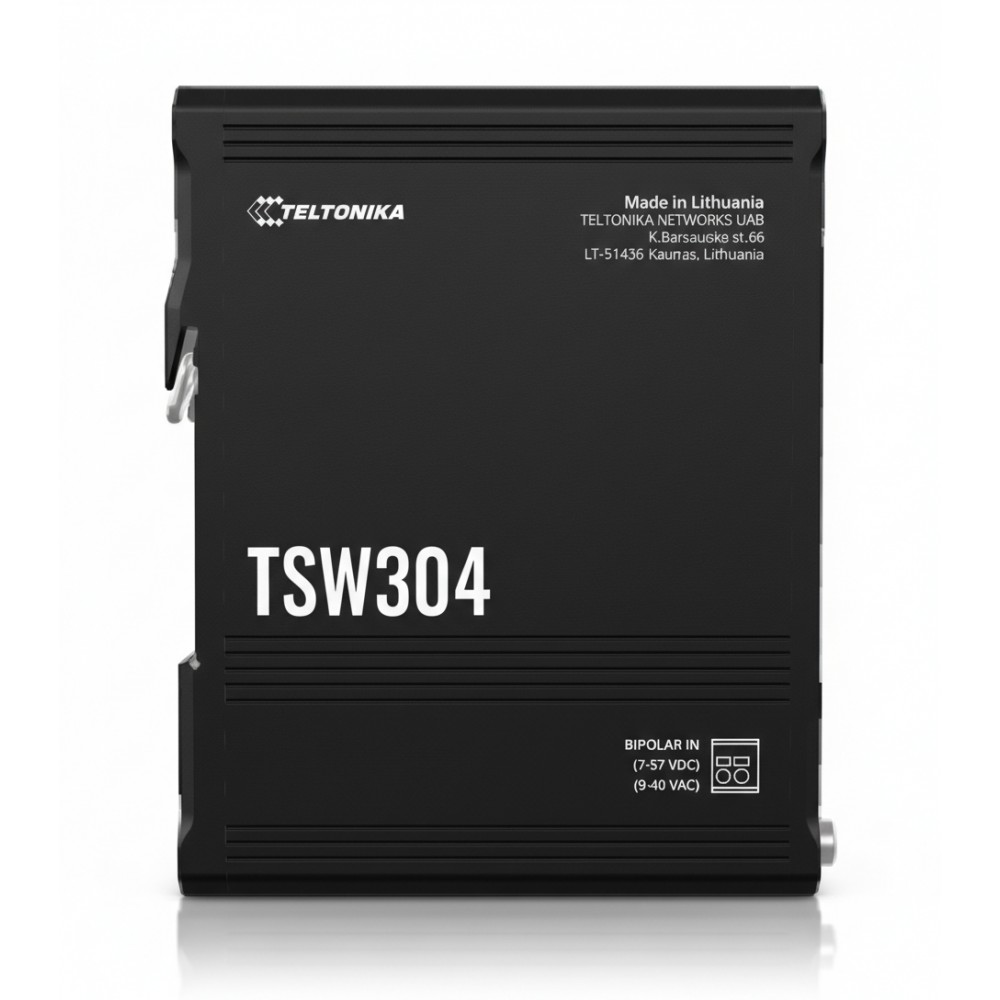

Teltonika TSW304000001 Gigabit Ethernet Switch View larger

Teltonika TSW304000001 Gigabit Ethernet Switch

TSW304000001

New

Unmanaged 4-Port Gigabit + SFP Switch
×




Detailed Specifications

Teltonika TSW304000001 Gigabit Ethernet Switch

Overview

The Teltonika TSW304000001 is an unmanaged Gigabit Ethernet switch designed for engineers and network technicians who need flexible LAN expansion with both copper and fiber connectivity. It provides four 10/100/1000 Mbps RJ45 ports and one dedicated 1 Gbps SFP uplink for fiber segment connection without configuration. The plug-and-play design with auto-MDI/MDIX across the RJ45 interfaces eliminates setup requirements, making it suitable for offices, branches, industrial segments, or edge networks that require mixed media links. Its compact industrial form factor supports desktop or DIN-rail mounting where basic unmanaged connectivity is needed.

Key Features

• 4× Gigabit RJ45 ports
• 1× dedicated 1 Gbps SFP uplink
• Unmanaged plug-and-play operation
• Auto-MDI/MDIX on all RJ45 ports

Technical Specifications

SpecificationDetails
Brand Teltonika
Part Number TSW304000001
Product Type Unmanaged Ethernet Switch
RJ45 Ports 4× 10/100/1000 Mbps
SFP Port 1× 1 Gbps SFP
Management Unmanaged (no configuration)
Auto-MDI/MDIX Yes, on RJ45 ports
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.44 Mpps
VLAN Support Not supported
Power Input 12 V DC, 1 A adapter
Mounting Desktop or DIN-rail
Dimensions 154 × 90 × 35 mm (6.06 × 3.54 × 1.38 in)
Weight ~0.32 kg (0.71 lbs)
Operating Temp. 0 °C to 50 °C
