Detailed Specifications

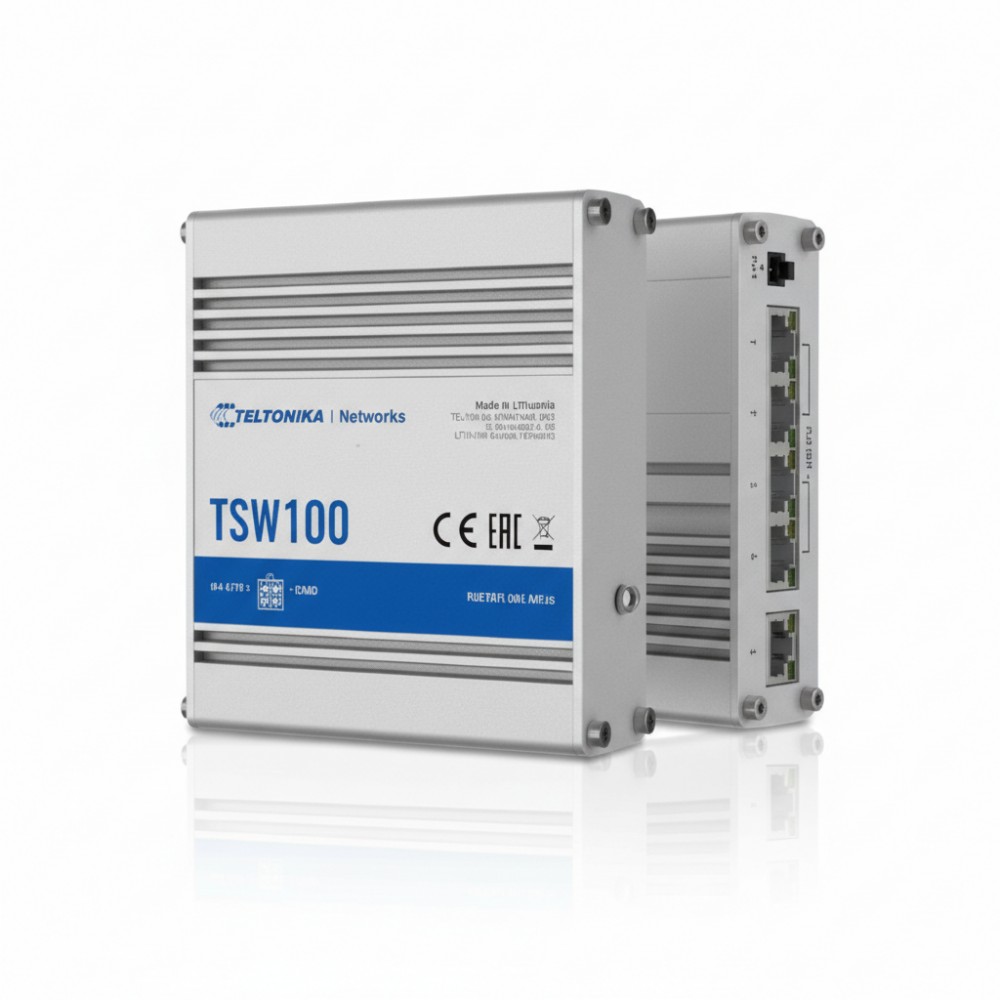

Teltonika TSW100000010 Fast Ethernet Switch
Overview
The Teltonika TSW100000010 is an unmanaged Fast Ethernet switch designed for engineers and technicians who need simple, reliable 10/100 Mbps LAN connectivity without configuration. It provides five RJ45 ports with auto-MDI/MDIX on all interfaces for plug-and-play operation, making it suitable for small offices, branch segments, or industrial networks where basic wired connections are required. The compact industrial form factor supports desktop or DIN-rail mounting for flexible installation in constrained spaces. This switch is ideal for extending legacy networks or connecting devices that don't require Gigabit throughput.
Key Features
• 5× 10/100 Mbps RJ45 ports
• Unmanaged plug-and-play operation
• Auto-MDI/MDIX on all ports
• Compact industrial form factor
Technical Specifications
| Specification | Details |
|---|
| Brand | Teltonika |
| Part Number | TSW100000010 |
| Product Type | Unmanaged Fast Ethernet Switch |
| Port Count | 5× 10/100 Mbps RJ45 |
| Management | Unmanaged (no configuration) |
| Auto-MDI/MDIX | Yes, on all ports |
| Switching Capacity | 1 Gbps |
| Packet Forwarding Rate | 0.744 Mpps |
| VLAN Support | Not supported |
| Power Input | 12 V DC, 1 A adapter |
| Mounting | Desktop or DIN-rail |
| Dimensions | 120 × 80 × 26 mm (4.72 × 3.15 × 1.02 in) |
| Weight | ~0.15 kg (0.33 lbs) |
| Operating Temp. | 0 °C to 50 °C |
