Detailed Specifications

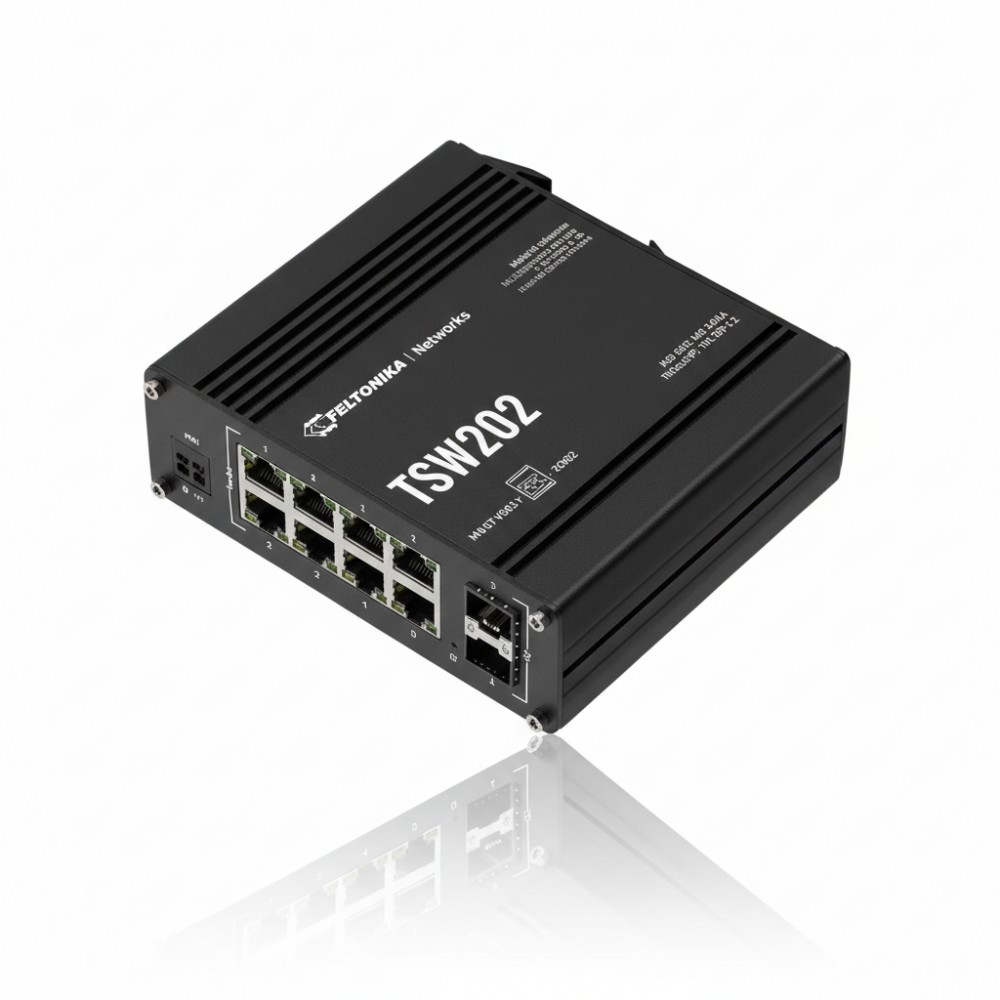

Teltonika TSW202000001 Managed Industrial PoE Ethernet Switch
Overview :
The Teltonika TSW202000001 is a managed industrial PoE+ Ethernet switch that combines high-speed Gigabit wired connectivity with advanced network management and PoE power delivery. It provides eight Gigabit RJ45 ports with PoE+ output, two SFP uplink slots for fiber connectivity, and support for industrial network protocols such as EtherNet/IP, Profinet, and MRP. The switch runs a Layer 2/Layer 3 capable operating system designed for granular control over traffic, VLANs, PoE behaviour, and network security. It fits industrial automation, edge networking, warehouse, and enterprise infrastructure scenarios where centralized power and managed switching are required.
Key Features :
Managed PoE+ switch with 8 × Gigabit RJ45 ports
2 × SFP slots for fiber uplinks
Supports EtherNet/IP, Profinet, MRP industrial protocols
Advanced VLAN, QoS, and network management
Technical Specifications :
| Specification | Detail |
|---|
| Brand | Teltonika |
| Part Number | TSW202000001 |
| Product Type | Managed Industrial PoE+ Ethernet Switch |
| Ethernet Ports | 8 × 10/100/1000 Mbps RJ45 |
| SFP Ports | 2 × SFP fiber uplinks |
| PoE Standards | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| PoE Power per Port | Up to 30 W |
| Total PoE Power Budget | 240 W |
| Management | Layer 2 with additional Layer 3 features |
| Supported Protocols | EtherNet/IP, Profinet, MRP |
| Bandwidth (Non-blocking) | ~20 Gbps |
| Packet Buffer | ≥128 KB |
| MAC Address Table | ~8 K entries |
| VLAN & QoS | VLAN, STP/RSTP, QoS, port isolation |
| Power Input | Industrial DC input range (≈7-57 V DC) |
| Mounting | DIN-rail or surface |
| Ingress Protection | IP30 |
| Operating Temp. | -40 °C to 75 °C |
| Housing | Rugged aluminum industrial enclosure |
| Indicators | Power, port link/activity LEDs |
