Detailed Specifications

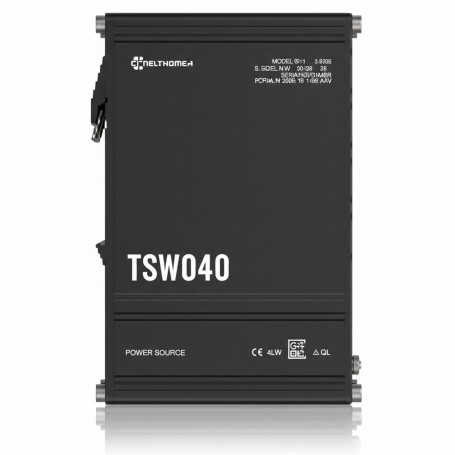

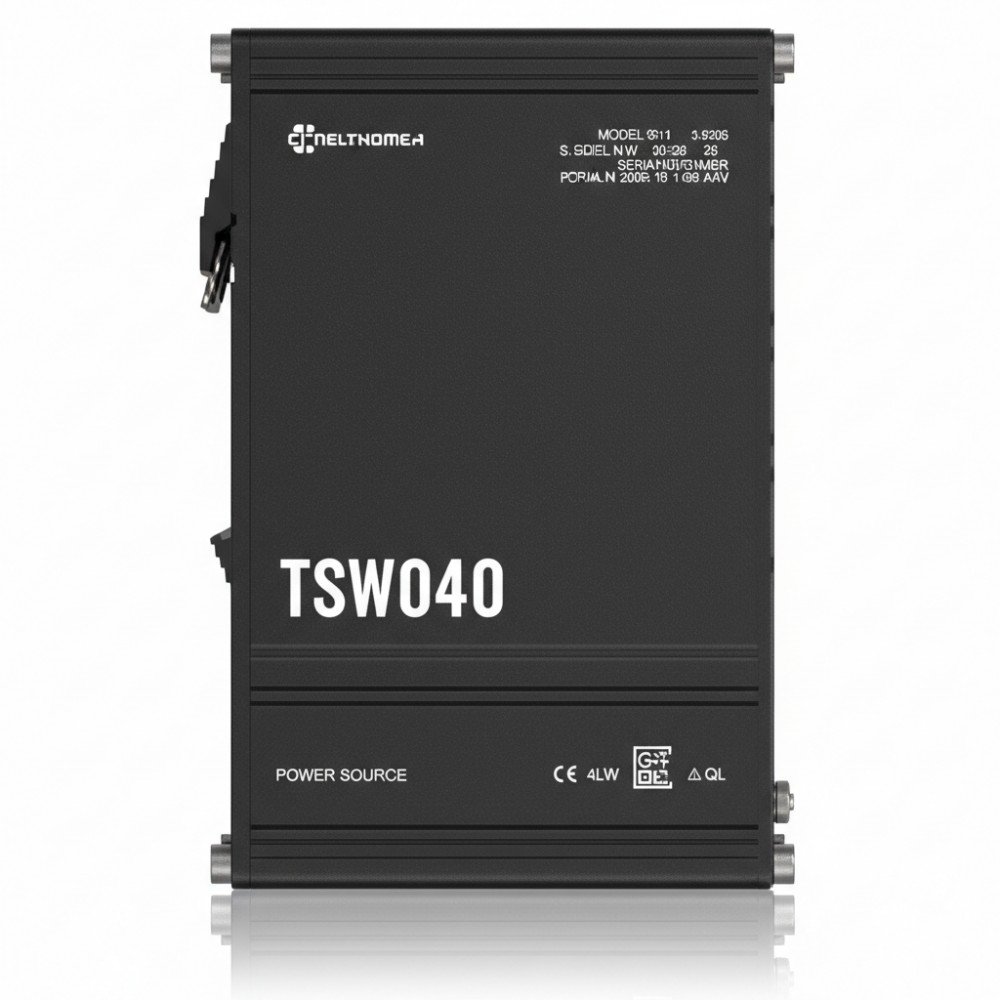

Teltonika TSW040000200 Industrial PoE Ethernet Switch
Overview :
The Teltonika TSW040000200 is an unmanaged industrial Ethernet switch with eight PoE+-capable ports and an integrated power supply option for industrial networking. It delivers Power-over-Ethernet on all ports with a total budget that supports up to 30 W per port, enabling simple centralised powering of connected devices. The switch accepts a wide DC input range and mounts easily on DIN rails or flat surfaces, making it suitable for harsh environments. Its design fits factory automation, building systems, security networks, and edge deployments where basic data connectivity and power delivery are needed without configuration overhead.
Key Features :
8 × Fast Ethernet PoE+ ports with 30 W per port
Wide DC input range for industrial power systems
Rugged aluminum enclosure, DIN-rail compatible
Unmanaged plug-and-play operation
Technical Specifications :
| Specification | Detail |
|---|
| Brand | Teltonika |
| Part Number | TSW040000200 |
| Product Type | Industrial PoE+ Ethernet Switch |
| Ethernet Ports | 8 × RJ45 10/100 Mbps |
| PoE Standard | IEEE 802.3af/at PSE (PoE+) |
| PoE Power Budget | 240 W total (30 W per port) |
| Power Input | 7-57 V DC industrial range |
| Power Connector | 2-pin industrial DC socket |
| Non-blocking Bandwidth | 20 Gbps |
| Packet Buffer | 128 KB |
| Status LEDs | Power + 8 × port status |
| Housing | Anodised aluminium |
| Mounting | DIN rail / wall / flat surface |
| Operating Temp. | -40 °C to 75 °C |
| Humidity | 5 %-95 % non-condensing |
| Ingress Protection | IP30 |
| Weight | ~280 g |
| Dimensions (W×H×D) | ~113 × 41 × 75 mm |
