Detailed Specifications

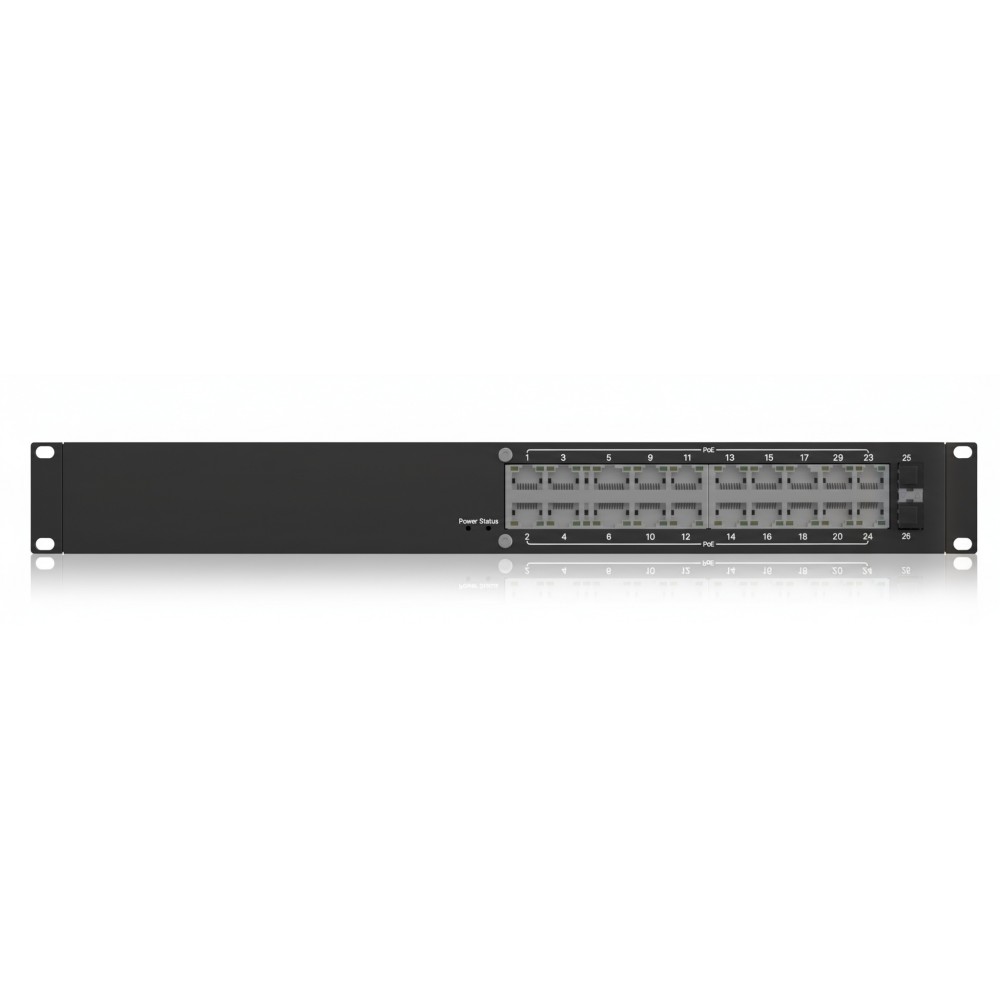

Teltonika SWM282000000 PoE+ Managed Ethernet Switch
Overview
The Teltonika SWM282000000 is a rack-mountable managed Ethernet switch engineered for network engineers deploying high-density power-over-Ethernet distribution and advanced traffic control. It provides 24 Gigabit Ethernet PoE+ ports with a 300 W power budget and four Gigabit SFP uplinks, enabling both powered device support and fiber connectivity in enterprise and industrial LANs. The unit supports Layer 2+ management with optional Layer 3 functions and industrial protocol support for segmented, resilient networks. It runs TSWOS and can be monitored and configured locally or via remote management systems.
Key Features
• 24× Gigabit Ethernet PoE+ ports (30 W)
• 4× Gigabit SFP uplink slots
• Total PoE budget 300 W
• Layer 2+ managed with routing features
Technical Specifications
| Specification | Details |
|---|
| Brand | Teltonika |
| Part Number | SWM282000000 |
| Product Type | Managed PoE+ Ethernet Switch |
| Ethernet Ports | 24× 10/100/1000 Mbps RJ45 PoE+ |
| SFP Slots | 4× 1 Gbps SFP |
| PoE Standard | IEEE 802.3af/at PoE+ |
| PoE Power per Port | Up to 30 W |
| Total PoE Power Budget | 300 W |
| Switching Capacity | 56 Gbps (non-blocking) |
| Packet Forwarding Rate | 83.33 Mpps |
| Management | L2+ with VLAN, QoS, static/dynamic routing |
| Power Input | AC 100-240 V, 50/60 Hz (C14 inlet) |
| Operating Temp. | 0 °C to 50 °C |
| Dimensions | 483 × 44 × 234 mm (19″ 1U) |
| Weight | 2.29 kg (5.05 lbs) |
| Housing | Rack mount metal, IP30 |
