Detailed Specifications

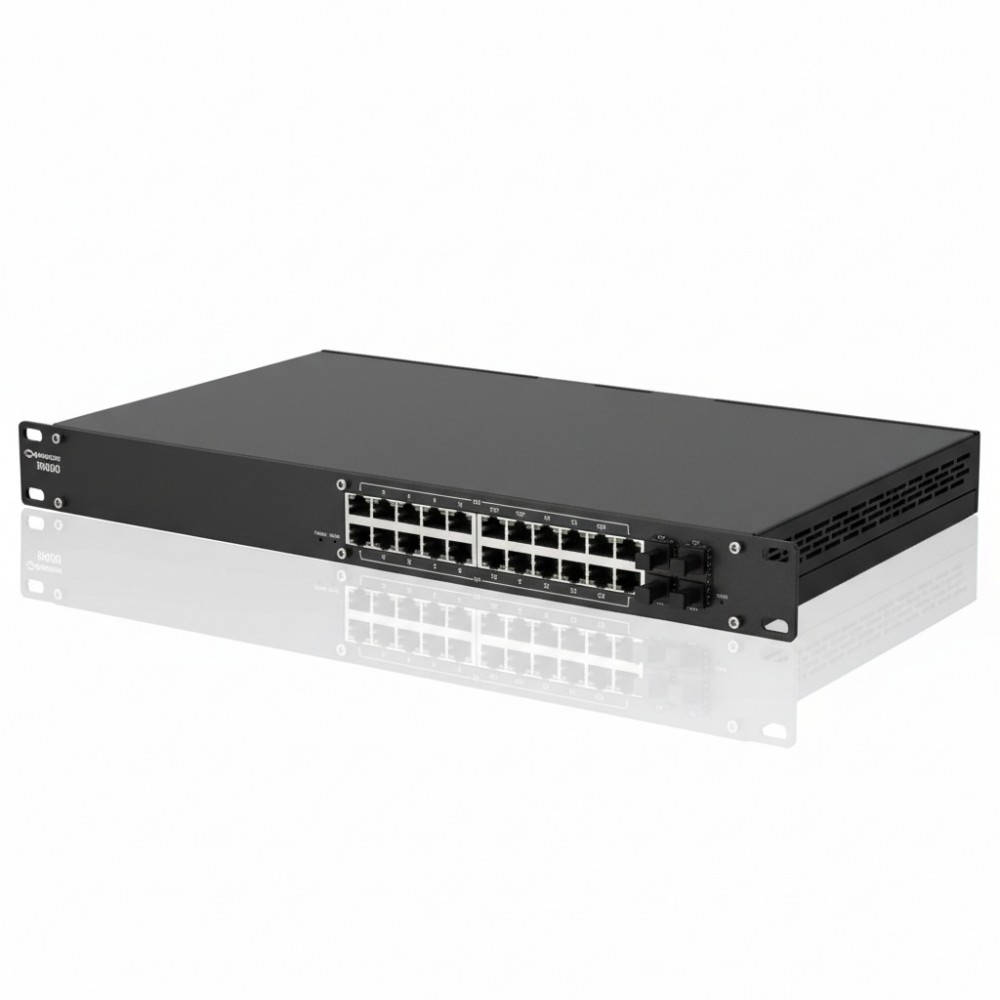

Teltonika SWM282000200 PoE+ Managed Ethernet Switch
Overview
The Teltonika SWM282000200 is a managed PoE+ Ethernet switch built for network engineers and integrators needing robust LAN power delivery and traffic management in enterprise and industrial environments. It delivers 24 Gigabit RJ45 PoE+ ports with up to 30 W per port and four 1 Gb/s SFP uplink slots for fiber connectivity, supporting non-blocking switching and advanced VLAN, LACP, QoS and industrial protocol support. The switch fits centralized network closets, CCTV aggregations, Wi-Fi backhaul, and IIoT systems where power over Ethernet and high port density are required. It runs TSW-OS (OpenWrt-based) for configuration, monitoring, and security functions.
Key Features
• 24× Gigabit Ethernet PoE+ ports (30 W per port)
• 4× 1 Gb/s SFP uplink slots
• Total PoE budget of 300 W
• Advanced L2/L3 features & industrial protocols
Technical Specifications
| Specification | Details |
|---|
| Brand | Teltonika |
| Part Number | SWM282000200 |
| Product Type | Managed PoE+ Ethernet Switch |
| Ethernet Ports | 24× 10/100/1000 Mbps RJ45 PoE+ |
| SFP Slots | 4× 1 Gb/s |
| PoE Standard | IEEE 802.3af/at (PoE+) |
| PoE Power per Port | Up to 30 W |
| Total PoE Budget | 300 W |
| Switching Capacity | 56 Gb/s |
| Forwarding Rate | 83.33 Mpps |
| Management | TSW-OS (VLAN, LACP, QoS, 802.1X, RADIUS) |
| Industrial Protocols | PROFINET, EtherNet/IP, MRP |
| Operating Temp. | 0 °C to 50 °C |
| Dimensions | 483 × 44 × 234 mm (19″ 1U) |
| Weight | 2.29 kg (5.05 lbs) |
| Housing | Anodized aluminum, rack mount |
