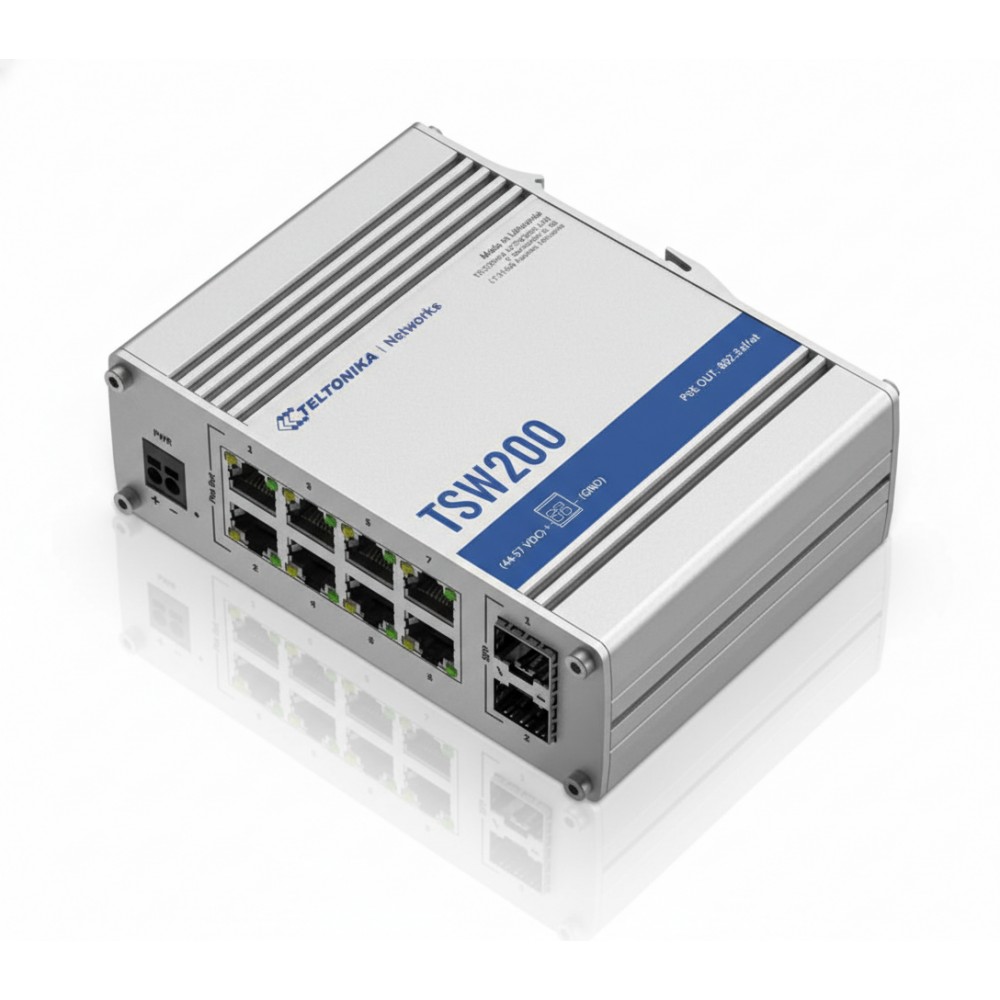

Teltonika TSW200000070 Industrial Unmanaged PoE Switch View larger

Teltonika TSW200000070 Industrial Unmanaged PoE Switch

TSW200000070

New

Teltonika TSW200 Industrial PoE+ Switch

×




Detailed Specifications

Teltonika TSW200000070 Industrial Unmanaged PoE Switch

Overview :

The Teltonika TSW200000070 is a robust industrial unmanaged switch designed to provide reliable connectivity and power in demanding environments. This kit includes the TSW200 switch unit paired with a compatible US power supply, ensuring immediate deployment capabilities for enterprise and industrial applications. Engineered with eight Gigabit Ethernet ports supporting PoE+ standards, it delivers both data and power to edge devices such as IP cameras, wireless access points, and access control systems. The addition of two SFP ports allows for long-range fiber optic communication, making it an ideal solution for large-scale facilities like warehouses, factories, and outdoor monitoring stations. Its rugged aluminum housing and wide operating temperature range ensure consistent performance where standard commercial switches would fail.

Key Features :

• Eight Gigabit Ethernet ports with IEEE 802.3af and 802.3at PoE+ support
• Two SFP ports for long-distance fiber optic network expansion
• High power budget of up to 240W for power-hungry edge devices
• Rugged aluminum housing with IP30 ingress protection rating
• Wide operating temperature range from -40 Celsius to 75 Celsius
• Includes 250W US power supply and DIN rail mounting kit

Specifications :

BrandTeltonika Networks
Part NumberTSW200000070
Product CategoryIndustrial Unmanaged PoE+ Switch
Ethernet Ports8 x 10/100/1000 Mbps (PoE+)
Fiber Ports2 x SFP Slots
PoE Standards802.3af/at (Type 1 and Type 2)
Total PoE BudgetUp to 240W (at PSE)
Bandwidth20 Gbps (Non-blocking)
Input Voltage7-57 VDC (44-57 VDC required for PoE)
Housing MaterialFull Aluminum
Mounting OptionsDIN Rail, Wall, Flat Surface
Dimensions132 x 44.2 x 95.1 mm
Operating Temperature-40 to 75 Degrees Celsius
Ingress ProtectionIP30
Included Accessories250W US Power Supply, DIN Rail Kit
