Detailed Specifications

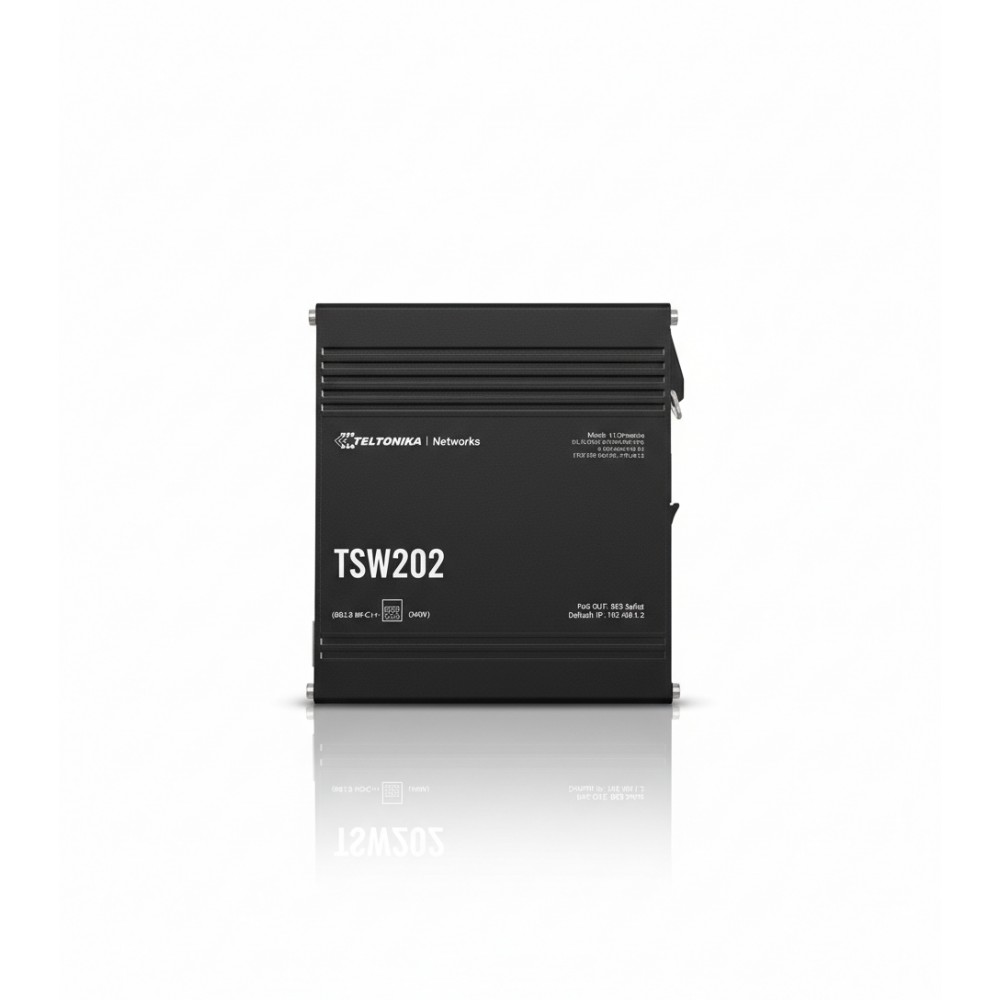

Teltonika TSW202000040 Managed PoE+ Industrial Switch
Overview :
The Teltonika TSW202000040 is a professional managed Ethernet switch designed to provide granular network control and centralized power distribution for industrial environments. Engineered for automation, manufacturing, and heavy-duty logistics applications, this device combines Layer 2 management with Layer 3 features to ensure efficient data traffic handling. It runs on TSWOS, a specialized operating system built for intuitive configuration of protocols such as Profinet, MRP, and EtherNet/IP. With a rugged anodized aluminum housing and integrated DIN rail mounting, this switch withstands extreme temperatures and vibrations, making it an ideal choice for connecting sensors, IP cameras, and access points in harsh operational settings.Key Features :
• Features eight Gigabit Ethernet ports with IEEE 802.3af and 802.3at PoE+ support for powering external devices.
• Includes two SFP ports to facilitate long-range fiber optic communication and network expansion.
• Runs on TSWOS for advanced management of loop protection, VLANs, and data processing protocols.
• Supports industrial protocols including Profinet, EtherNet/IP, and MRP for automated data processing.
• Built with a rugged aluminum housing that tolerates operating temperatures from -40 to 75 degrees Celsius.
• Integrated DIN rail bracket allows for quick and secure installation in control cabinets.
Specifications :
| Brand | Teltonika Networks |
| Part Number | TSW202000040 |
| Category | Managed Ethernet Switches |
| Interface | 8 x RJ45 (PoE+), 2 x SFP |
| PoE Standards | IEEE 802.3af, IEEE 802.3at |
| Total PoE Budget | Up to 240 W (at PSE) |
| Switching Capacity | 20 Gbps (Non-blocking) |
| Operating System | TSWOS (Teltonika Networks OS) |
| Supported Protocols | Profinet, EtherNet/IP, MRP, STP/RSTP |
| Input Voltage Range | 7-57 VDC (44-57 VDC for PoE) |
| Operating Temperature | -40°C to 75°C |
| Housing Material | Anodized Aluminum |
| Mounting | Integrated DIN Rail |
| Dimensions (W x H x D) | 132 x 44.2 x 122.2 mm |
| Weight | 610 g |
