Detailed Specifications

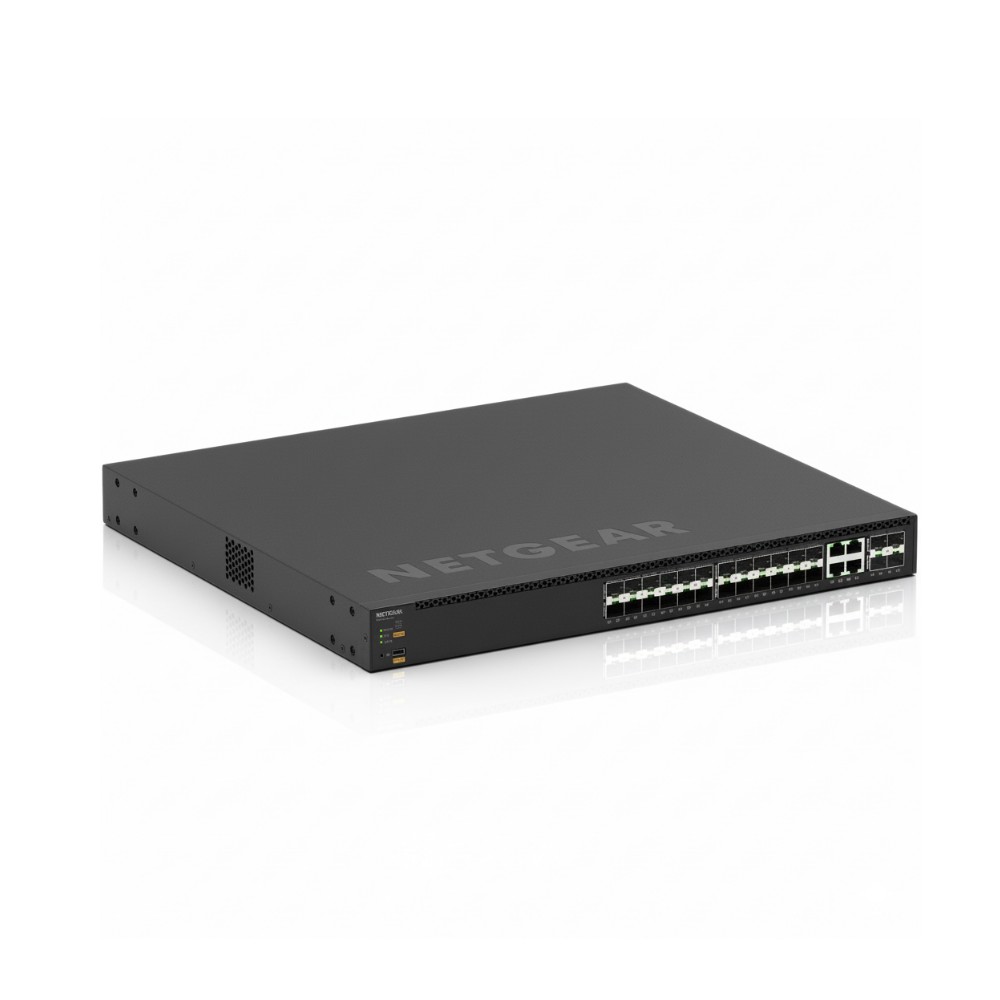

NETGEAR MSM4328F-100NES - 24-Port Managed Switch for AV-over-IP
Overview :
The NETGEAR MSM4328F-100NES is a fully managed Layer 3 switch tailored for AV-over-IP deployments. It offers 24 SFP ports supporting 1G and 2.5G speeds, along with 4 Combo 10GBASE-T/SFP+ ports. The switch features a 240W internal power supply and supports modular power redundancy with compatible APS modules. Designed for rack-mount installations, it operates in a 1U form factor and is optimized for environments requiring low acoustic noise levels.
Key Features
24x 1G/2.5G SFP ports and 4x Combo 10GBASE-T/SFP+ ports
240W internal power supply with 1+1 modular redundancy
Layer 3 routing capabilities including static, policy-based, and dynamic routing
Quiet operation with fan noise level of 30 dB at 25°C
Specifications :
| Specification | Details |
|---|
| Brand | NETGEAR |
| Part Number | MSM4328F-100NES |
| Product Type | Fully Managed Layer 3 Switch |
| Ports | 24x 1G/2.5G SFP, 4x Combo 10GBASE-T/SFP+ |
| Switching Capacity | 200 Gbps |
| Forwarding Rate | 148.8 Mpps |
| CPU | Quad-Core ARM Cortex-A57, up to 1.8 GHz |
| Memory | 4 GB DDR4 |
| Flash Memory | Not specified |
| Power Supply | 240W internal; 1 slot for modular redundancy (APS600Wv3, APS1200Wv2, APS2000Wv2) |
| Power Consumption | Max: 115.5W, Standby: 39W |
| Noise Level | 30 dB at 25°C |
| Dimensions (W x D x H) | 440 x 400 x 43.2 mm |
| Weight | 7.38 kg (16.27 lb) |
| Rack Mountable | Yes (1U form factor) |
