Detailed Specifications

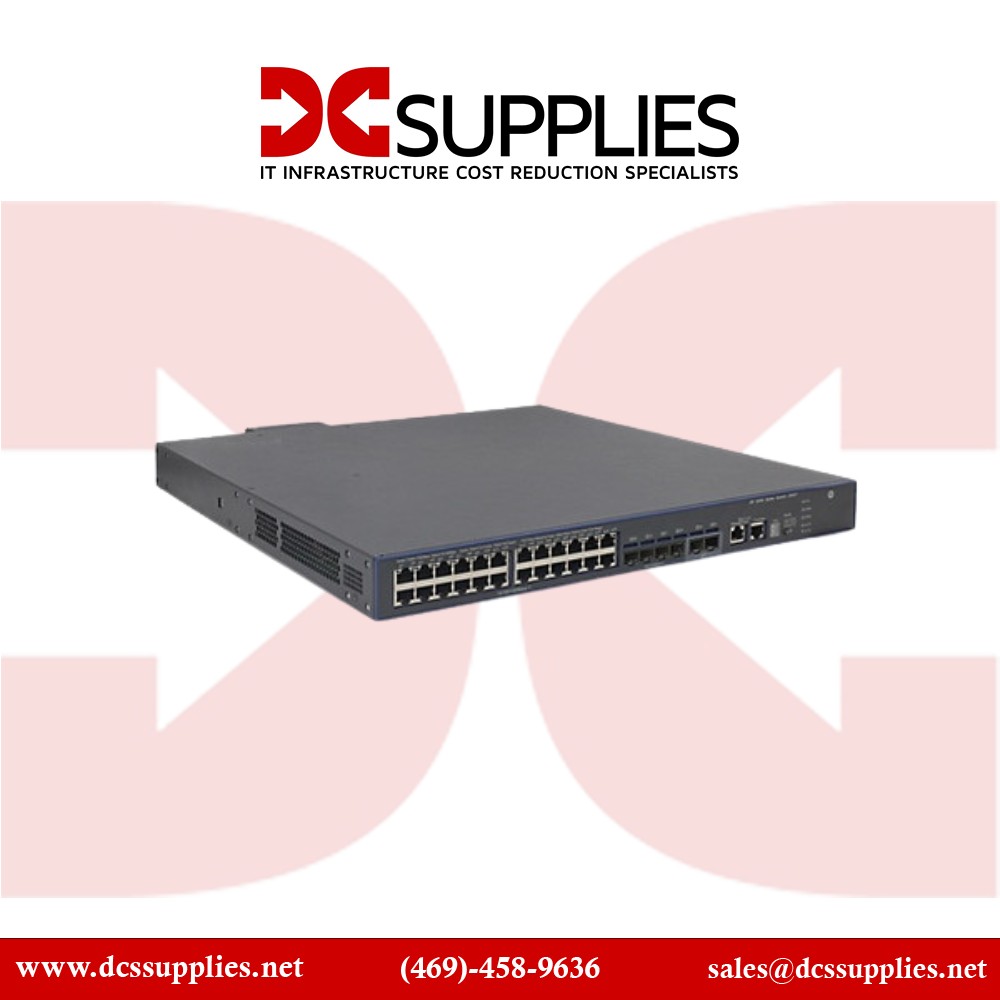

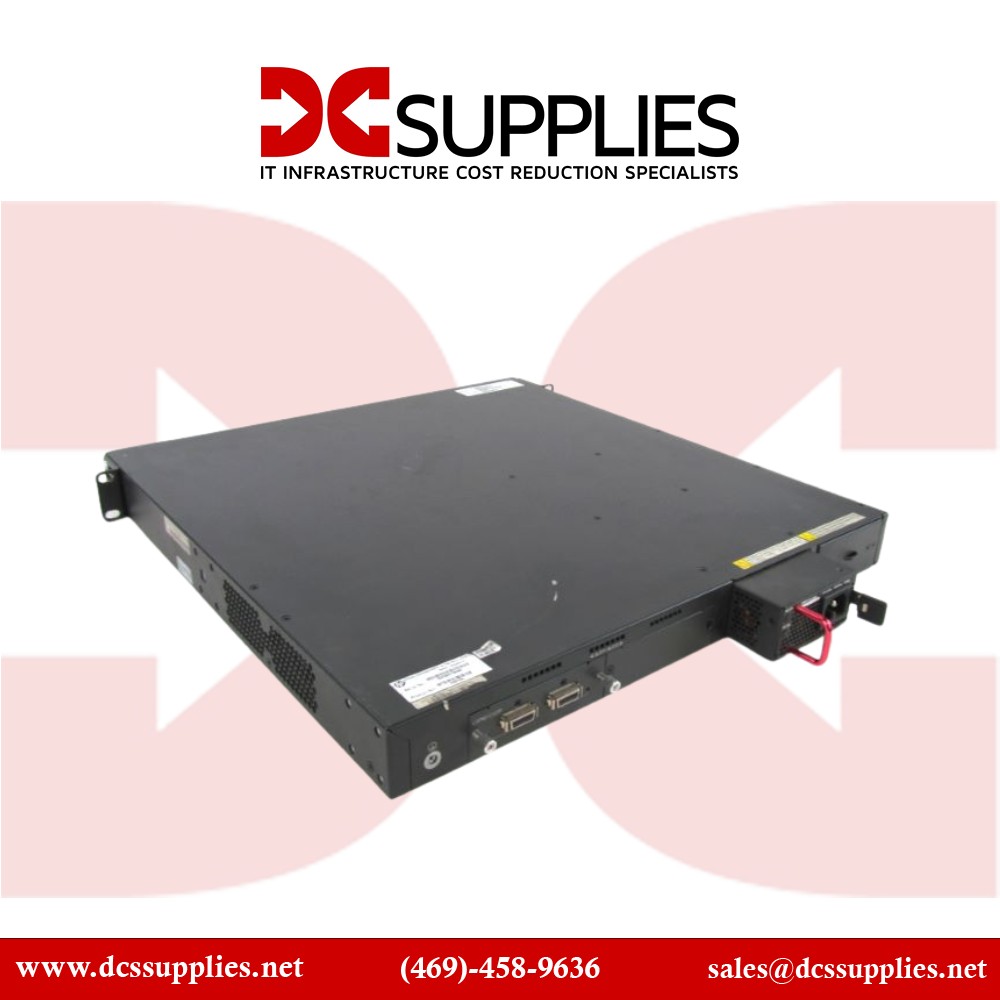

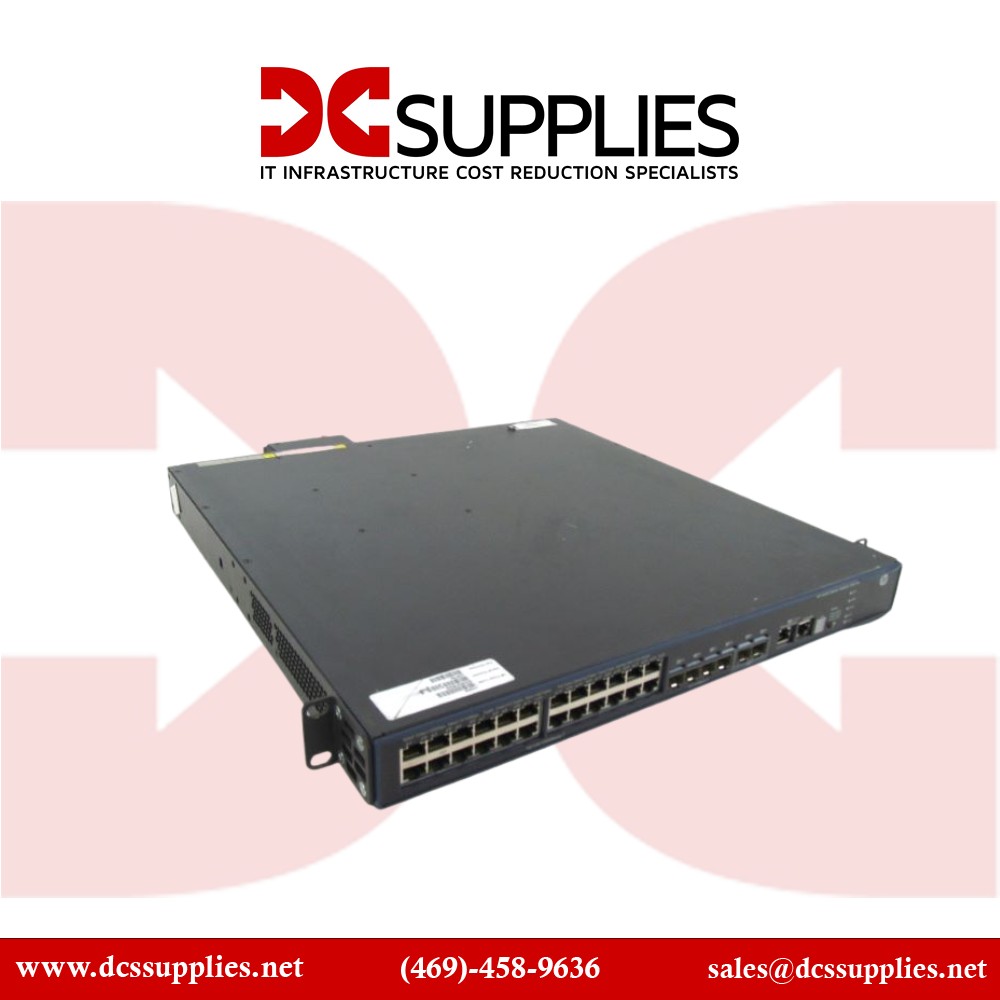

HPE JG250A 5500-24G EI Layer-3 Managed Ethernet Switch
Overview
The HPE JG250A (5500-24G EI) is a rack-mounted, fully managed Layer-3 Ethernet switch with 24 Gigabit RJ-45 ports and two modular expansion slots. It supports static routing, RIP, and OSPF, making it suitable for enterprise access or aggregation layers. The switch offers flexible uplink expansion through its module slots and integrates with HPE's Intelligent Management Center (IMC) for centralized monitoring and configuration. With a 1U form factor and enterprise-grade software features, it meets the requirements of scalable campus and data-center networks.
Key Features
24 × 10/100/1000Base-T autosensing RJ-45 ports
4 dual-personality ports (RJ-45 or SFP) for fiber or copper uplinks
2 modular expansion slots for additional interface modules
Layer-3 routing: static routes, RIP, OSPF
Security: ACLs, 802.1X, MAC filtering
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | JG250A |
| Product Type | Managed Layer-3 Ethernet Switch |
| Access Ports | 24 × 10/100/1000Base-T RJ-45 |
| Personality/Uplink Ports | 4 dual-personality (RJ-45 / SFP) |
| Expansion Slots | 2 modular slots |
| Routing Protocols | Static, RIP, OSPF |
| Memory | 256 MB SDRAM, 32 MB flash |
| Switching Capacity | 144 Gbps |
| Packet Forwarding Rate | 107.2 Mpps |
| MAC Table Size | 32K entries |
| Jumbo Frame Support | Yes (up to 9 KB) |
| Management Interfaces | Web GUI, CLI, SNMP, IMC |
| Power Supply | Internal, supports optional redundant PSU |
| Dimensions (H × W × D in inches) | 1.7 × 17.3 × 11.8 |
| Weight (lbs) | ~14.3 |
| Operating Temperature | 0 °C to 45 °C |
