Detailed Specifications

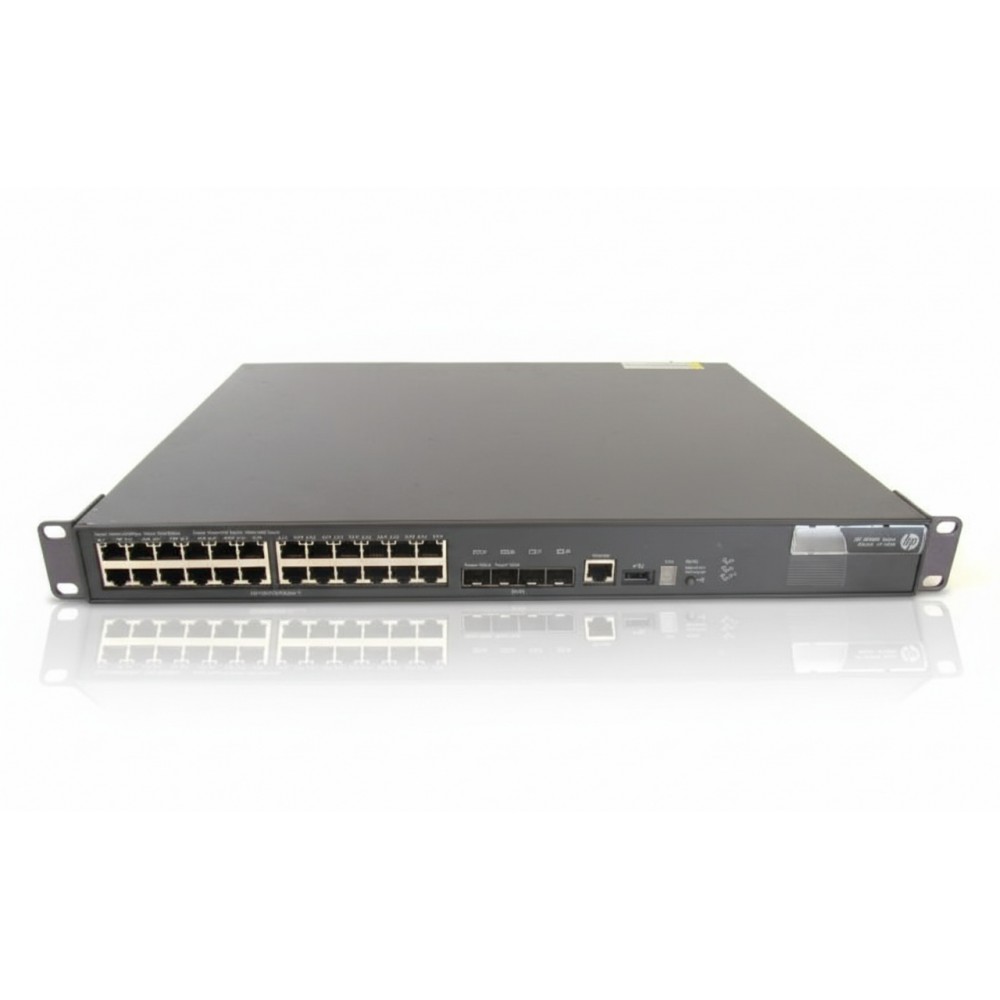

HPE JC100A A5800-24G Layer-3 Flex Fabric Switch
Overview
The HPE JC100A is a 1U Layer-3 managed switch from the A5800-24G family, offering 24 autosensing 10/100/1000 RJ-45 ports and 4 fixed SFP+ uplink ports for 10 Gb connectivity. It supports a rich set of routing protocols (like OSPF, BGP, RIP) and advanced features including QoS, ACLs, and IPv4/IPv6 dual-stack. This switch is suited for enterprise campus or aggregation deployments where both Gigabit access and 10 Gb uplinks are needed. It integrates with HPE's management frameworks for centralized control and high availability.
Key Features
24 × 1 Gb RJ-45 ports + 4 × 10 Gb SFP+ uplinks
Full Layer-3 routing support (OSPF, BGP, RIP, VRRP)
Non-blocking switching fabric with 208 Gb/s capacity
Redundant hot-swappable power supplies and fans
IRF (Intelligent Resilient Framework) support for resiliency
Technical Specifications
| Specification | Details |
|---|
| Brand | HPE |
| Part Number | JC100A |
| Product Type | Layer-3 Managed Switch |
| Model / Series | A5800-24G |
| Fixed Ethernet Ports | 24 × 10/100/1000Base-T |
| Uplink Ports | 4 × SFP+ (1G / 10G) |
| Switching Capacity | 208 Gbps |
| Forwarding Rate | ~155 million pps |
| MAC Address Table Size | 32,000 entries |
| Routing Table (IPv4) | Up to 16,000 entries |
| Packet Buffer | 4 MB |
| Memory | 512 MB SDRAM, 512 MB Flash |
| Management | Web GUI, CLI, SNMP, Telnet, SSH |
| Power Supply | Internal AC, optional redundant PSU |
| Operating Temperature | 0 °C to 45 °C |
| Dimensions (H × W × D) | 1.72 in × 17.32 in × 14.35 in |
| Weight | ~13.23 lb (6 kg) |
