Detailed Specifications

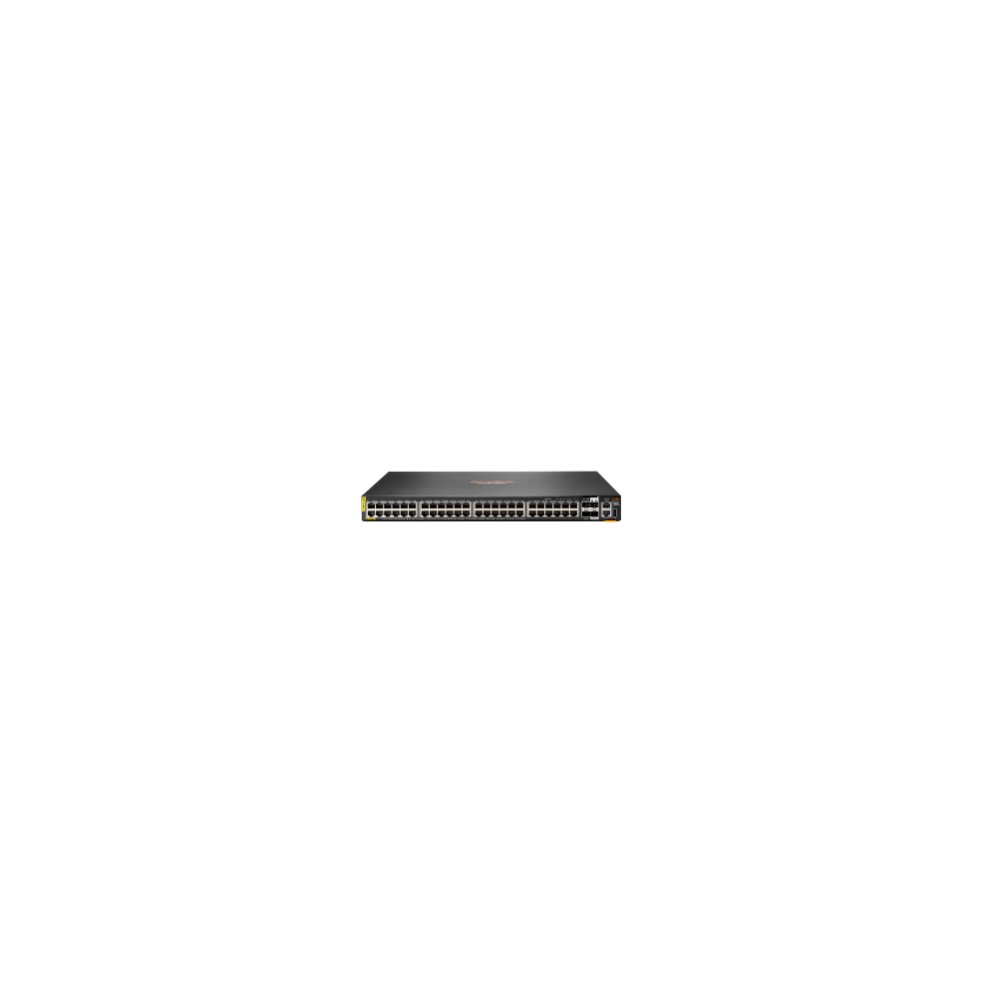

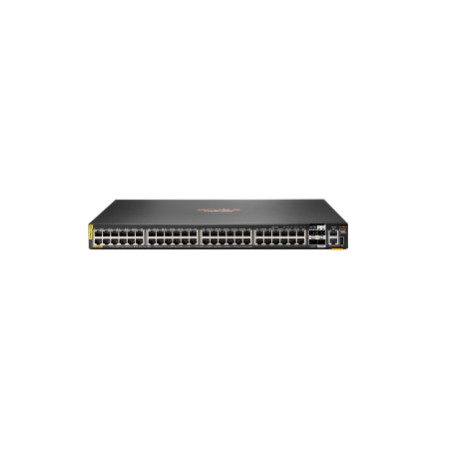

HPE R8Q70-61001 Aruba 6200M-48G Managed Switch
Overview
The HPE R8Q70-61001 is a rack-mount managed switch offering 48 10/100/1000Base-T RJ-45 access ports with Class 4 PoE support and four 1 / 10 Gb SFP+ uplink/stacking ports. It targets network engineers deploying access-layer infrastructure in enterprise or branch environments where dense PoE for wireless APs, IoT devices or IP cameras is required. With full Layer 2 and Layer 3 features, stacking capability and high PoE budget, this switch fits wiring-closet, floor-edge or compact-data-hall roles. It integrates into the Aruba/HPE networking ecosystem, making it suitable for unified campus or branch deployments with consistent management and policy enforcement.
Key Features
48 × 10/100/1000Base-T RJ-45 ports with Class 4 PoE output
Four SFP+ ports supporting 1 Gb or 10 Gb uplink/stacking
Layer 2/3 managed feature set including ACLs, static routing and stacking
High power-over-ethernet budget (Class 4 PoE) for dense endpoint deployments
1U rack form-factor with modular power/fan and stacking support
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | R8Q70-61001 |
| Product Type | Aruba 6200M-48G Managed Access Switch |
| Access Ports | 48 × 10/100/1000Base-T RJ-45 |
| Uplink/Stacking Ports | 4 × SFP+ (1 Gb/10 Gb) |
| PoE Class | Class 4 on all access ports |
| PoE Budget | 1440 W |
| Switching Capacity | 176 Gbps |
| Forwarding Rate (64-byte) | 130.9 Mpps |
| MAC Address Table | 16,000 entries |
| Jumbo Frame Support | Up to 9,220 bytes |
| Stack Members Max | 8 units |
| Supported Protocols | IPv4 & IPv6 static routing, OSPF, ECMP, ACLs |
| Form Factor (H × W × D) | 1.73 in × 17.32 in × ~17.00 in |
| PoE Power Supply Voltage | AC 100-120 / 200-240 V, 50/60 Hz |
