Detailed Specifications

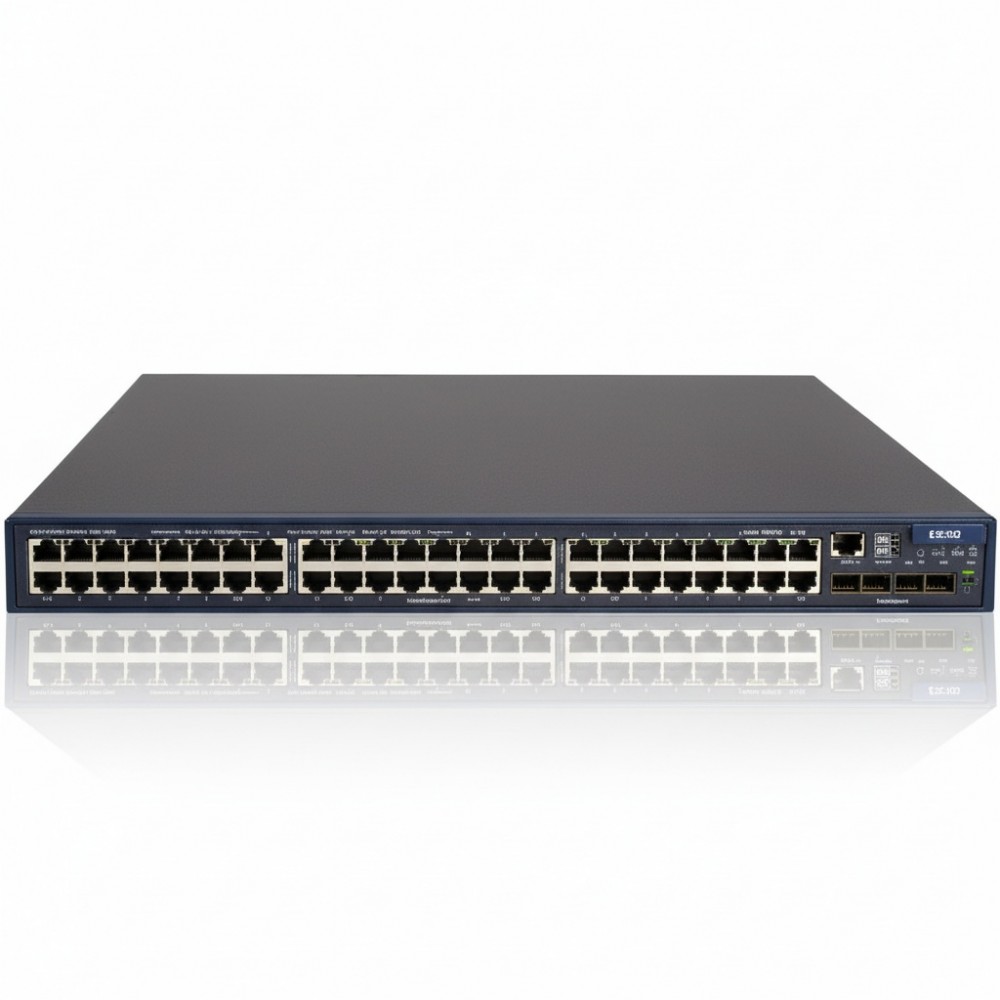

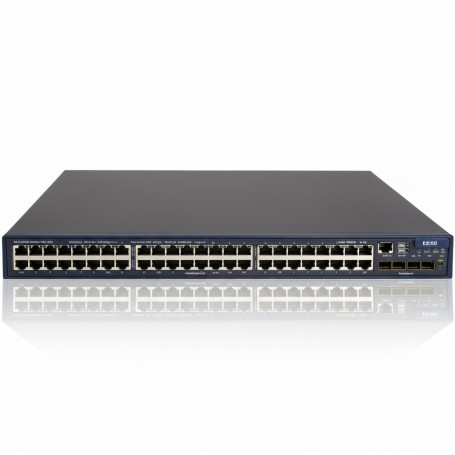

HPE JD327A A3600-48 PoE SI Layer-3 Switch
Overview
The HPE JD327A is a managed edge switch designed for enterprise access layer deployments where 48 10/100Base-T PoE ports and advanced routing and security features are required. It delivers 48 autosensing RJ-45 Fast Ethernet ports with PoE support, plus four 1 GbE SFP uplink slots, allowing connectivity into aggregation or core layers. With support for static and RIP routing, stacking via IRF lite, integrated QoS and advanced security enforcement, it solves issues of pure access switching by bringing access, routing and stackable operations into a single chassis. The unit fits in a standard 1 RU rack and is well suited for wiring-closets, branch access aggregation or campus floor-edge installations, and integrates with the HPE management ecosystem via secure Web GUI, CLI and SNMP. This model supports scalable edge deployments and fits environments where PoE power, layered security and consistent management across access switches are critical.
Key Features
48 × 10/100 Base-T PoE RJ-45 ports
4 × 1 Gb SFP uplink slots for upstream connectivity
Layer 3 routing support including static and RIP protocols
IRF lite stacking and integrated security enforcement
Advanced QoS, VLAN, ACL and link-aggregation support across all ports
Technical Specifications
| Specification | Value |
|---|
| Brand | HPE |
| Part Number | JD327A |
| Product Type | A3600-48 PoE SI Layer-3 Managed Edge Switch |
| Access Ports | 48 × 10/100 Base-T (autosensing) |
| Uplink Slots | 4 × 1 Gb SFP |
| PoE Support | IEEE 802.3af (on all 48 ports) |
| Switching Capacity / Throughput | 17.6 Gbps switching capacity (64-byte packets) |
| Packet Forwarding Rate | Approx. 11.8 million packets/sec (64-byte) |
| Memory | 64 MB SDRAM, 8 MB flash |
| Form Factor (H × W × D) | 1.72 in × 17.32 in × 16.54 in |
| Weight | Approx. 13.67 lbs |
| Operating Temperature | 0 °C to 45 °C |
| Humidity Range | 10% to 90% non-condensing |
| PoE Power Budget | Up to 740 W for PoE in fully loaded scenario |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Standards & Protocols | IEEE 802.3, 802.3u, 802.1Q, 802.1p, 802.1X, LLDP-MED |
| Warranty | Lifetime hardware warranty (advance replacement in many regions) |
